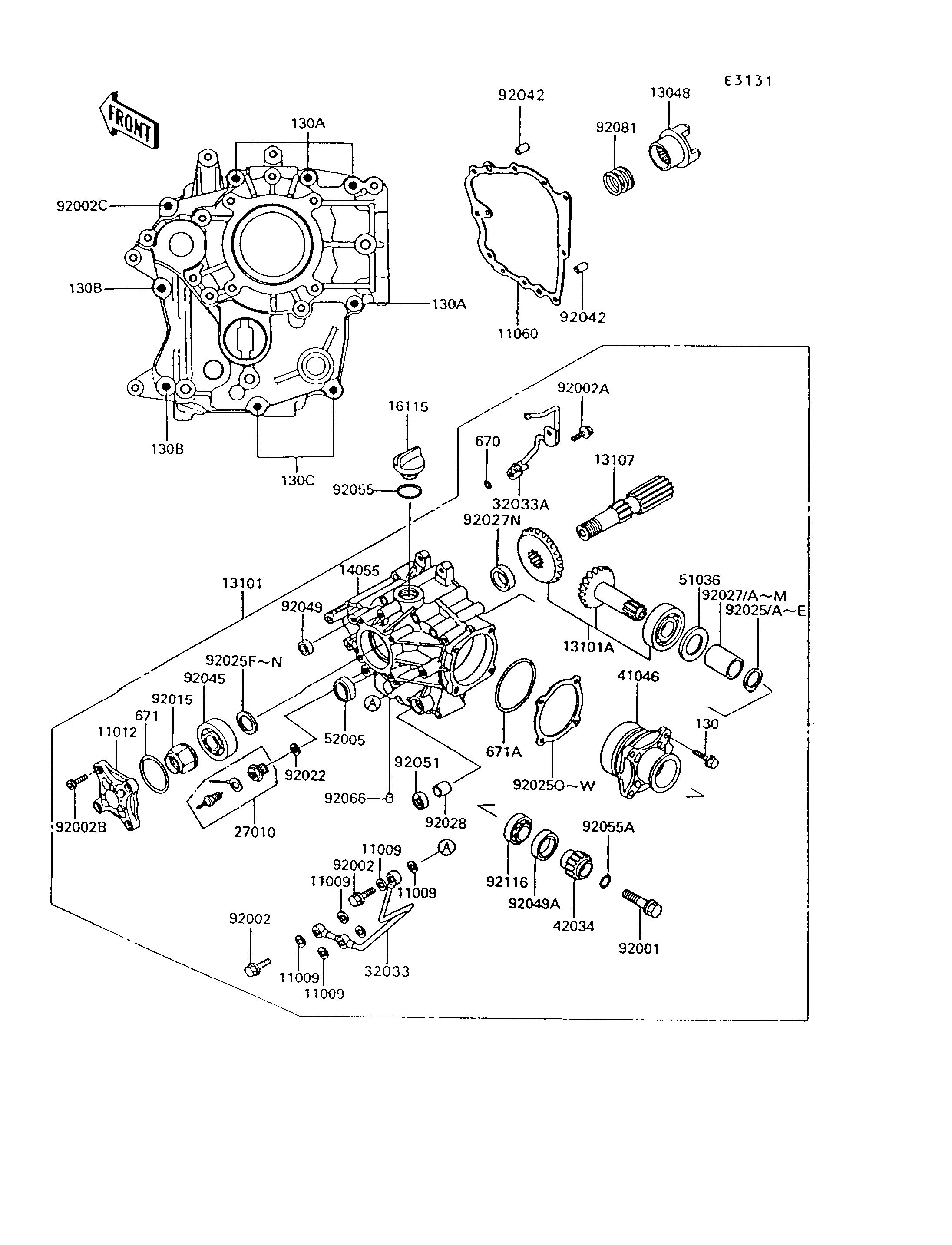

1992 Voyager XII - Front Bevel Gear

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
11009
11009
11009
11009
11009
11009
11009
11009
11012
11012
11060
11060
13048
13048
13101
13101
13101A
13101A
13107
13107
14055
14055
16115
16115
27010
27010
32033
32033
32033A
32033A
41046
41046
42034
42034
51036
51036
52005
52005
92001
92001
92002
92002
92002
92002
92002A
92002A
92002B
92002B
92002C
92002C
92015
92015
92022
92022
92025
92025
92025A
92025A
92025B
92025B
92025C
92025C
92025D
92025D
92025E
92025E
92025F
92025F
92025G
92025G
92025H
92025H
92025I
92025I
92025J
92025J
92025K
92025K
92025L
92025L
92025M
92025M
92025N
92025N
92025O
92025O
92025P
92025P
130
130
130A
130A
130A
130A
130B
130B
130B
130B
130C
130C
670
670
671
671
671A
671A
92025Q
92025Q
92025R
92025R
92025S
92025S
92025T
92025T
92025U
92025U
92025V
92025V
92025W
92025W
92027
92027
92027A
92027A
92027B
92027B
92027C
92027C
92027D
92027D
92027E
92027E
92027F
92027F
92027G
92027G
92027H
92027H
92027I
92027I
92027J
92027J
92027K
92027K
92027L
92027L
92027M
92027M
92027N
92027N
92028
92028
92042
92042
92042
92042
92045
92045
92049
92049
92049A
92049A
92051
92051
92055
92055
92055A
92055A
92066
92066
92081
92081
92116
92116
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,OIL PIPE,8.2X14X1.0 11009 11009-1344 6
CAP,BEARING 11012 11012-1489 1
GASKET,GEAR CASE 11060 11060-1094 1
CAM-DAMPER 13048 13048-1074 1
GEAR-ASSY,FRONT BEVEL 13101 13101-1089 1
GEAR-ASSY,FRONT BEVEL 13101A 13101-5027 1
SHAFT,BEVEL,FR 13107 13107-1263 1
CASE-GEAR,FRONT BEVEL 14055 14055-1066 1
CAP-OIL FILLER 16115 16115-1009 1
SWITCH,OVER DRIVE 27010 27010-1224 1
PIPE,OUTSIDE 32033 32033-1940 1
PIPE,INSIDE 32033A 32033-1941 1
HOUSING-BEARING 41046 41046-1074 1
COUPLING,FR DRIVEN 42034 42034-1091 1
CUP 51036 51036-1002 1
GAUGE,OIL LEVEL 52005 52005-1057 1
BOLT,FLANGED,12X42 92001 92001-1169 1
BOLT,BANJO,8X20 92002 92002-1618 3
BOLT,6X14 92002A 92002-1656 2
BOLT,SOCKET,6X25 92002B 92002-1696 4
BOLT,6X50 92002C 92002-1779 1
NUT,24MM 92015 92015-1554 1
WASHER,16XX22X1.0 92022 92022-1812 1
SHIM,25.2X29.8X1.70 92025 92025-1072 AR
SHIM,25.2X29.8X1.72 92025A 92025-1073 AR
SHIM,25.2X29.8X1.74 92025B 92025-1074 AR
SHIM,25.2X29.8X1.76 92025C 92025-1075 AR
SHIM,25.2X29.8X1.78 92025D 92025-1076 AR
SHIM,25.2X29.8X1.80 92025E 92025-1077 AR
SHIM,25.3X36X0.15 92025F 92025-1688 AR
SHIM,25.3X36X0.50 92025G 92025-1689 AR
SHIM,25.3X36X0.60 92025H 92025-1690 AR
SHIM,25.3X36X0.70 92025I 92025-1691 AR
SHIM,25.3X36X0.80 92025J 92025-1692 AR
SHIM,25.3X36X0.90 92025K 92025-1693 AR
SHIM,25.3X36X1.00 92025L 92025-1694 AR
SHIM,25.3X36X1.10 92025M 92025-1695 AR
SHIM,25.3X36X1.20 92025N 92025-1696 AR
SHIM,T=0.10 92025O 92025-1724 AR
SHIM,T=0.15 92025P 92025-1725 AR
BOLT-FLANGED,6X25 130 130P0625 4
BOLT-FLANGED 130A 130Z06100 4
BOLT-FLANGED 130B 130Z0630 2
BOLT-FLANGED 130C 130Z0650 2
O RING,6MM 670 670B1506 1
O RING,65MM 671 671B2565 1
O RING 671A 671B2575 1
SHIM,T=0.50 92025Q 92025-1726 AR
SHIM,T=0.60 92025R 92025-1727 AR
SHIM,T=0.70 92025S 92025-1728 AR
SHIM,T=0.80 92025T 92025-1729 AR
SHIM,T=0.90 92025U 92025-1730 AR
SHIM,T=1.00 92025V 92025-1731 AR
SHIM,T=1.20 92025W 92025-1732 AR
COLLAR,25.2X29.8X22.8 92027 92027-1152 AR
COLLAR,25.2X29.8X22.9 92027A 92027-1153 AR
COLLAR,25.2X29.8X23 92027B 92027-1154 AR
COLLAR,25.2X29.8X23.1 92027C 92027-1155 AR
COLLAR,25.2X29.8X23.2 92027D 92027-1156 AR
COLLAR,25.2X29.8X23.3 92027E 92027-1157 AR
COLLAR,25.2X29.8X23.4 92027F 92027-1158 AR
COLLAR,25.2X29.8X23.5 92027G 92027-1159 AR
COLLAR,25.2X29.8X23.6 92027H 92027-1160 AR
COLLAR,25.2X29.8X23.7 92027I 92027-1161 AR
COLLAR,25.2X29.8X23.8 92027J 92027-1162 AR
COLLAR,25.2X29.8X23.9 92027K 92027-1163 AR
COLLAR,25.2X29.8X24 92027L 92027-1164 AR
COLLAR,25.2X29.8X24.1 92027M 92027-1165 AR
COLLAR,25.3X36X10 92027N 92027-1968 1
BUSHING,13X15X20 92028 92028-1251 1
PIN,DOWEL,6.3X8X14 92042 92042-007 2
BEARING-BALL,6305C2 92045 92045-1165 1
SEAL-OIL,SD-8187 92049 92049-1017 1
SEAL-OIL,TC35527 92049A 92049-1038 1
SEAL-OIL,TB13225.5 92051 92051-005 1
RING-O,31.5X2.6 92055 92055-049 1
RING-O,ID=18.64 92055A 92055-1044 1
PLUG,OIL LINE,7.2X8 92066 92066-1012 1
SPRING,CAM DAMPER 92081 92081-1859 1
BEARING-ROLLER,4T30205 92116 92116-1003 1
