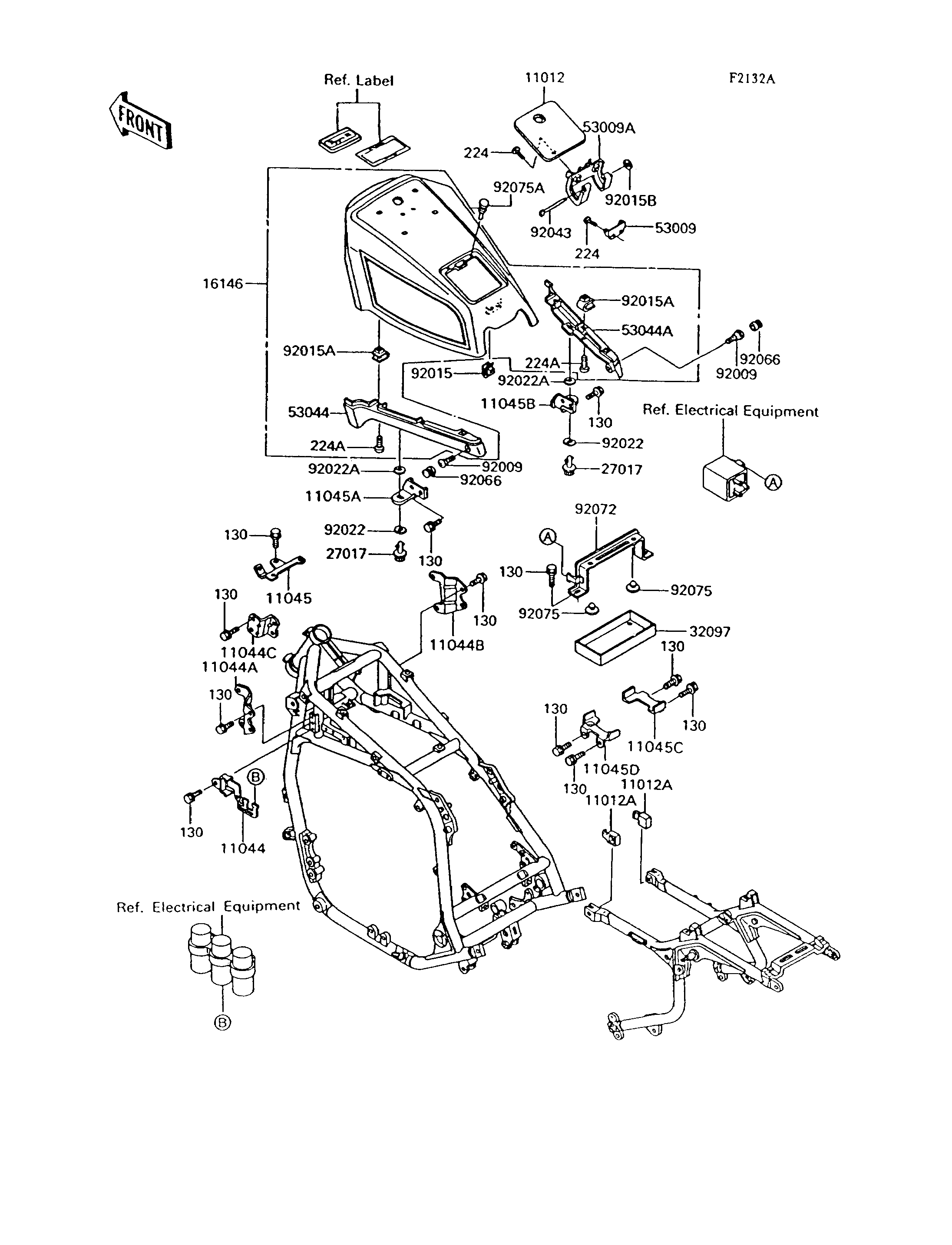

1994 Voyager XII - Battery Case(ZG1200-B8/B9)

DOWNLOAD PDF
SELECT A NEW PART
130
130
130
130
130
130
130
130
130
130
130
130
224
224
224A
224A
11012
11012A
11012A
11044
11044A
11044B
11044C
11045
11045A
11045B
11045C
11045D
16146
27017
27017
32097
53009
53009A
53044
53044A
92009
92009
92015
92015A
92015A
92015B
92022
92022
92022A
92022A
92043
92066
92066
92072
92075
92075
92075A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10 130 130B0610 17
SCREW-PAN-WP-CROS 224 224B0512 4
SCREW-PAN-WP-CROS 224A 224B0516 6
CAP,DUMMY TANK,P.T.GREEN 11012 11012-1492-TZ 1
CAP 11012A 11012-1542 2
BRACKET,RELAY 11044 11044-1683 1
BRACKET,IGNITION COIL,LH 11044A 11044-1684 1
BRACKET,IGNITION COIL,RH 11044B 11044-1685 1
BRACKET,THERMOSTAT 11044C 11044-1686 1
BRACKET,FUSE 11045 11045-1056 1
BRACKET,DUMMY TANK,LH 11045A 11045-1077 1
BRACKET,DUMMY TANK,RH 11045B 11045-1078 1
BRACKET,BATTERY,RH 11045C 11045-1297 1
BRACKET,BATTERY,LH 11045D 11045-1729 1
COVER-ASSY,DUMMY TANK,GRN/GRN 16146 16146-1082-SX 1
LOCK,DUMMY TANK 27017 27017-1124 2
CASE-BATTERY 32097 32097-1126 1
HINGE,DUMMY TANK 53009 53009-1060 1
HINGE,DUMMY TANK CAP 53009A 53009-1066 1
TRIM,DUMMY TANK,LH,P.T.GREEN 53044 53044-1138-TZ 1
TRIM,DUMMY TANK,RH,P.T.GREEN 53044A 53044-1139-TZ 1
SCREW 92009 92009-1258 2
NUT,5MM 92015 92015-1569 2
NUT,5MM 92015A 92015-1573 6
NUT,PUSH,2.6MM 92015B 92015-1576 1
WASHER,WAVE,8MM 92022 92022-1776 2
WASHER,6.5MM 92022A 92022-1808 2
PIN,2.6X88 92043 92043-1306 1
PLUG 92066 92066-1243 2
BAND,BATTERY 92072 92072-1194 1
DAMPER,RUBBER 92075 92075-078 2
DAMPER 92075A 92075-1808 2
