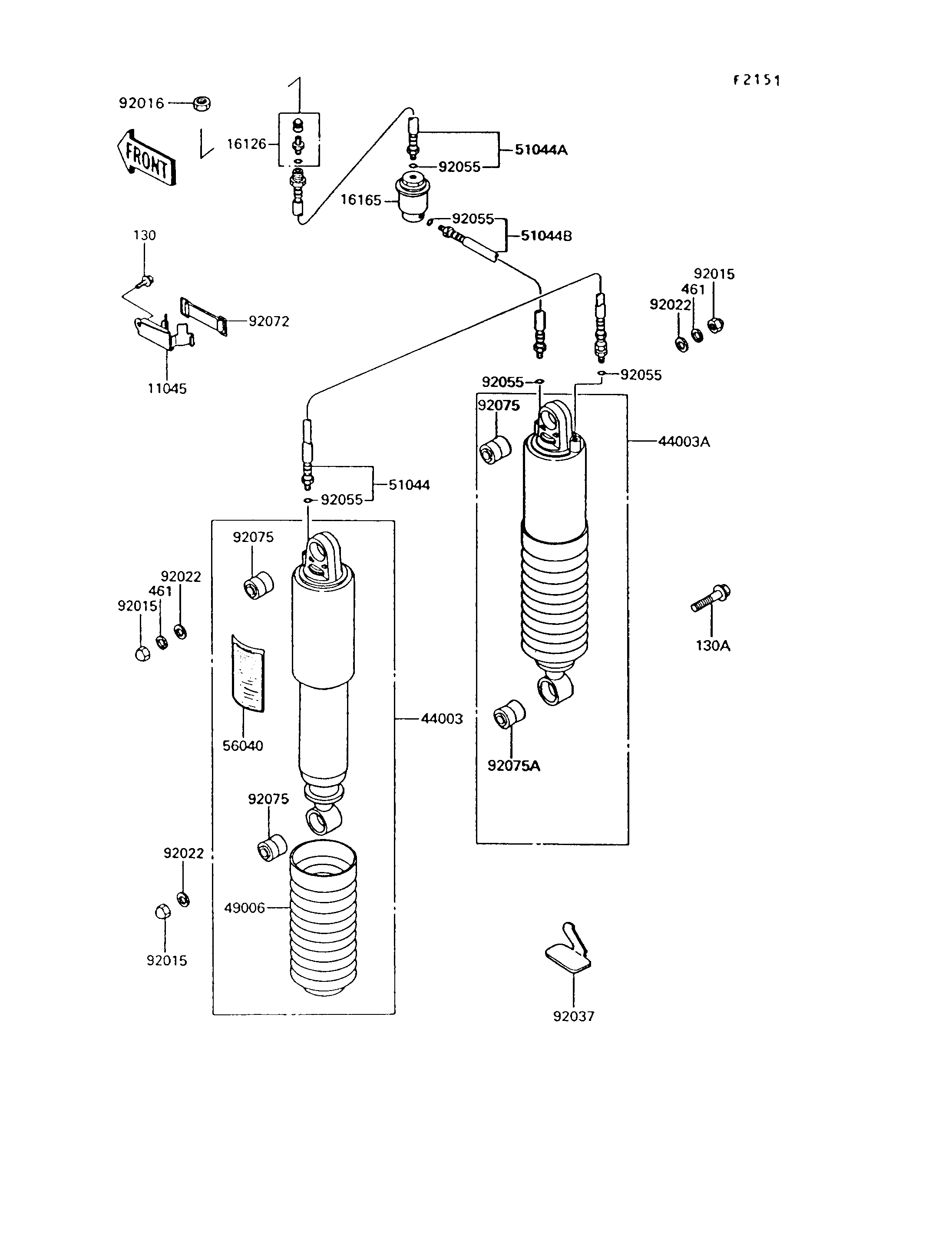

1992 Voyager XII - Suspension/Shock Absorber

DOWNLOAD PDF
SELECT A NEW PART
130
130A
461
461
11045
16126
16165
44003
44003A
49006
51044
51044A
51044B
56040
92015
92015
92015
92016
92022
92022
92022
92037
92055
92055
92055
92055
92055
92072
92075
92075
92075
92075A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10 130 130B0610 1
BOLT-FLANGED,10X35 130A 130J1035 1
WASHER-SPRING,10MM,BLACK 461 461K1000 2
BRACKET,SEPARATOR 11045 11045-1245 1
VALVE,AIR 16126 16126-1029 1
SEPARATOR 16165 16165-1056 1
DAMPER-ASSY,SHOCKABSORBER,LH 44003 44003-1682 1
DAMPER-ASSY,SHOCKABSORBER,RH 44003A 44003-1683 1
BOOT,SHOCKABSORBER,BLACK 49006 49006-1092 2
TUBE-ASSY,SHOCKABSORBER 51044 51044-1079 1
TUBE-ASSY,SHOCKABSORBER 51044A 51044-1080 1
TUBE-ASSY,SHOCKABSORBER 51044B 51044-1081 1
LABEL-WARNING 56040 56040-1030 1
NUT,CAP,10MM,BLACK 92015 92015-1203 3
NUT,14MM 92016 92016-044 1
WASHER,10.5X30X2.3,BLACK 92022 92022-1302 3
CLAMP,HARNESS 92037 92037-1820 3
RING-O,FORK 92055 92055-1100 5
BAND,L=50 92072 92072-066 1
DAMPER,SHOCKABSORBER 92075 92075-1141 3
DAMPER,SHOCKABSORBER 92075A 92075-1586 1
