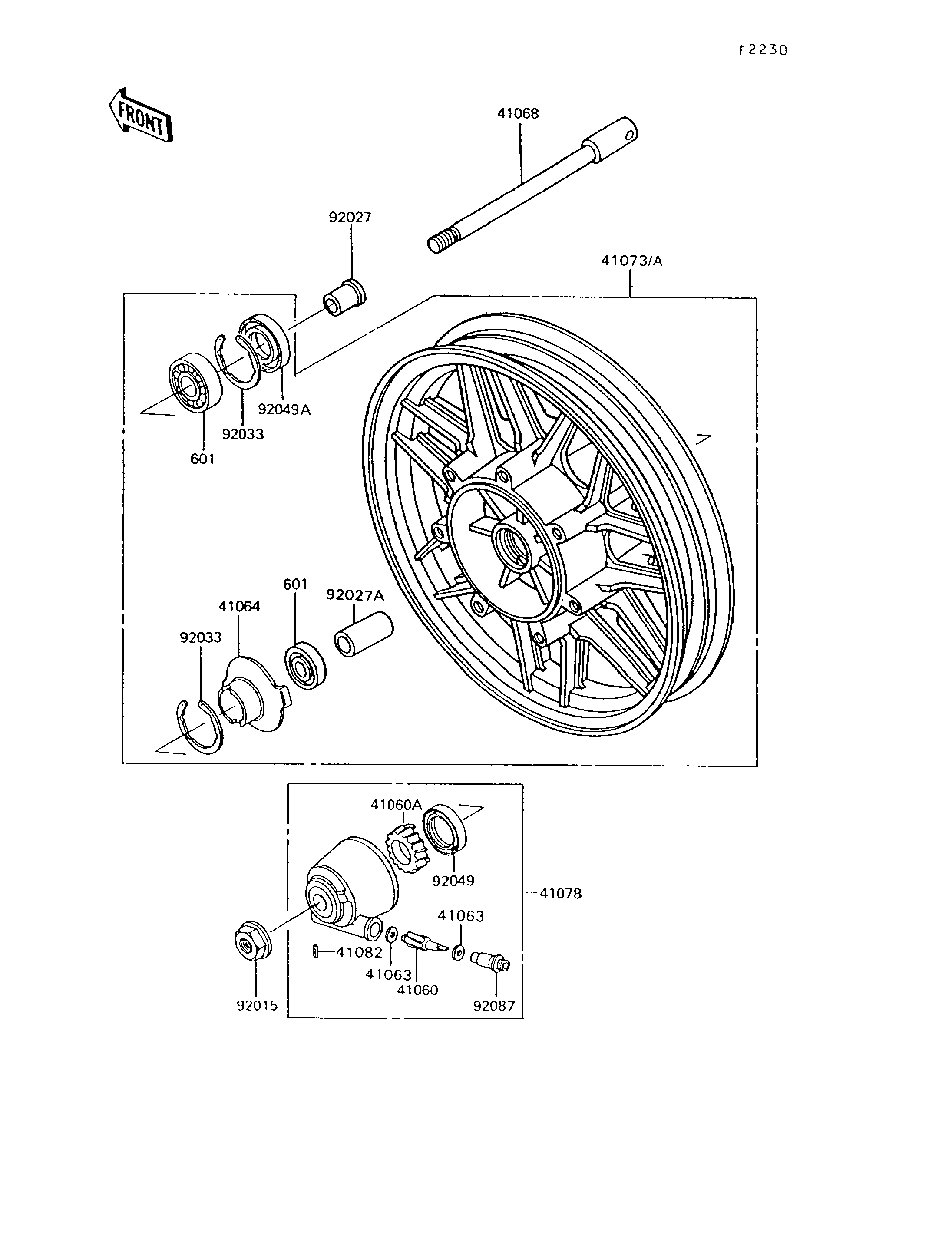

Parts Diagrams |
601
601
41060
41060A
41063
41063
41064
41068
41073
41078
41082
92015
92027
92027A
92033
92033
92049
92049A
92087
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BEARING-BALL,#6302UG | 601 | 601B6302UG | 2 | ||
| GEAR-METER SCREW,9T | 41060 | 41060-1016 | 1 | ||
| GEAR-METER SCREW,25T | 41060A | 41060-1041 | 1 | ||
| WASHER,5.1X9X0.4 | 41063 | 41063-001 | 2 | ||
| RECEIVER-SPEEDOMETER | 41064 | 41064-1006 | 1 | ||
| AXLE,FR | 41068 | 41068-1199 | 1 | ||
| WHEEL-ASSY,FR,M.GRAY NO.1 | 41073 | 41073-1424-V8 | 1 | ||
| CASE-ASSY-METER GEAR | 41078 | 41078-1064 | 1 | ||
| PIN,SPRING | 41082 | 41082-001 | 1 | ||
| NUT,14MM | 92015 | 92015-1407 | 1 | ||
| COLLAR,L=30 | 92027 | 92027-1225 | 1 | ||
| COLLAR,15.2X22X76 | 92027A | 92027-1921 | 1 | ||
| RING-SNAP,42MM | 92033 | 92033-1041 | 2 | ||
| SEAL-OIL,BJN30427-C3 | 92049 | 92049-1057 | 1 | ||
| SEAL-OIL,BJN22425 | 92049A | 92049-1058 | 1 | ||
| BUSHING-METER GEAR | 92087 | 92087-1002 | 1 |
