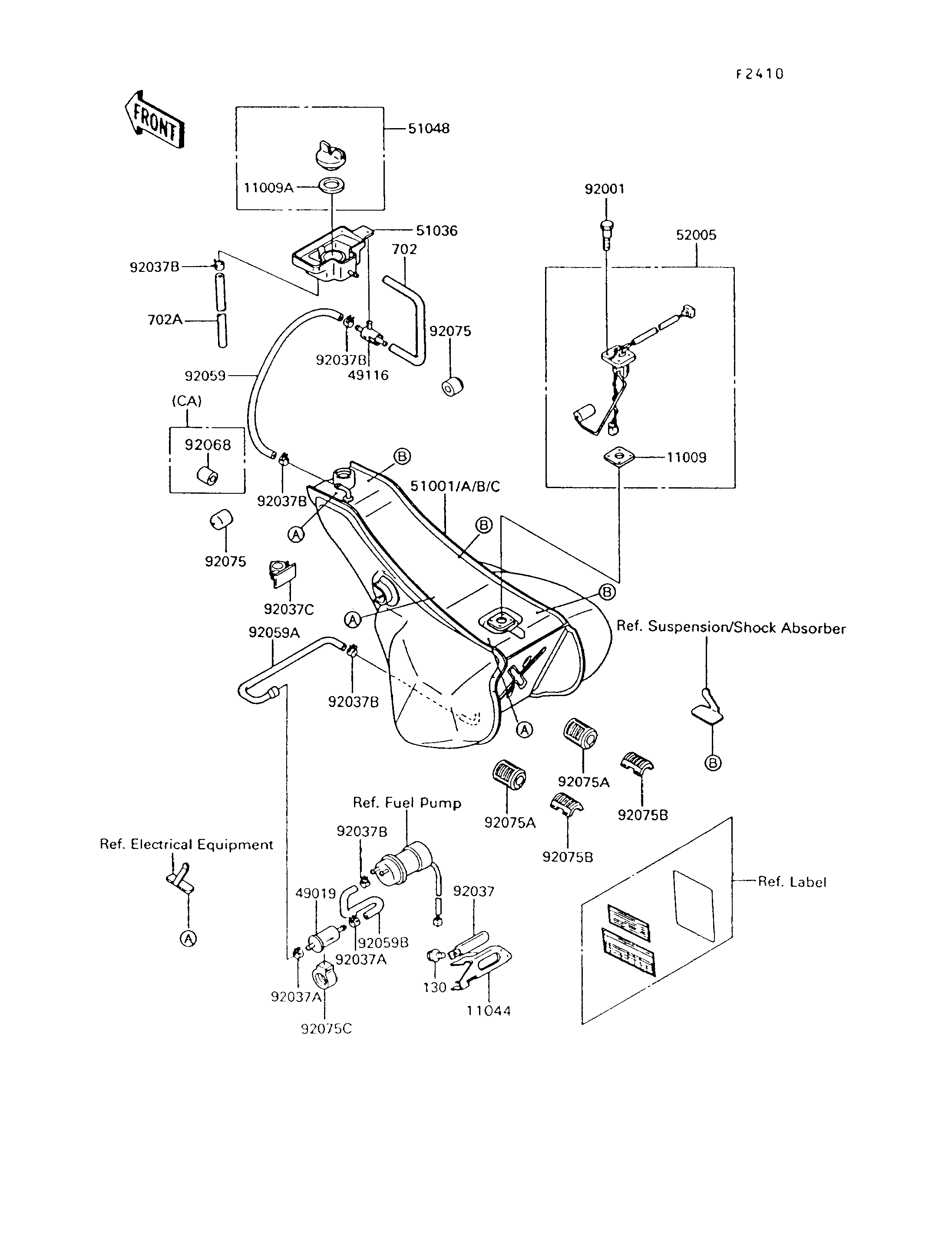

1992 Voyager XII - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
130
702A
11009
11009A
11044
49019
49116
51036
51048
52005
92001
92037
92037A
92037A
92037B
92037B
92037B
92037B
92037B
92037C
92059
92059A
92059B
92075
92075
92075A
92075A
92075B
92075B
92075C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10 130 130B0610 2
TUBE-RUBBER,7X720 702A 702A07720 1
GASKET,TANK CAP 11009 11009-1326 1
GASKET,FUEL GAUGE 11009A 11009-1656 1
BRACKET,FUEL FILTER 11044 11044-1743 1
FILTER-FUEL 49019 49019-1055 1
VALVE-ASSY,BREATHER 49116 49116-1063 1
CUP,FUEL TANK 51036 51036-1054 1
CAP-ASSY-TANK,FUEL 51048 51048-1070 1
GAUGE,FUEL 52005 52005-1076 1
BOLT,FUEL GAUGE 92001 92001-1705 4
CLAMP,WIRING HARNESS 92037 92037-1069 1
CLAMP 92037A 92037-1181 2
CLAMP,TUBE 92037B 92037-1505 5
CLAMP,TUBE 92037C 92037-1794 2
TUBE,5.8X11.5X260 92059 92059-1392 1
TUBE 92059A 92059-1724 1
TUBE 92059B 92059-1725 1
DAMPER,FUEL TANK 92075 92075-044 2
DAMPER,FUEL TANK 92075A 92075-084 2
DAMPER,FUEL TANK 92075B 92075-1806 2
DAMPER,FUEL FILTER 92075C 92075-1853 1
TUBE-RUBBER,5X170 702 702A05170 1 US
TANK-COMP-FUEL 51001 51001-1233 1 US
TANK-COMP-FUEL 51001A 51001-1239 1 CA
PLUG,12X25 92068 92068-006 1 CA
