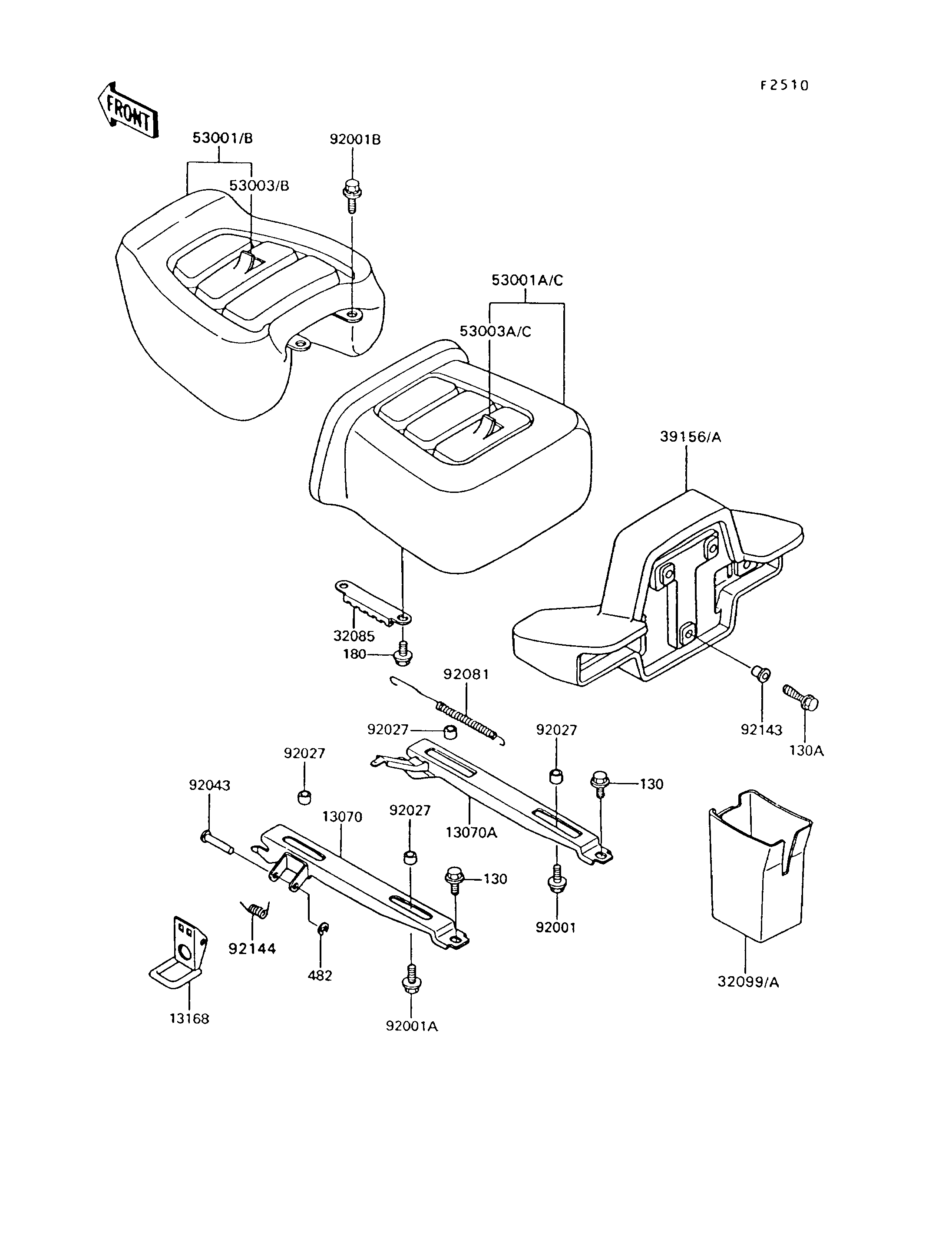

1992 Voyager XII - Seat

DOWNLOAD PDF
SELECT A NEW PART
130
130
130A
180
482
13070
13070A
13168
32085
32099A
39156
53001
53001A
53003
53003A
92001
92001A
92001B
92027
92027
92027
92027
92043
92081
92143
92144
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10 130 130B0610 2
BOLT-FLANGED,6X20 130A 130C0620 7
BOLT-UPSET-WS,6X12 180 180B0612 2
CIRCLIP-TYPE-E,5MM 482 482L5000 1
GUIDE,REAR SEAT,LH 13070 13070-1147 1
GUIDE,REAR SEAT,RH 13070A 13070-1148 1
LEVER,REAR SEAT 13168 13168-1302 1
STOPPER,SEAT 32085 32085-1248 1
CASE,REAR AUDIO CONTROL,BLACK 32099A 32099-1091-MA 1
PAD,SEAT,BLACK 39156 39156-1061-MA 1
SEAT-ASSY,FR,BLACK 53001 53001-1447-MA 1
SEAT-ASSY,RR,BLACK 53001A 53001-1489-MA 1
LEATHER,FRONT SEAT,BLACK 53003 53003-1153-MA 1
LEATHER,REAR SEAT,BLACK 53003A 53003-1154-MA 1
BOLT,6X20 92001 92001-1826 2
BOLT,W/P,6X16 92001A 92001-1860 2
BOLT,W/SP,6X14 92001B 92001-1862 2
COLLAR,6.3X10X5 92027 92027-164 4
PIN,6X35.3 92043 92043-1109 1
SPRING,SEAT RETURN 92081 92081-1950 1
COLLAR,L=6.5 92143 92143-1025 7
SPRING,SEAT LEVER 92144 92144-1038 1
