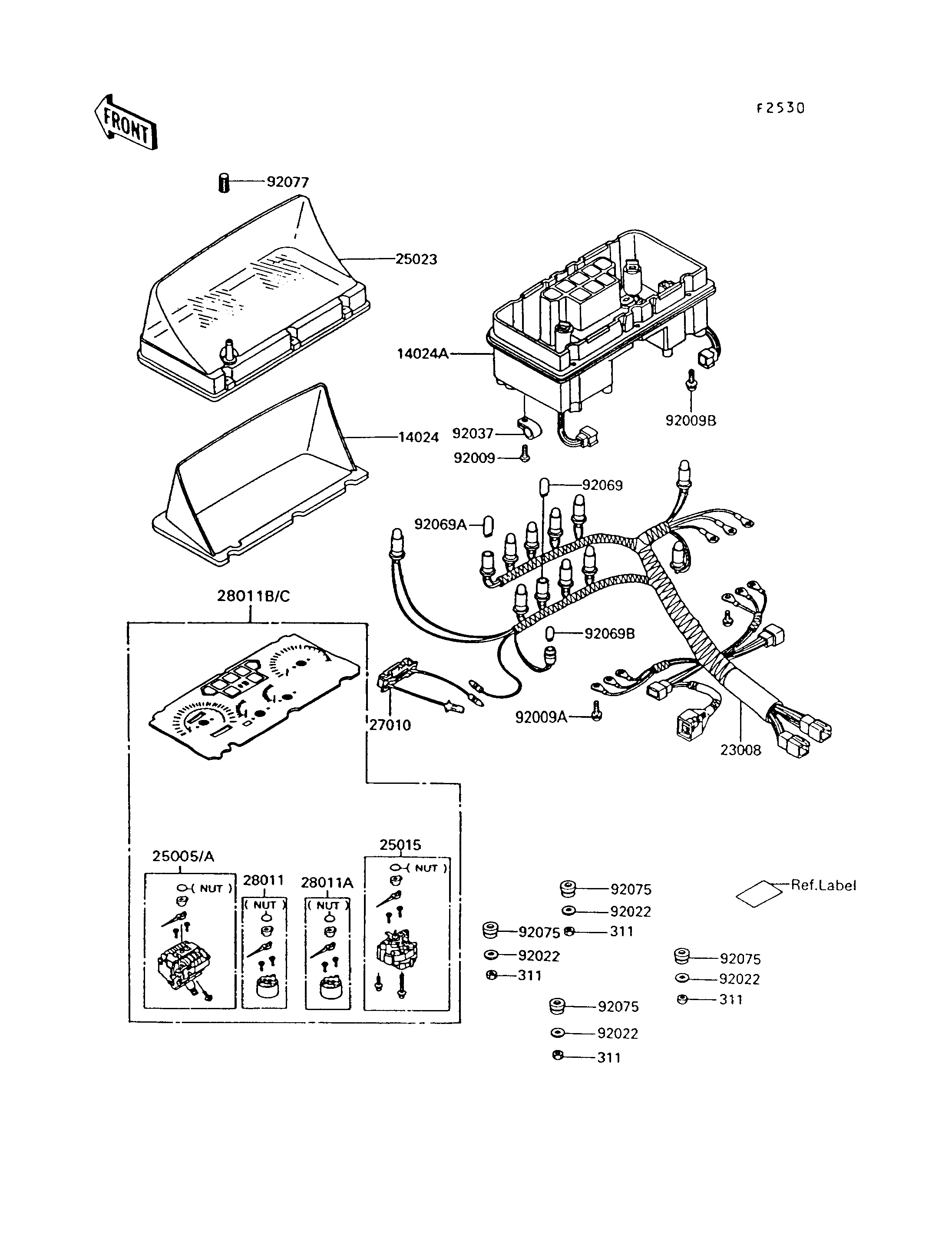

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
311
311
311
311
14024
14024A
23008
25005
25015
25023
27010
28011
28011A
28011B
92009
92009A
92009B
92022
92022
92022
92022
92037
92069
92069A
92069B
92075
92075
92075
92075
92077
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| NUT-HEX | 311 | 311B0500 | 4 | ||
| COVER,METER,UPP | 14024 | 14024-1179 | 1 | ||
| COVER,METER,LWR | 14024A | 14024-1180 | 1 | ||
| SOCKET-ASSY,METER | 23008 | 23008-1344 | 1 | ||
| SPEEDOMETER,MPH | 25005 | 25005-1323 | 1 | ||
| TACHOMETER,X1000R/MIN | 25015 | 25015-1255 | 1 | ||
| COVER-METER CASE,UPP | 25023 | 25023-1133 | 1 | ||
| SWITCH,METER | 27010 | 27010-1231 | 1 | ||
| METER,FUEL | 28011 | 28011-1079 | 1 | ||
| METER,TEMP | 28011A | 28011-1082 | 1 | ||
| METER,FACE PLATE(MPH) | 28011B | 28011-1112 | 1 | ||
| SCREW,TAPPING,4X16 | 92009 | 92009-1163 | 1 | ||
| SCREW,3X22 | 92009A | 92009-1293 | 6 | ||
| SCREW,3X10 | 92009B | 92009-1382 | 6 | ||
| WASHER,5.2X16X1.2 | 92022 | 92022-263 | 4 | ||
| CLAMP,CODE | 92037 | 92037-1769 | 1 | ||
| BULB,12V 3.4W | 92069 | 92069-1007 | 11 | ||
| BULB,12V3W T-7 | 92069A | 92069-1020 | 1 | ||
| BULB,12V 1.7W | 92069B | 92069-1059 | 1 | ||
| DAMPER | 92075 | 92075-1805 | 4 | ||
| KNOB,RESET TRIP | 92077 | 92077-1017 | 1 |
| NUT-HEX | |
| REF # | 311 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COVER,METER,UPP | |
| REF # | 14024 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,METER,LWR | |
| REF # | 14024A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SOCKET-ASSY,METER | |
| REF # | 23008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPEEDOMETER,MPH | |
| REF # | 25005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TACHOMETER,X1000R/MIN | |
| REF # | 25015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-METER CASE,UPP | |
| REF # | 25023 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SWITCH,METER | |
| REF # | 27010 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| METER,FUEL | |
| REF # | 28011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| METER,TEMP | |
| REF # | 28011A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| METER,FACE PLATE(MPH) | |
| REF # | 28011B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,4X16 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,3X22 | |
| REF # | 92009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| SCREW,3X10 | |
| REF # | 92009B |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| WASHER,5.2X16X1.2 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CLAMP,CODE | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BULB,12V 3.4W | |
| REF # | 92069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 11 |
| DESTINATION | |
| REMARKS | |
| BULB,12V3W T-7 | |
| REF # | 92069A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BULB,12V 1.7W | |
| REF # | 92069B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| KNOB,RESET TRIP | |
| REF # | 92077 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
