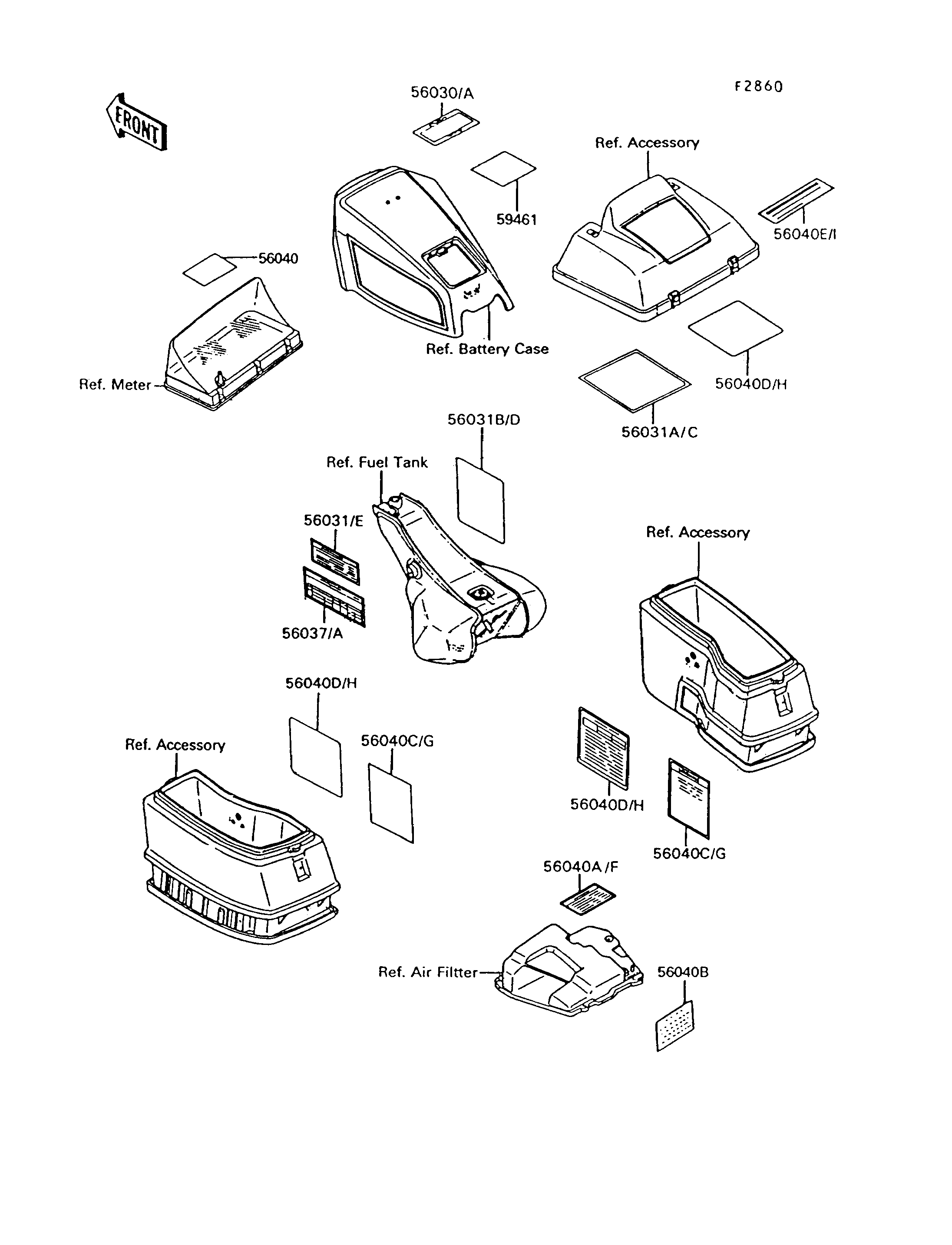

56030
56031
56031A
56031B
56037
56040
56040A
56040C
56040C
56040D
56040D
56040D
56040E
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL,RIDING & SAFETY 56030 56030-1087 1
LABEL-MANUAL,OIL & OIL FILTER 56031 56031-1465 1
LABEL-MANUAL,DAILY SAFETY 56031A 56031-1466 1
LABEL-MANUAL,BATTERY VENT 56031B 56031-1467 1
LABEL-SPECIFICATION,TIRE&LOAD 56037 56037-1383 1
LABEL-WARNING,BREAK IN CAUTION 56040 56040-1007 1
LABEL-WARNING,AIR INTAKE 56040A 56040-1014 1
LABEL-WARNING,SIDE BAG 56040C 56040-1171 2
LABEL-WARNING,MAXIMUM LOAD 56040D 56040-1202 3
LABEL-WARNING,MAXIMUM LOAD 56040E 56040-1222 1
LABEL-WARNING,EVAPO 56040B 56040-1170 1 CA
LABEL-CERTIFICATION,EVAPO ROUT 59461 59461-1700 1 CA
