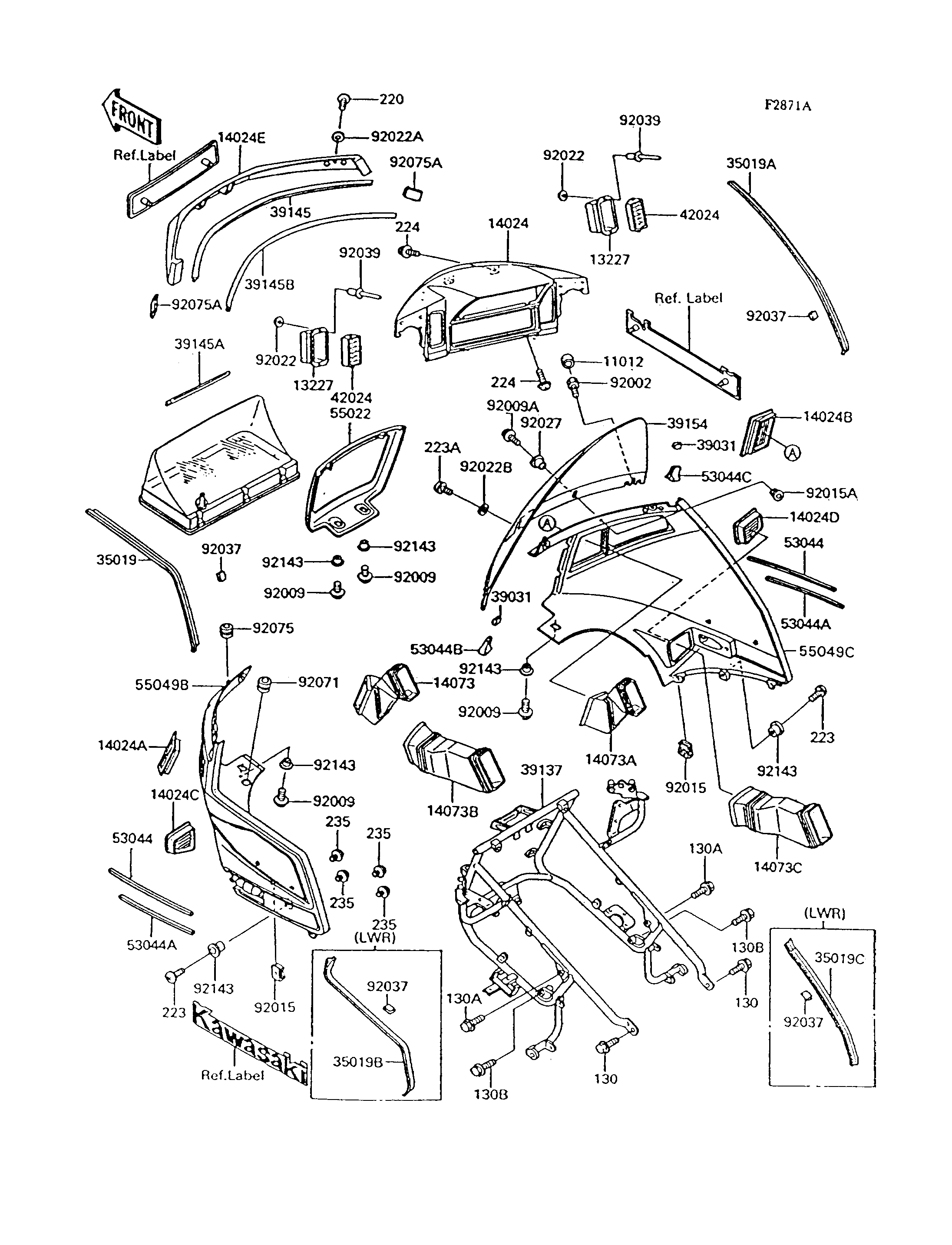

1994 Voyager XII - Cowling(ZG1200-B8/B9)

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
13227
13227
13227
13227
14024
14024
14024A
14024A
14024B
14024B
14024C
14024C
14024D
14024D
14024E
14024E
14073
14073
14073A
14073A
14073B
14073B
14073C
14073C
35019
35019
35019A
35019A
35019B
35019B
35019C
35019C
39031
39031
39031
39031
39137
39137
39145
39145
39145A
39145A
39145B
39145B
39154
39154
42024
42024
42024
42024
53044
53044
53044
53044
53044A
53044A
53044A
53044A
53044B
53044B
53044C
53044C
55022
55022
55049B
55049B
55049C
55049C
92002
92002
92009
92009
92009
92009
92009
92009
92009
92009
130
130
130
130
130A
130A
130A
130A
130B
130B
130B
130B
220
220
223
223
223
223
223A
223A
224
224
224
224
235
235
235
235
235
235
235
235
92009A
92009A
92015
92015
92015
92015
92015A
92015A
92022
92022
92022
92022
92022A
92022A
92022B
92022B
92027
92027
92037
92037
92037
92037
92037
92037
92037
92037
92039
92039
92039
92039
92071
92071
92075
92075
92075A
92075A
92075A
92075A
92143
92143
92143
92143
92143
92143
92143
92143
92143
92143
92143
92143
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1550 2
HOUSING,SHUTTER 13227 13227-1012 2
COVER,METER 14024 14024-1186 1
COVER,LOUVER,UPP,LH 14024A 14024-1192 1
COVER,LOUVER,UPP,RH 14024B 14024-1193 1
COVER,LOUVER,LWR,LH 14024C 14024-1194 1
COVER,LOUVER,LWR,RH 14024D 14024-1195 1
COVER,WINDSHIELD 14024E 14024-1280 1
DUCT,COWLING,UPP,LH 14073 14073-1245 1
DUCT,COWLING,UPP,RH 14073A 14073-1246 1
DUCT,COWLING,LWR,LH 14073B 14073-1247 1
DUCT,COWLING,LWR,RH 14073C 14073-1248 1
FLAP,UPP,LH,P.T.GREEN 35019 35019-1201-TZ 1
FLAP,UPP,RH,P.T.GREEN 35019A 35019-1202-TZ 1
FLAP,LWR,LH,P.T.GREEN 35019B 35019-1203-TZ 1
FLAP,LWR,RH,P.T.GREEN 35019C 35019-1204-TZ 1
CAP-END,TRIM 39031 39031-1058 2
STAY-COMP,COWLING 39137 39137-1057 1
TRIM-SEAL,WINDSHIELD COVER 39145 39145-1072 1
TRIM-SEAL,METER COVER 39145A 39145-1081 1
TRIM-SEAL,METER COVER 39145B 39145-1082 1
WINDSHIELD 39154 39154-1126 1
SHUTTER,LOUVER 42024 42024-1002 2
TRIM,COWLING SIDE,UPP 53044 53044-1150 2
TRIM,COWLING SIDE,LWR 53044A 53044-1151 2
TRIM,WINDSHIELD,LH 53044B 53044-1181 1
TRIM,WINDSHIELD,RH 53044C 53044-1182 1
COVER-HEAD LAMP,P.T.GREEN 55022 55022-1054-TZ 1
COWLING.,UPP,LH,GRN/GRN/BLK 55049B 55049-5287-84 1
COWLING.,UPP,RH,GRN/GRN/BLK 55049C 55049-5288-84 1
BOLT,6X25 92002 92002-1830 2
SCREW,6X18,BLACK 92009 92009-1181 4
BOLT-FLANGED 130 130D0812 2
BOLT-FLANGED,8X35 130A 130D0835 2
BOLT-FLANGED,8X50 130B 130D0850 2
SCREW-PAN-CROS 220 220B0510 2
SCREW-PAN-WS-CROS 223 223C0616 2
SCREW-PAN-WS-CROS,6X25 223A 223C0625 2
SCREW-PAN-WP-CROS 224 224C0510 4
SCREW-PAN-WP-CROS 235 235B0408 8
SCREW,5X14 92009A 92009-1427 2
NUT,5MM,COWLING 92015 92015-1343 2
NUT,5MM 92015A 92015-1710 4
WASHER,3.3X8X0.5 92022 92022-1516 4
WASHER,5.3X10X0.8 92022A 92022-1653 2
WASHER,6.5MM 92022B 92022-1808 2
COLLAR,L=11.1 92027 92027-194 4
CLAMP,FLAP 92037 92037-1943 18
RIVET 92039 92039-1041 4
GROMMET,AIR FILTER 92071 92071-1042 1
DAMPER 92075 92075-1629 2
DAMPER 92075A 92075-1883 2
COLLAR,L=6.5 92143 92143-1025 6
