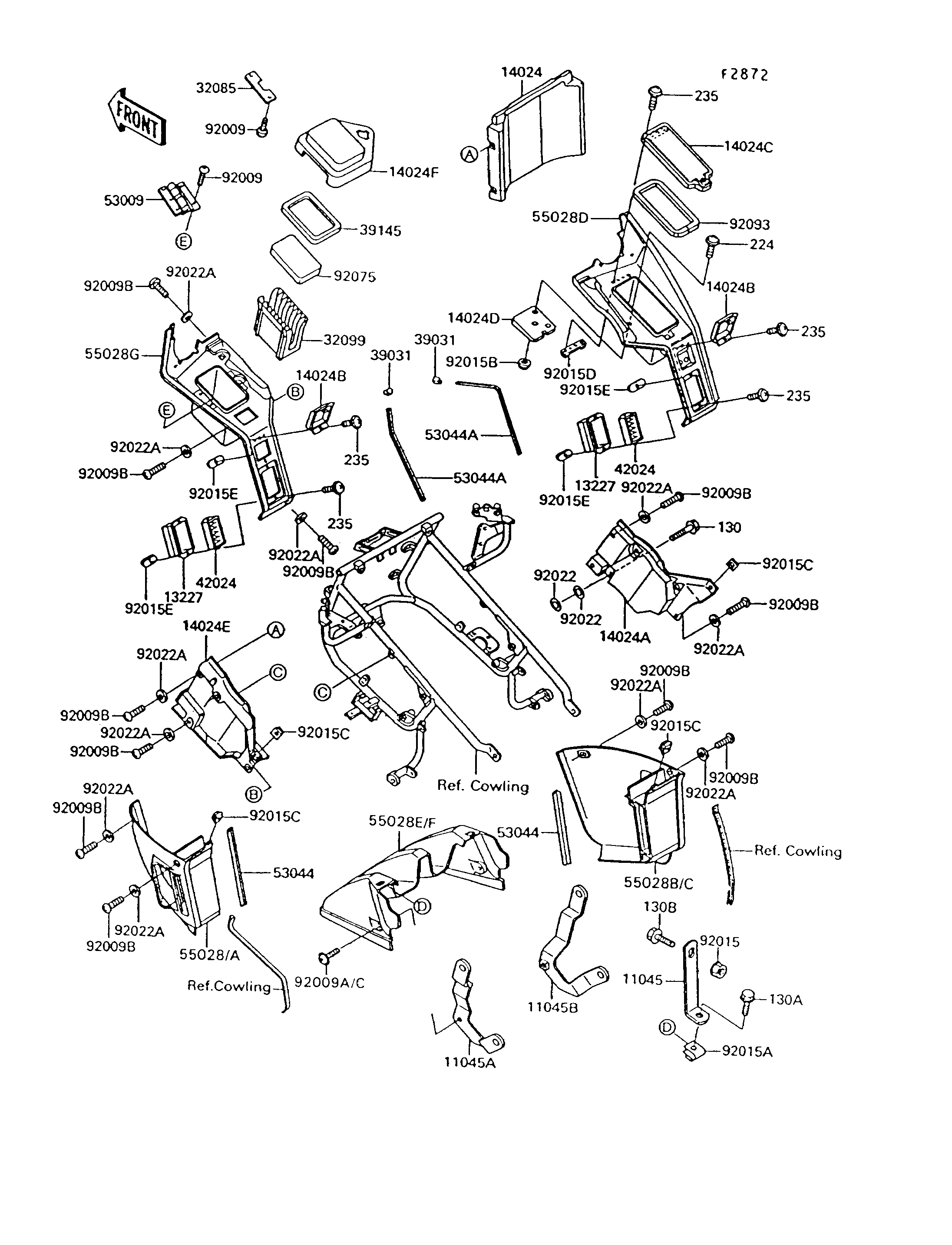

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11045
11045
11045A
11045A
11045B
11045B
13227
13227
13227
13227
14024
14024
14024A
14024A
14024B
14024B
14024B
14024B
14024C
14024C
14024D
14024D
14024E
14024E
14024F
14024F
32085
32085
32099
32099
39031
39031
39031
39031
39145
39145
42024
42024
42024
42024
53009
53009
53044
53044
53044
53044
53044A
53044A
53044A
53044A
55028
55028
55028B
55028B
55028D
55028D
55028E
55028E
55028G
55028G
92009
92009
92009
92009
92009A
92009A
92009B
92009B
92009B
92009B
92009B
92009B
92009B
92009B
92009B
92009B
92009B
92009B
92009B
92009B
92009B
92009B
92009B
92009B
92009B
92009B
92009B
92009B
92015
92015
92015A
92015A
92015B
92015B
92015C
92015C
92015C
92015C
92015C
92015C
92015C
92015C
92015D
92015D
92015E
92015E
92015E
92015E
92015E
92015E
92015E
92015E
92022
92022
92022
92022
92022A
92022A
92022A
92022A
92022A
92022A
92022A
92022A
92022A
92022A
92022A
92022A
92022A
92022A
92022A
92022A
92022A
92022A
92022A
92022A
92022A
92022A
92075
92075
130
130
130A
130A
130B
130B
224
224
235
235
235
235
235
235
235
235
235
235
92093
92093
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,LOWER COWLING,UPP | 11045 | 11045-1410 | 2 | ||
| BRACKET,LOWER COWLING,LH | 11045A | 11045-1934 | 1 | ||
| BRACKET,LOWER COWLING,RH | 11045B | 11045-1935 | 1 | ||
| HOUSING,SHUTTER | 13227 | 13227-1012 | 2 | ||
| COVER,COWLING,INNER,FR | 14024 | 14024-1183 | 1 | ||
| COVER,COWLING,INNER,RH | 14024A | 14024-1185 | 1 | ||
| COVER,TRANSCEIVER | 14024B | 14024-1191 | 2 | ||
| COVER,FAIRING POCKET,RH | 14024C | 14024-1200 | 1 | ||
| COVER,AMPLIFIER | 14024D | 14024-1304 | 1 | ||
| COVER,COWLING,INNER,LH | 14024E | 14024-1478 | 1 | ||
| COVER,FAIRING POCKET,LH | 14024F | 14024-1480 | 1 | ||
| STOPPER,FAIRING POCKET,LH | 32085 | 32085-1271 | 1 | ||
| CASE,CASSETTE | 32099 | 32099-1103 | 1 | ||
| CAP-END,TRIM | 39031 | 39031-1058 | 2 | ||
| TRIM-SEAL,FAIRING POCKET,LH | 39145 | 39145-1085 | 1 | ||
| SHUTTER,LOUVER | 42024 | 42024-1002 | 2 | ||
| HINGE,SIDE BAG | 53009 | 53009-1062 | 1 | ||
| TRIM,COWLING,LWR | 53044 | 53044-1159 | 2 | ||
| TRIM,L=350 | 53044A | 53044-1161 | 2 | ||
| COWLING,LWR,LH,EBONY | 55028 | 55028-1106-H8 | 1 | ||
| COWLING,LWR,RH,EBONY | 55028B | 55028-1107-H8 | 1 | ||
| COWLING,INNER,RH | 55028D | 55028-1109 | 1 | ||
| COWLING,LWR,EBONY | 55028E | 55028-1169-H8 | 1 | ||
| COWLING,INNER,LH | 55028G | 55028-1170 | 1 | ||
| SCREW,TAPPING,4X10 | 92009 | 92009-1040 | 7 | ||
| SCREW,6X18,BLACK | 92009A | 92009-1181 | 2 | ||
| SCREW,5X18 | 92009B | 92009-1655 | 21 | ||
| NUT,FLANGED,8MM,BLACK | 92015 | 92015-1183 | 2 | ||
| NUT,6MM,BLACK | 92015A | 92015-1217 | 2 | ||
| NUT,FLANGED,5MM | 92015B | 92015-1259 | 1 | ||
| NUT,4MM | 92015C | 92015-1598 | 6 | ||
| NUT,BRACKET,4MM | 92015D | 92015-1599 | 1 | ||
| NUT,5MM | 92015E | 92015-1710 | 8 | ||
| WASHER,5.5X20X1.2 | 92022 | 92022-104 | 2 | ||
| WASHER,NYLON,5.3X11.5X1.5 | 92022A | 92022-1521 | 21 | ||
| DAMPER,FAIRING POCKET COVER,LH | 92075 | 92075-1961 | 1 | ||
| BOLT-FLANGED,5X30 | 130 | 130B0530 | 1 | ||
| BOLT-FLANGED,6X16 | 130A | 130C0616 | 2 | ||
| BOLT-FLANGED | 130B | 130C0835 | 2 | ||
| SCREW-PAN-WP-CROS | 224 | 224B0514 | 1 | ||
| SCREW-PAN-WP-CROS | 235 | 235C0412 | 8 | ||
| SEAL,FAIRING POCKET | 92093 | 92093-1211 | 1 |
| BRACKET,LOWER COWLING,UPP | |
| REF # | 11045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BRACKET,LOWER COWLING,LH | |
| REF # | 11045A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,LOWER COWLING,RH | |
| REF # | 11045B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOUSING,SHUTTER | |
| REF # | 13227 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COVER,COWLING,INNER,FR | |
| REF # | 14024 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,COWLING,INNER,RH | |
| REF # | 14024A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,TRANSCEIVER | |
| REF # | 14024B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COVER,FAIRING POCKET,RH | |
| REF # | 14024C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,AMPLIFIER | |
| REF # | 14024D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,COWLING,INNER,LH | |
| REF # | 14024E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,FAIRING POCKET,LH | |
| REF # | 14024F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STOPPER,FAIRING POCKET,LH | |
| REF # | 32085 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE,CASSETTE | |
| REF # | 32099 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-END,TRIM | |
| REF # | 39031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| TRIM-SEAL,FAIRING POCKET,LH | |
| REF # | 39145 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHUTTER,LOUVER | |
| REF # | 42024 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| HINGE,SIDE BAG | |
| REF # | 53009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TRIM,COWLING,LWR | |
| REF # | 53044 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| TRIM,L=350 | |
| REF # | 53044A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COWLING,LWR,LH,EBONY | |
| REF # | 55028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,LWR,RH,EBONY | |
| REF # | 55028B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,INNER,RH | |
| REF # | 55028D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,LWR,EBONY | |
| REF # | 55028E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,INNER,LH | |
| REF # | 55028G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,4X10 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X18,BLACK | |
| REF # | 92009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X18 | |
| REF # | 92009B |
|---|---|
| PART NUMBER | |
| QUANTITY | 21 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,8MM,BLACK | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,6MM,BLACK | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,5MM | |
| REF # | 92015B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,4MM | |
| REF # | 92015C |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| NUT,BRACKET,4MM | |
| REF # | 92015D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,5MM | |
| REF # | 92015E |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| WASHER,5.5X20X1.2 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,NYLON,5.3X11.5X1.5 | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 21 |
| DESTINATION | |
| REMARKS | |
| DAMPER,FAIRING POCKET COVER,LH | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,5X30 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X16 | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED | |
| REF # | 130B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-WP-CROS | |
| REF # | 224 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-WP-CROS | |
| REF # | 235 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| SEAL,FAIRING POCKET | |
| REF # | 92093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
