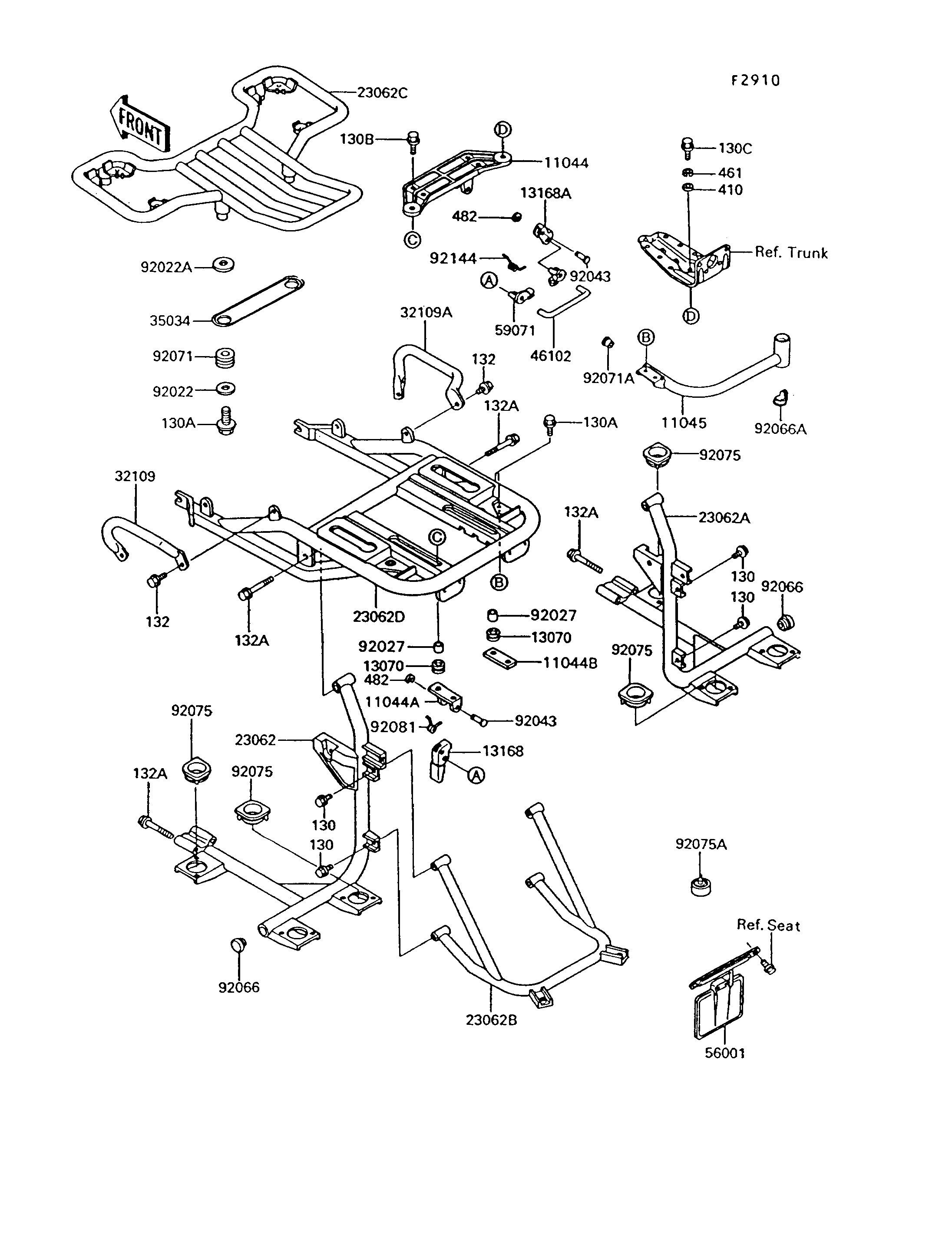

1993 Voyager XII - Accessory(Trunk Bracket)
130
130
130
130
130A
130A
130B
130C
132
132
132A
132A
132A
132A
410
461
482
482
11044
11044A
11044B
11045
13070
13070
13168
13168A
23062
23062A
23062B
23062C
23062D
32109
32109A
35034
46102
56001
59071
92022
92022A
92027
92027
92043
92043
92066
92066
92066A
92071
92071A
92075
92075
92075
92075
92075A
92081
92144
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED | 130 | 130B0614 | 4 | ||
| BOLT-FLANGED,6X10,BLACK | 130A | 130C0610 | 6 | ||
| BOLT-FLANGED,6X20 | 130B | 130C0620 | 4 | ||
| BOLT-FLANGED,8X20 | 130C | 130J0820 | 2 | ||
| BOLT-FLANGED-SMALL,8X16 | 132 | 132E0816 | 4 | ||
| BOLT-FLANGED-SMALL,8X55 | 132A | 132E0855 | 6 | ||
| WASHER-PLAIN-SMALL,8MM,BLACK | 410 | 410F0800 | 2 | ||
| WASHER-SPRING,8MM,BLACK | 461 | 461K0800 | 2 | ||
| CIRCLIP-TYPE-E,4MM | 482 | 482L4000 | 2 | ||
| BRACKET,TRUNK | 11044 | 11044-1637 | 1 | ||
| BRACKET,TRUNK,LH | 11044A | 11044-1676 | 1 | ||
| BRACKET,TRUNK,RH | 11044B | 11044-1677 | 1 | ||
| BRACKET,ANTENNA | 11045 | 11045-1920 | 1 | ||
| GUIDE | 13070 | 13070-1151 | 4 | ||
| LEVER | 13168 | 13168-1307 | 1 | ||
| LEVER | 13168A | 13168-1329 | 1 | ||
| BRACKET-COMP,LH | 23062 | 23062-1060 | 1 | ||
| BRACKET-COMP,RH | 23062A | 23062-1061 | 1 | ||
| BRACKET-COMP,TAIL | 23062B | 23062-1062 | 1 | ||
| BRACKET-COMP,REAR SPEAKER | 23062C | 23062-1073 | 1 | ||
| BRACKET-COMP,CNT | 23062D | 23062-1074 | 1 | ||
| GRIP-FRAME,LH | 32109 | 32109-1137 | 1 | ||
| GRIP-FRAME,RH | 32109A | 32109-1138 | 1 | ||
| REINFORCE,TRUNK COVER | 35034 | 35034-1220 | 1 | ||
| ROD | 46102 | 46102-1182 | 1 | ||
| MIRROR-ASSY,VANITY | 56001 | 56001-1268 | 1 | ||
| JOINT | 59071 | 59071-1103 | 2 | ||
| WASHER,6.5X26X1,BLACK | 92022 | 92022-1248 | 4 | ||
| WASHER,CAP TYPE | 92022A | 92022-1638 | 4 | ||
| COLLAR,6.8X10X9.5 | 92027 | 92027-1983 | 4 | ||
| PIN,6X28 | 92043 | 92043-1308 | 2 | ||
| PLUG | 92066 | 92066-1220 | 4 | ||
| PLUG | 92066A | 92066-1287 | 1 | ||
| GROMMET | 92071 | 92071-1131 | 4 | ||
| GROMMET | 92071A | 92071-1156 | 1 | ||
| DAMPER | 92075 | 92075-1840 | 6 | ||
| DAMPER,MIRROR STOPPER | 92075A | 92075-1844 | 1 | ||
| SPRING,RETURN | 92081 | 92081-1967 | 1 | ||
| SPRING | 92144 | 92144-1045 | 1 |
