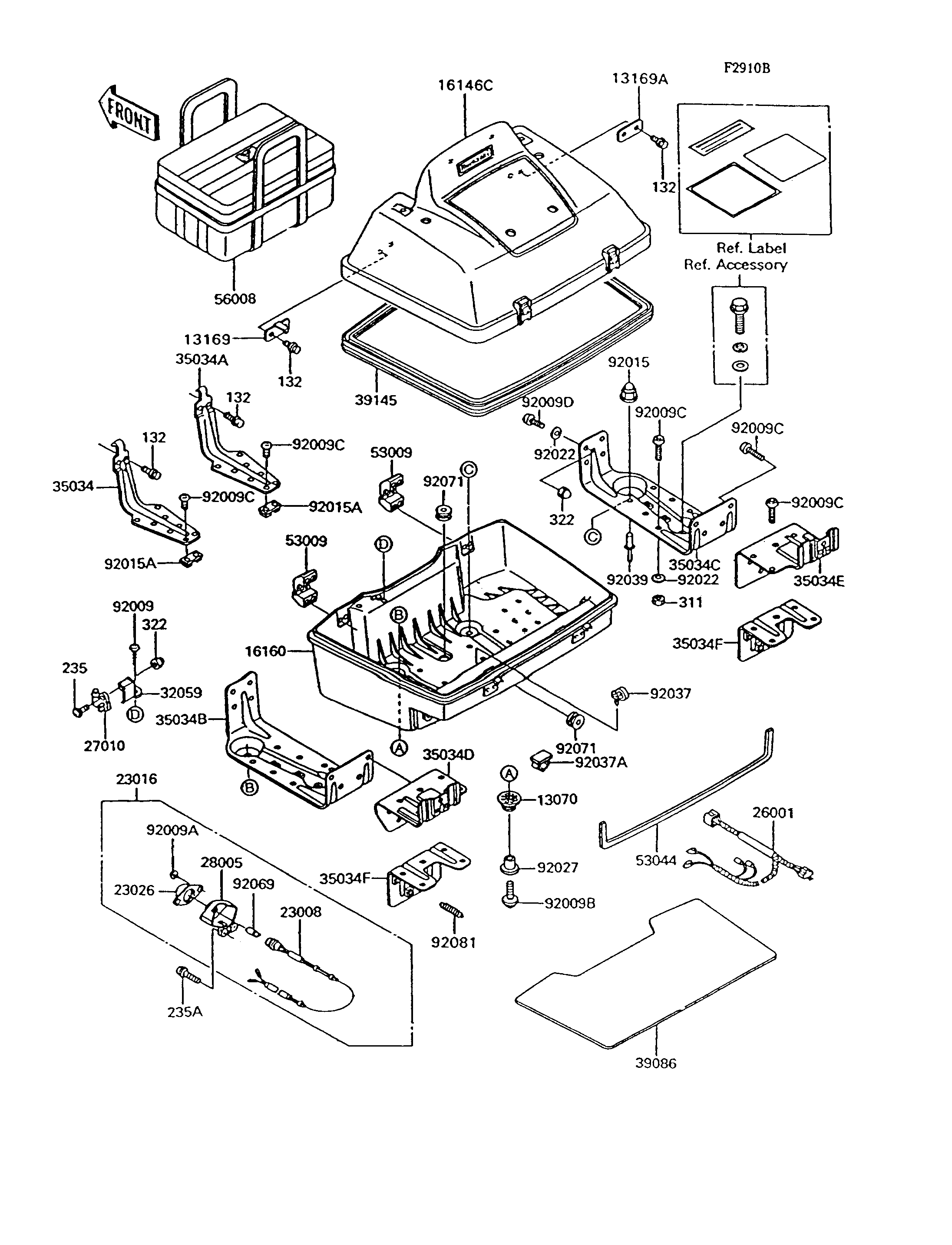

1994 Voyager XII - Accessory(Trunk)(ZG1200-B8/B9)

DOWNLOAD PDF
SELECT A NEW PART
13070
13070
13169
13169
13169A
13169A
16146C
16146C
16160
16160
23008
23008
23016
23016
23026
23026
26001
26001
27010
27010
28005
28005
32059
32059
35034
35034
35034A
35034A
35034B
35034B
35034C
35034C
35034D
35034D
35034E
35034E
35034F
35034F
35034F
35034F
39086
39086
39145
39145
53009
53009
53009
53009
53044
53044
56008
56008
92009
92009
92009A
92009A
92009B
92009B
92009C
92009C
92009C
92009C
92009C
92009C
92009C
92009C
92009C
92009C
92009D
92009D
92015
92015
92015A
92015A
92015A
92015A
92022
92022
92022
92022
92027
92027
92037
92037
92037A
92037A
92039
92039
92069
92069
132
132
132
132
132
132
132
132
235
235
235A
235A
311
311
322
322
322
322
92071
92071
92071
92071
92081
92081
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GUIDE 13070 13070-1149 2
PLATE,HINGE,LH 13169 13169-1635 1
PLATE,HINGE,RH 13169A 13169-1636 1
COVER-ASSY,TRUNK,GREEN/GREEN 16146C 16146-5042-SV 1
BODY,TRUNK,P.T.GREEN 16160 16160-1140-SM 1
SOCKET-ASSY,TRUNK ROOM LAMP 23008 23008-1295 1
LAMP-ASSY,TRUNK ROOM 23016 23016-1066 1
LENS,LAMP 23026 23026-1054 1
HARNESS,TRUNK 26001 26001-1758 1
SWITCH,BRAKE/SIDE STAND 27010 27010-1185 1
BODY-LAMP,TRUNK ROOM 28005 28005-1054 1
BRACKET-SWITCH 32059 32059-1067 1
REINFORCE,HINGE,LH 35034 35034-1213 1
REINFORCE,HINGE,RH 35034A 35034-1214 1
REINFORCE,BAG,LH 35034B 35034-1215 1
REINFORCE,BAG,RH 35034C 35034-1216 1
REINFORCE,TAIL,LH 35034D 35034-1217 1
REINFORCE,TAIL,RH 35034E 35034-1218 1
REINFORCE,TAIL,LWR 35034F 35034-1219 2
PAD-STORAGE,TRUNK 39086 39086-1051 1
TRIM-SEAL,TRUNK 39145 39145-1087 1
HINGE,TRUNK 53009 53009-1071 2
TRIM,TAIL LAMP 53044 53044-1142 1
BAG,INNER 56008 56008-1060 1
SCREW,TAPPING,5X10 92009 92009-1332 1
SCREW,TAPPING,4X12 92009A 92009-1381 2
SCREW,6X28,BLACK 92009B 92009-1400 2
SCREW,4X12 92009C 92009-1448 46
SCREW,4X10 92009D 92009-1489 8
NUT,LOCK 6MM 92015 92015-1262 2
NUT,PLATE,4MM 92015A 92015-1620 6
WASHER,4.3X12X0.8 92022 92022-1830 24
COLLAR,L=21 92027 92027-195 2
CLAMP 92037 92037-1290 2
CLAMP,HARNESS 92037A 92037-1793 1
RIVET 92039 92039-1150 8
BULB,12V 3CP 92069 92069-1066 1
BOLT-FLANGED-SMALL,5X12 132 132J0512 8
SCREW-PAN-WP-CROS 235 235C0414 1
SCREW-PAN-WP-CROS 235A 235C0430 2
NUT-HEX 311 311C0400 12
NUT-CAP,4MM 322 322C0400 9
GROMMET 92071 92071-1136 2
SPRING,HARNESS GUIDE 92081 92081-1954 1
