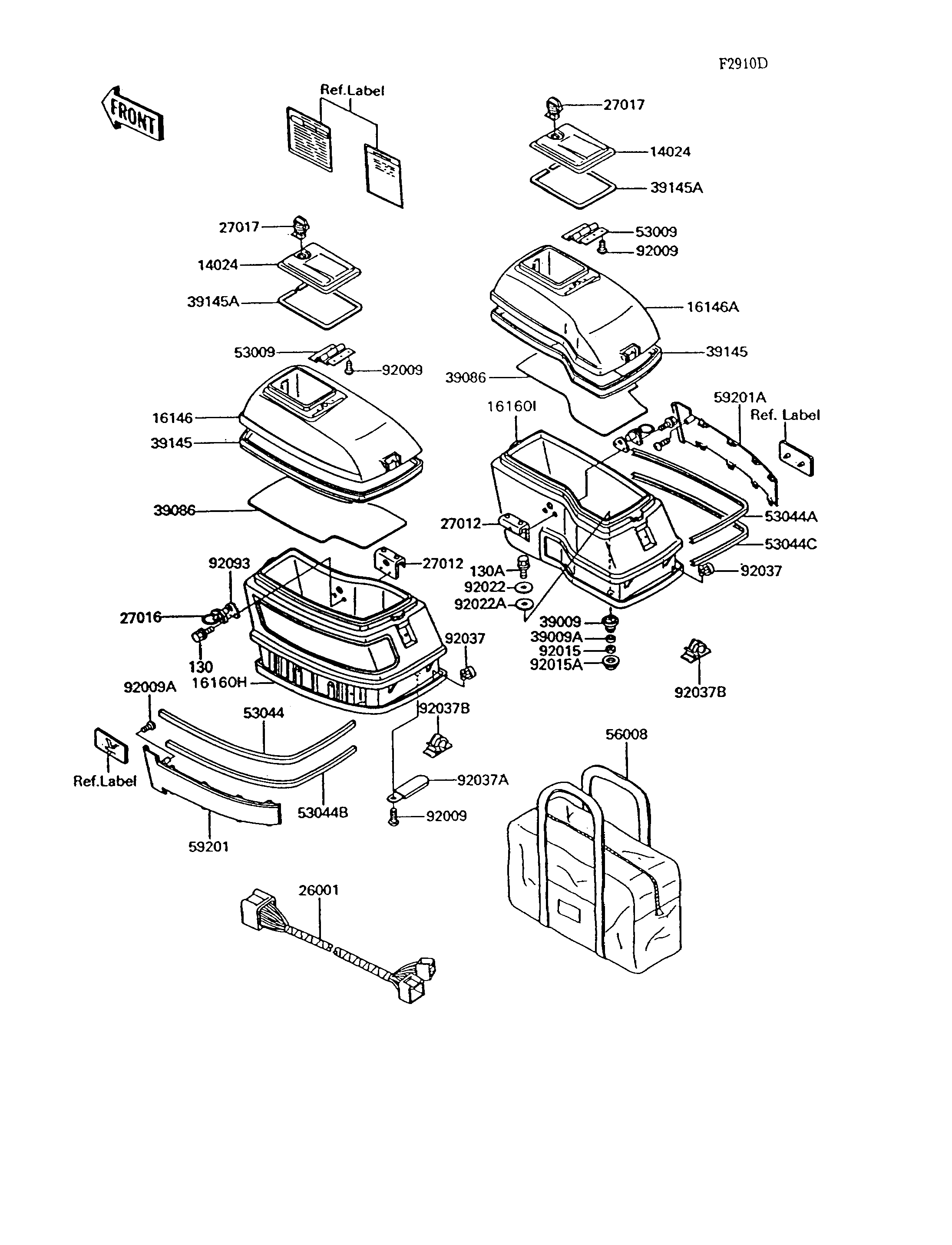

1994 Voyager XII - Accessory(Side Bag)(ZG1200-B8/B9)

DOWNLOAD PDF
SELECT A NEW PART
14024
14024
14024
14024
16146
16146
16146A
16146A
16160H
16160H
16160I
16160I
26001
26001
27012
27012
27012
27012
27016
27016
27017
27017
27017
27017
39009
39009
39009A
39009A
39086
39086
39086
39086
39145
39145
39145
39145
39145A
39145A
39145A
39145A
53009
53009
53009
53009
53044
53044
53044A
53044A
53044B
53044B
53044C
53044C
56008
56008
59201
59201
59201A
59201A
92009
92009
92009
92009
92009
92009
92009A
92009A
92015
92015
92015A
92015A
92022
92022
92022A
92022A
92037
92037
92037
92037
92037A
92037A
92037B
92037B
92037B
92037B
92093
92093
130
130
130A
130A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,SIDE BAG 14024 14024-1178 2
COVER-ASSY,SIDE BAG,LH,GREEN 16146 16146-1063-SM 1
COVER-ASSY,SIDE BAG,RH,GREEN 16146A 16146-1064-SM 1
BODY,SIDE BAG,LH,GREEN/GREEN 16160H 16160-5023-SV 1
BODY,SIDE BAG,RH,GREEN/GREEN 16160I 16160-5024-SV 1
HARNESS,SIDE BAG 26001 26001-1757 2
HOOK,SIDE BAG 27012 27012-1339 2
LOCK-ASSY,BAG 27016 27016-1054 2
LOCK,BAG 27017 27017-1126 2
BLOCK-MOUNT,BAG 39009 39009-1051 4
BLOCK-MOUNT,BAG 39009A 39009-1052 4
PAD-STORAGE,BAG 39086 39086-1052 2
TRIM-SEAL,SIDE BAG 39145 39145-1068 2
TRIM-SEAL,SIDE BAG 39145A 39145-1071 2
HINGE,SIDE BAG 53009 53009-1062 2
TRIM,SIDE BAG,UPP,LH 53044 53044-1143 1
TRIM,SIDE BAG,UPP,RH 53044A 53044-1144 1
TRIM,SIDE BAG,LWR,LH 53044B 53044-1145 1
TRIM,SIDE BAG,LWR,RH 53044C 53044-1146 1
BAG 56008 56008-1055 2
BUMPER,LH 59201 59201-1051 1
BUMPER,RH 59201A 59201-1052 1
SCREW,TAPPING,4X10 92009 92009-1040 14
SCREW,TAPPING,4X14 92009A 92009-1429 2
NUT,LOCK,6MM,BLACK 92015 92015-1191 4
NUT,BLOCK MOUNT,24MM 92015A 92015-1628 4
WASHER,7X28X1.6,BLACK 92022 92022-1392 4
WASHER,5X28X1 92022A 92022-1813 4
CLAMP 92037 92037-1290 2
CLAMP,HARNESS 92037A 92037-1726 4
CLAMP,HARNESS 92037B 92037-1793 2
SEAL,LOCK 92093 92093-1209 2
BOLT-FLANGED,6X16 130 130C0616 4
BOLT-FLANGED 130A 130C0630 4
