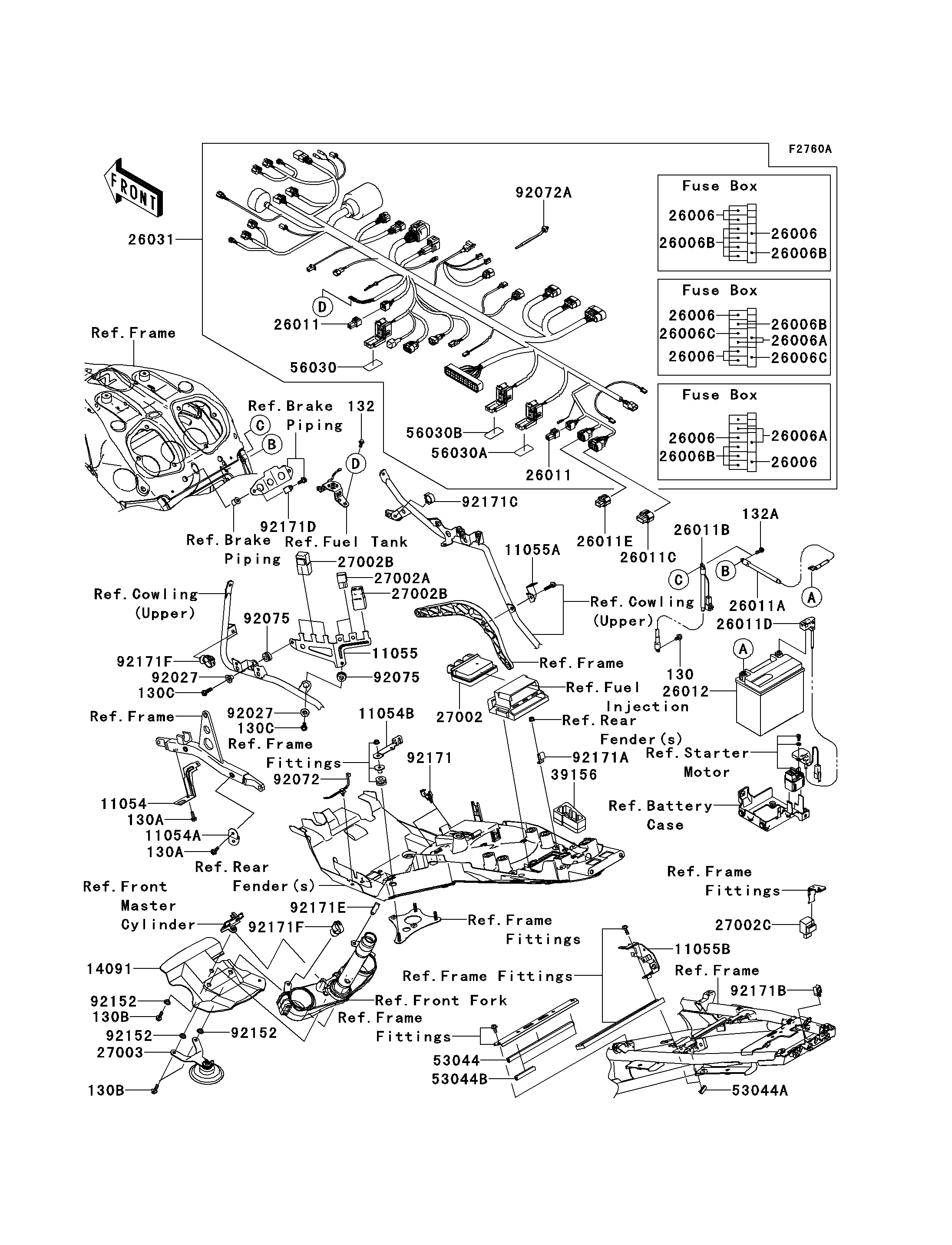

2009 Concours 14 ABS - Chassis Electrical Equipment(A9F)

DOWNLOAD PDF
SELECT A NEW PART
11054
11054
11054A
11054A
11054B
11054B
11055
11055
11055A
11055A
11055B
11055B
14091
14091
26006
26006
26006
26006
26006
26006
26006
26006
26006
26006
26006
26006
26006A
26006A
26006A
26006A
26006B
26006B
26006B
26006B
26006B
26006B
26006B
26006B
26006C
26006C
26006C
26006C
26011
26011
26011
26011
26011A
26011A
26011B
26011B
26011C
26011C
26011D
26011D
26011E
26011E
26012
26012
26031
26031
27002
27002
27002A
27002A
27002B
27002B
27002B
27002B
27002C
27002C
27003
27003
39156
39156
53044
53044
53044A
53044A
53044B
53044B
56030
56030
56030A
56030A
56030B
56030B
92027
92027
92027
92027
92072
92072
92072A
92072A
92075
92075
92075
92075
92152
92152
92152
92152
92152
92152
92171
92171
92171A
92171A
92171B
92171B
92171C
92171C
130
130
130A
130A
130A
130A
130B
130B
130B
130B
130C
130C
130C
130C
132
132
132A
132A
92171D
92171D
92171E
92171E
92171F
92171F
92171F
92171F
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SUB FRAME,FR 11054 11054-1131 1
BRACKET,SUB FRAME,RR 11054A 11054-1133 1
BRACKET,DIAG. COUPLER 11054B 11054-1870 1
BRACKET,RELAY 11055 11055-0064 1
BRACKET,FAN COUPLER 11055A 11055-0079 1
BRACKET,COUPLER 11055B 11055-0276 1
COVER,RADIATOR 14091 14091-0912 1
FUSE,15A 26006 26006-0001 8
FUSE,30A-G 26006A 26006-1067 4
FUSE,10A 26006B 26006-1078 9
FUSE,20A 26006C 26006-1079 2
WIRE-LEAD 26011 26011-0082 2
WIRE-LEAD,BATTERY(-) 26011A 26011-0087 1
WIRE-LEAD,BATTERY(-) 26011B 26011-0093 1
WIRE-LEAD 26011C 26011-0105 1
WIRE-LEAD,BATTERY(+) 26011D 26011-0120 1
WIRE-LEAD 26011E 26011-0146 1
BATTERY,FTZ14-BS,12V 14AH 26012 26012-1409 1
HARNESS,MAIN 26031 26031-0743 1
RELAY-ASSY 27002 27002-0007 1
RELAY-ASSY 27002A 27002-0012 2
RELAY-ASSY 27002B 27002-1086 4
RELAY-ASSY,TURN SIGNAL 27002C 27002-1090 1
HORN 27003 27003-0036 1
PAD 39156 39156-0331 1
TRIM,L=220 53044 53044-0022 1
TRIM,L=22 53044A 53044-0031 2
TRIM,L=60 53044B 53044-1249 2
LABEL,FUSE BOX 56030 56030-0110 1
LABEL,FUSE BOX 56030A 56030-0247 1
LABEL,FUSE BOX 56030B 56030-0260 1
COLLAR,FLANGED,L=12.1,BLACK 92027 92027-1651 2
BAND 92072 92072-0066 1
BAND 92072A 92072-1414 12
DAMPER 92075 92075-277 2
COLLAR 92152 92152-0445 3
CLAMP,CLIP,DIA=20 92171 92171-0068 2
CLAMP,HARNESS 92171A 92171-0255 1
CLAMP 92171B 92171-0290 1
CLAMP 92171C 92171-0782 1
BOLT-FLANGED,6X10 130 130BA0610 1
BOLT-FLANGED,6X16 130A 130BA0616 2
BOLT-FLANGED,6X18 130B 130BA0618 3
BOLT-FLANGED,6X22 130C 130BA0622 2
BOLT-FLANGED-SMALL,6X12 132 132BA0612 1
BOLT-FLANGED-SMALL,6X16 132A 132BA0616 2
CLAMP 92171D 92171-0813 1
CLAMP 92171E 92171-0864 1
CLAMP 92171F 92171-1706 2
