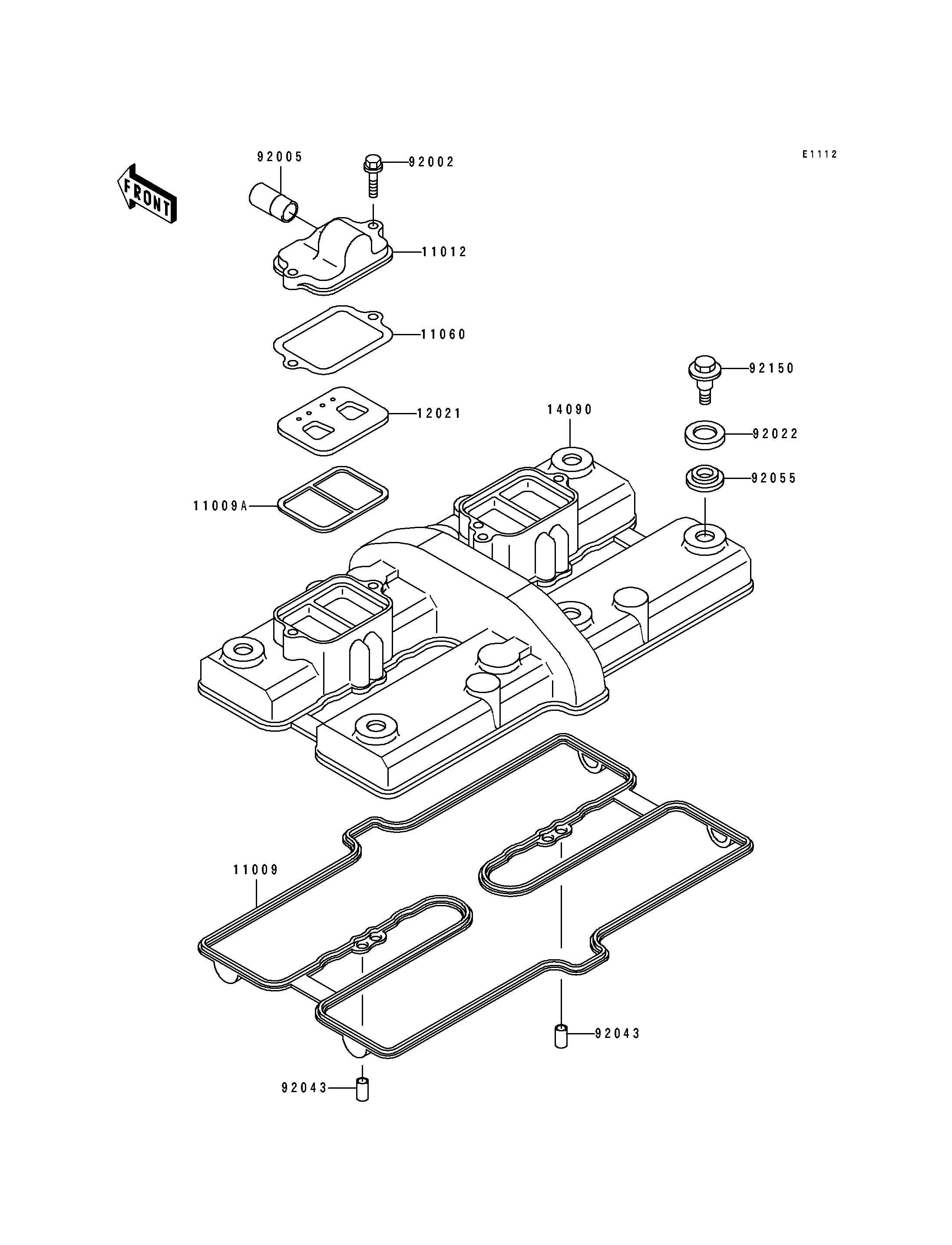

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,CYLINDER HEAD COVER 11009 11009-1497 1
GASKET,REED VALVE 11009A 11009-1857 2
CAP 11012 11012-1919 2
GASKET 11060 11060-1509 2
VALVE-ASSY-REED 12021 12021-1053 2
COVER,CYLINDER HEAD 14090 14090-1576 1
BOLT,6X22 92002 92002-1068 4
FITTING,REED VALVE 92005 92005-1006 2
WASHER,HEAD COVER BOLT 92022 92022-1487 6
PIN,6.2X8X14 92043 92043-1263 4
RING-O,HEAD COVER BOLT 92055 92055-1225 6
BOLT,HEAD COVER 92150 92150-1447 6
