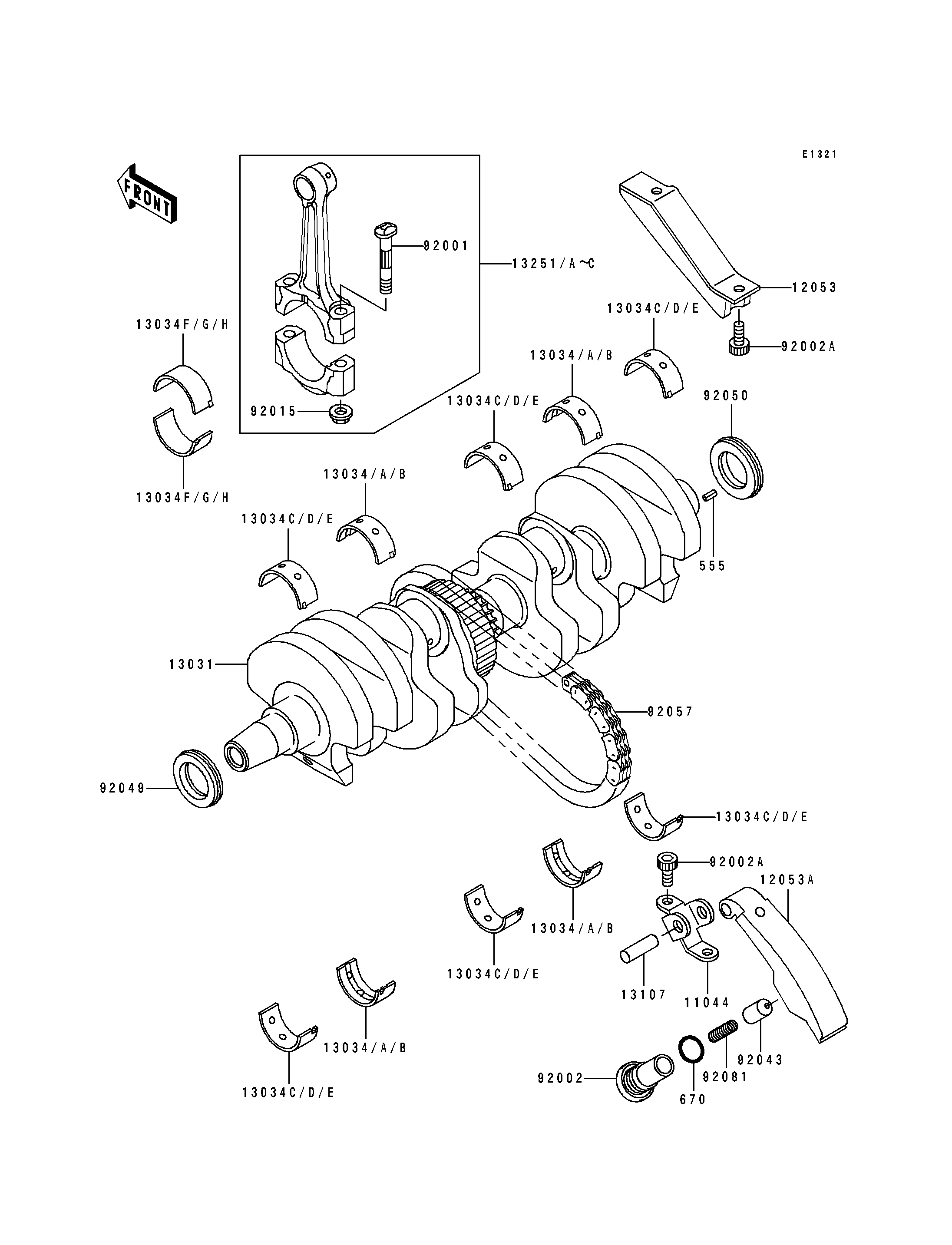

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,CHAIN GUIDE | 11044 | 11044-1075 | 1 | ||
| GUIDE-CHAIN,UPP | 12053 | 12053-1156 | 1 | ||
| GUIDE-CHAIN,LWR | 12053A | 12053-1157 | 1 | ||
| CRANKSHAFT-COMP | 13031 | 13031-1245 | 1 | ||
| METAL,CRANKSHAFT,BROWN | 13034 | 13034-1016 | AR | ||
| METAL,CRANKSHAFT,BLACK | 13034A | 13034-1017 | AR | ||
| METAL,CRANKSHAFT,BLUE | 13034B | 13034-1018 | AR | ||
| BUSHING,CRANKSHAFT,BLUE | 13034C | 13034-1064 | AR | ||
| BUSHING,CRANKSHAFT,BLACK | 13034D | 13034-1065 | AR | ||
| BUSHING,CRANKSHAFT,BROWN | 13034E | 13034-1066 | AR | ||
| BUSHING,CONNECTING ROD,BLUE | 13034F | 13034-1067 | AR | ||
| BUSHING,CONNECTING ROD,BLACK | 13034G | 13034-1068 | AR | ||
| BUSHING,CONNECTING ROD,BROWN | 13034H | 13034-1069 | AR | ||
| SHAFT,8X25 | 13107 | 13107-1142 | 1 | ||
| ROD-ASSY-CONNECTING,H | 13251 | 13251-1059-HH | 4 | ||
| ROD-ASSY-CONNECTING,I | 13251A | 13251-1059-II | 4 | ||
| ROD-ASSY-CONNECTING,J | 13251B | 13251-1059-JJ | 4 | ||
| ROD-ASSY-CONNECTING,K | 13251C | 13251-1059-KK | 4 | ||
| BOLT,CONNECTING ROD,8MM | 92001 | 92001-1887 | 8 | ||
| BOLT | 92002 | 92002-1479 | 1 | ||
| BOLT,SOCKET,6X14 | 92002A | 92002-1592 | 4 | ||
| NUT,FLANGED,8MM | 92015 | 92015-1311 | 8 | ||
| PIN | 92043 | 92043-076 | 1 | ||
| SEAL-OIL,HSCY25367 | 92049 | 92049-1013 | 1 | ||
| SEAL-OIL,HSCY25397 | 92050 | 92050-081 | 1 | ||
| CHAIN,PRIMARY,MA0364X50L | 92057 | 92057-1011 | 1 | ||
| SPRING | 92081 | 92081-112 | 1 | ||
| PIN-SPRING,4X8 | 555 | 555A0408 | 1 | ||
| O RING,16MM | 670 | 670B2016 | 1 |
| BRACKET,CHAIN GUIDE | |
| REF # | 11044 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE-CHAIN,UPP | |
| REF # | 12053 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE-CHAIN,LWR | |
| REF # | 12053A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CRANKSHAFT-COMP | |
| REF # | 13031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| METAL,CRANKSHAFT,BROWN | |
| REF # | 13034 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| METAL,CRANKSHAFT,BLACK | |
| REF # | 13034A |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| METAL,CRANKSHAFT,BLUE | |
| REF # | 13034B |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BUSHING,CRANKSHAFT,BLUE | |
| REF # | 13034C |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BUSHING,CRANKSHAFT,BLACK | |
| REF # | 13034D |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BUSHING,CRANKSHAFT,BROWN | |
| REF # | 13034E |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BUSHING,CONNECTING ROD,BLUE | |
| REF # | 13034F |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BUSHING,CONNECTING ROD,BLACK | |
| REF # | 13034G |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BUSHING,CONNECTING ROD,BROWN | |
| REF # | 13034H |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| SHAFT,8X25 | |
| REF # | 13107 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD-ASSY-CONNECTING,H | |
| REF # | 13251 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| ROD-ASSY-CONNECTING,I | |
| REF # | 13251A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| ROD-ASSY-CONNECTING,J | |
| REF # | 13251B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| ROD-ASSY-CONNECTING,K | |
| REF # | 13251C |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,CONNECTING ROD,8MM | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X14 | |
| REF # | 92002A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,8MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| PIN | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,HSCY25367 | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,HSCY25397 | |
| REF # | 92050 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CHAIN,PRIMARY,MA0364X50L | |
| REF # | 92057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN-SPRING,4X8 | |
| REF # | 555 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| O RING,16MM | |
| REF # | 670 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
