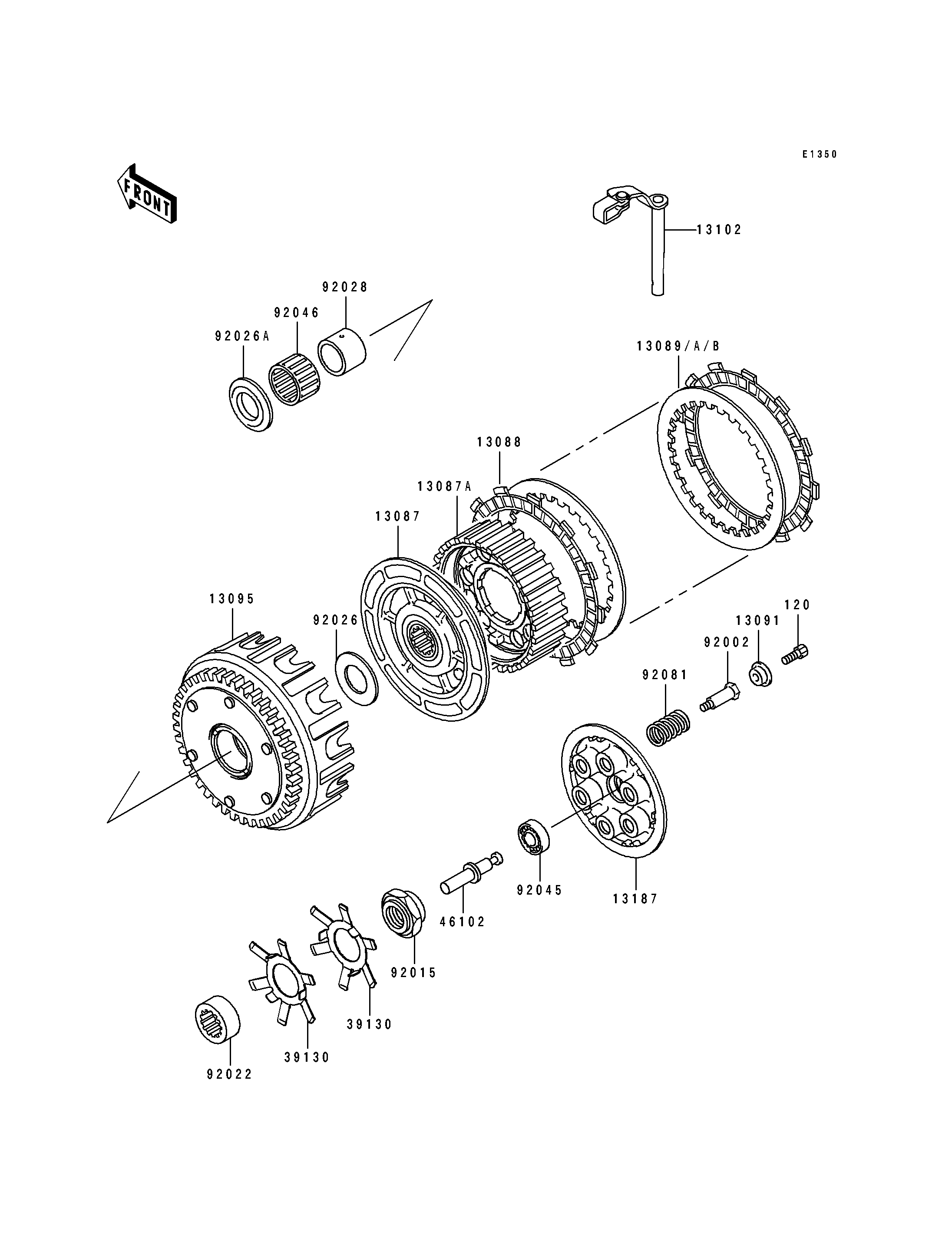

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
HUB-CLUTCH | 13087 | 13087-1079 | 1 | ||
HUB-CLUTCH | 13087A | 13087-1080 | 1 | ||
PLATE-FRICTION | 13088 | 13088-040 | 7 | ||
PLATE-CLUTCH,T=2.0 | 13089 | 13089-026 | AR | ||
PLATE-CLUTCH,T=2.3 | 13089A | 13089-1004 | AR | ||
PLATE-CLUTCH,T=2.6 | 13089B | 13089-1067 | AR | ||
HOLDER,CLUTCH SPRING | 13091 | 13091-1041 | 6 | ||
HOUSING-COMP-CLUTCH | 13095 | 13095-1312 | 1 | ||
RELEASE-COMP-CLUTCH | 13102 | 13102-1080 | 1 | ||
PLATE-CLUTCH OPERATING | 13187 | 13187-1058 | 1 | ||
SPRING-LEAF | 39130 | 39130-1071 | 2 | ||
ROD,CLUTCH | 46102 | 46102-1030 | 1 | ||
BOLT,CLUTCH | 92002 | 92002-1639 | 6 | ||
NUT | 92015 | 92015-1929 | 1 | ||
WASHER,TOOTHED,21.7X36X15.5 | 92022 | 92022-1782 | 1 | ||
SPACER,25.5X47X2.5 | 92026 | 92026-022 | 1 | ||
SPACER,THRUST,T=5.5 | 92026A | 92026-116 | 1 | ||
BUSHING,25X32X23.6 | 92028 | 92028-178 | 1 | ||
BEARING-BALL,6001C3ML01 | 92045 | 92045-1235 | 1 | ||
BEARING-NEEDLE,KTV323723 | 92046 | 92046-028 | 1 | ||
SPRING,CLUTCH | 92081 | 92081-1114 | 6 | ||
BOLT-SOCKET,6X16 | 120 | 120Q0616 | 6 |
HUB-CLUTCH | |
REF # | 13087 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HUB-CLUTCH | |
REF # | 13087A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE-FRICTION | |
REF # | 13088 |
---|---|
PART NUMBER | |
QUANTITY | 7 |
DESTINATION | |
REMARKS |
PLATE-CLUTCH,T=2.0 | |
REF # | 13089 |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
PLATE-CLUTCH,T=2.3 | |
REF # | 13089A |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
PLATE-CLUTCH,T=2.6 | |
REF # | 13089B |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
HOLDER,CLUTCH SPRING | |
REF # | 13091 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
HOUSING-COMP-CLUTCH | |
REF # | 13095 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RELEASE-COMP-CLUTCH | |
REF # | 13102 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE-CLUTCH OPERATING | |
REF # | 13187 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING-LEAF | |
REF # | 39130 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
ROD,CLUTCH | |
REF # | 46102 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,CLUTCH | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
NUT | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,TOOTHED,21.7X36X15.5 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPACER,25.5X47X2.5 | |
REF # | 92026 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPACER,THRUST,T=5.5 | |
REF # | 92026A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BUSHING,25X32X23.6 | |
REF # | 92028 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BALL,6001C3ML01 | |
REF # | 92045 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-NEEDLE,KTV323723 | |
REF # | 92046 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,CLUTCH | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
BOLT-SOCKET,6X16 | |
REF # | 120 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
