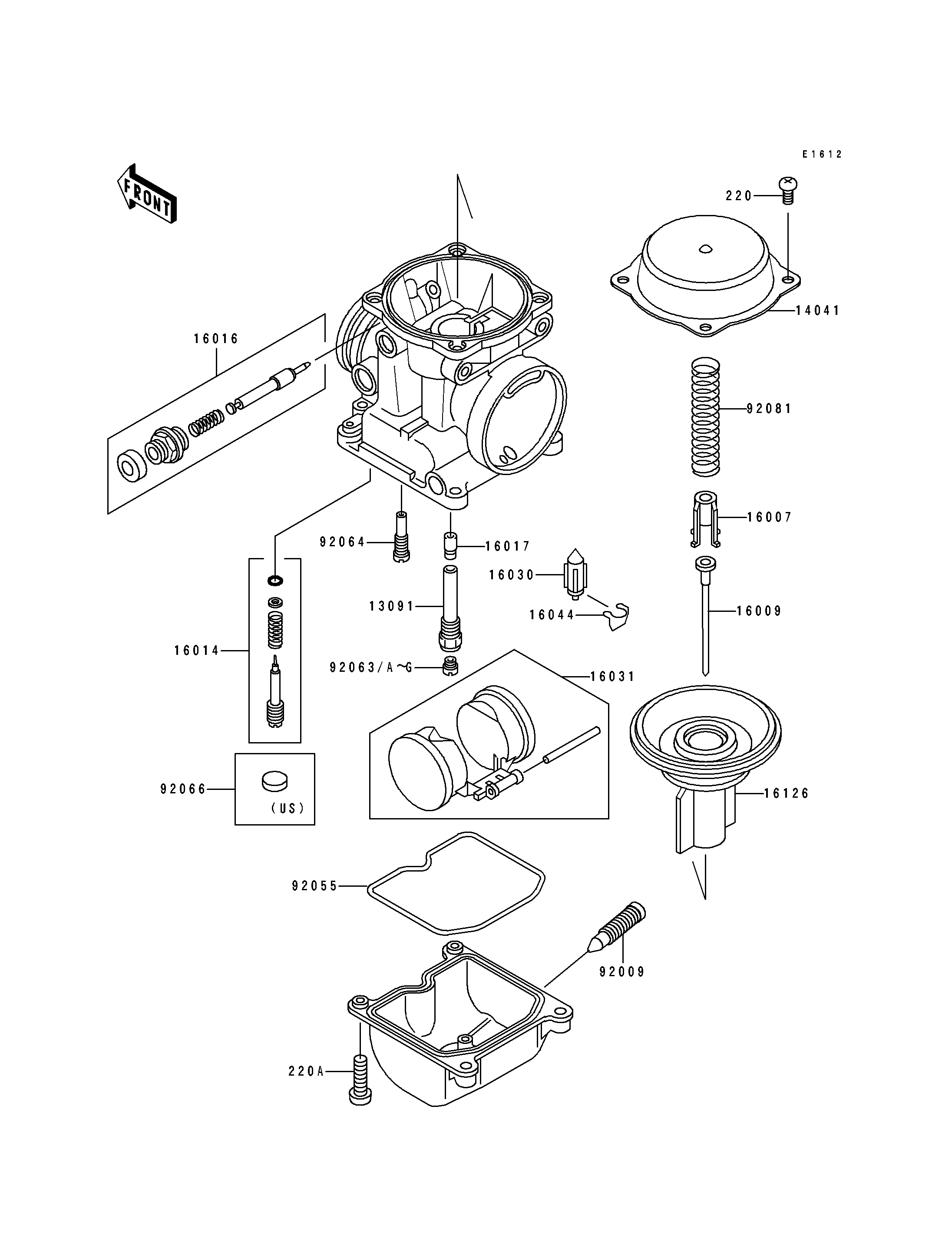

1997 Eliminator 600 - Carburetor Parts

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,NEEDLE JET 13091 13091-1406 4
TOP-CHAMBER,MIXING,OUTSIDE 14041 14041-1076 4
SEAT-SPRING,THROTTLE VALVE 16007 16007-1120 4
NEEDLE-JET,N27X 16009 16009-1309 4
SCREW-PILOT AIR 16014 16014-1081 4
PLUNGER 16016 16016-1092 4
JET-NEEDLE 16017 16017-1314 4
VALVE-FLOAT 16030 16030-1007 4
FLOAT 16031 16031-1077 4
CLAMP,FLOAT VALVE 16044 16044-007 4
VALVE,VACUUM 16126 16126-1159 4
SCREW,DRAIN,M6X0.75 92009 92009-1551 4
RING-O,FLOAT CHAMBER 92055 92055-1222 4
JET-MAIN,#95 92063 92063-1001 4 (RACING USE ONLY)
JET-MAIN,#90 92063A 92063-1003 4
JET-MAIN,#90 92063B 92063-1003 4 (RACING USE ONLY)
JET-MAIN,#92 92063C 92063-1004 4
JET-MAIN,#92 92063D 92063-1004 4 (RACING USE ONLY)
JET-MAIN,#98 92063E 92063-1005 4 (RACING USE ONLY)
JET-MAIN,#85 92063F 92063-1023 4 (RACING USE ONLY)
JET-MAIN,#88 92063G 92063-1024 4 (RACING USE ONLY)
JET-PILOT,#35 92064 92064-1101 4
PLUG,PILOT AIR SCREW,6.9X2 92066 92066-1051 4
SPRING,VACUUM VALVE 92081 92081-1775 4
SCREW-PAN-CROS 220 220B0408 16
SCREW-PAN-CROS 220A 220D0414 16
