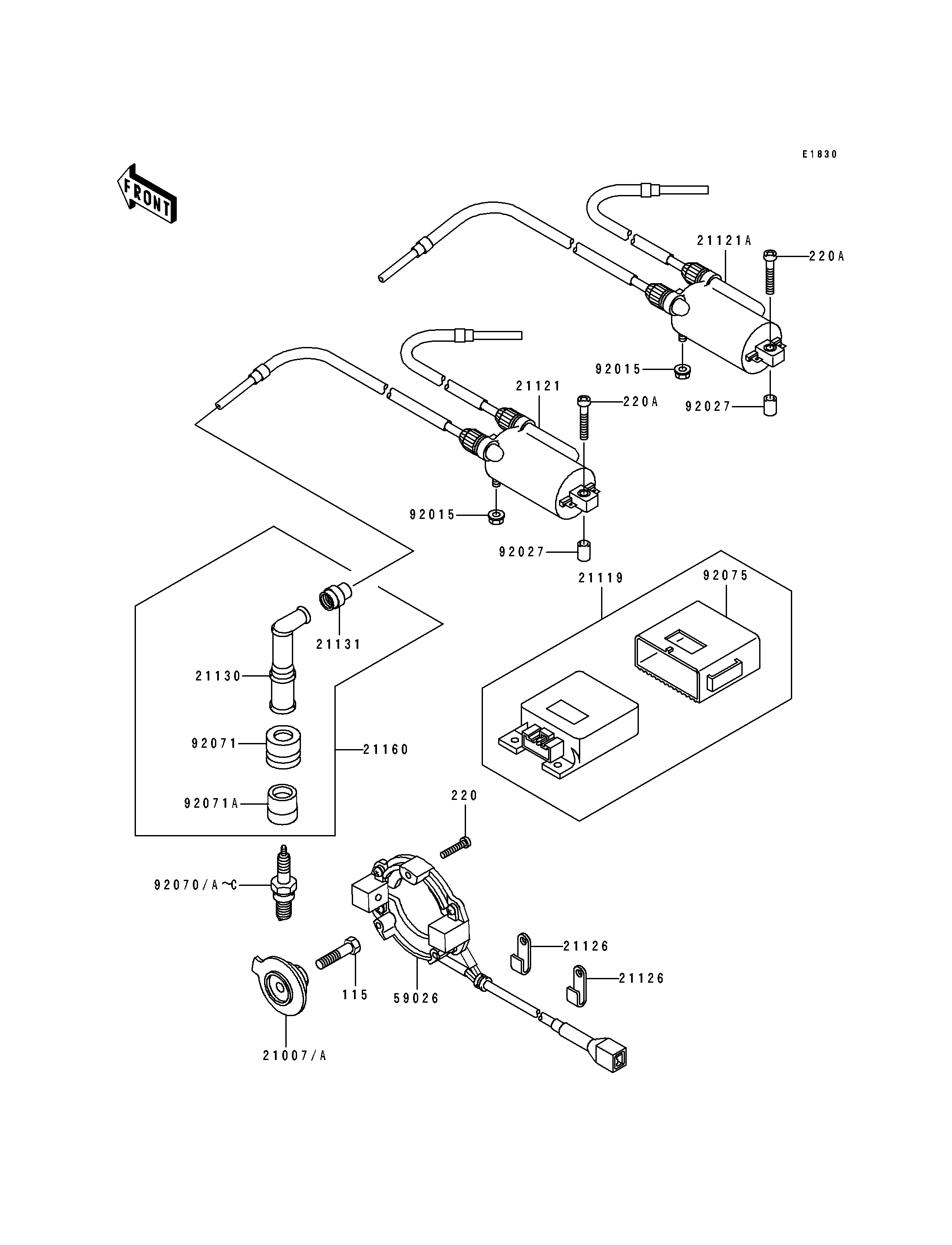

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| ROTOR,PULSING COIL | 21007 | 21007-1130 | 1 | ||
| ROTOR,PULSING COIL | 21007A | 21007-1135 | 1 | ||
| IGNITER | 21119 | 21119-1167 | 1 | ||
| COIL-IGNITION,#1 | 21121 | 21121-1144 | 1 | ||
| COIL-IGNITION,#2 | 21121A | 21121-1145 | 1 | ||
| CLAMP,WIRING HARNESS | 21126 | 21126-008 | 2 | ||
| CAP-SPARK PLUG | 21130 | 21130-1068 | 4 | ||
| GROMMET,HIGH TENSION | 21131 | 21131-005 | 4 | ||
| CAP-ASSY-PLUG | 21160 | 21160-1076 | 4 | ||
| COIL-PULSING | 59026 | 59026-1078 | 1 | ||
| NUT,FLANGED,6MM | 92015 | 92015-1193 | 2 | ||
| COLLAR,6.3X10X14 | 92027 | 92027-1453 | 2 | ||
| PLUG-SPARK,D8EA(NGK) | 92070 | 92070-1011 | 4 | (OPTION) | |
| PLUG-SPARK,X24ES-U(ND) | 92070A | 4 | (OPTION) | ||
| PLUG-SPARK,D9EA(NGK) | 92070B | 92070-1034 | 4 | ||
| PLUG-SPARK,X27ES-U(ND) | 92070C | 4 | (LOCAL PROCUREMENT ITEM) | ||
| GROMMET | 92071 | 92071-1174 | 4 | ||
| GROMMET,PLUG CAP | 92071A | 92071-1184 | 4 | ||
| DAMPER,IGNITER | 92075 | 92075-1504 | 1 | ||
| BOLT-SMALL-UPSET | 115 | 115G0835 | 1 | ||
| SCREW-PAN-CROS,5X25 | 220 | 220B0525 | 3 | ||
| SCREW-PAN-CROS,6X35 | 220A | 220B0635 | 2 |
| ROTOR,PULSING COIL | |
| REF # | 21007 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROTOR,PULSING COIL | |
| REF # | 21007A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| IGNITER | |
| REF # | 21119 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COIL-IGNITION,#1 | |
| REF # | 21121 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COIL-IGNITION,#2 | |
| REF # | 21121A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,WIRING HARNESS | |
| REF # | 21126 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CAP-SPARK PLUG | |
| REF # | 21130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| GROMMET,HIGH TENSION | |
| REF # | 21131 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CAP-ASSY-PLUG | |
| REF # | 21160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COIL-PULSING | |
| REF # | 59026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,6.3X10X14 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PLUG-SPARK,D8EA(NGK) | |
| REF # | 92070 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | (OPTION) |
| PLUG-SPARK,X24ES-U(ND) | |
| REF # | 92070A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | (OPTION) |
| PLUG-SPARK,D9EA(NGK) | |
| REF # | 92070B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PLUG-SPARK,X27ES-U(ND) | |
| REF # | 92070C |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | (LOCAL PROCUREMENT ITEM) |
| GROMMET | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| GROMMET,PLUG CAP | |
| REF # | 92071A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER,IGNITER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-SMALL-UPSET | |
| REF # | 115 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS,5X25 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS,6X35 | |
| REF # | 220A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
