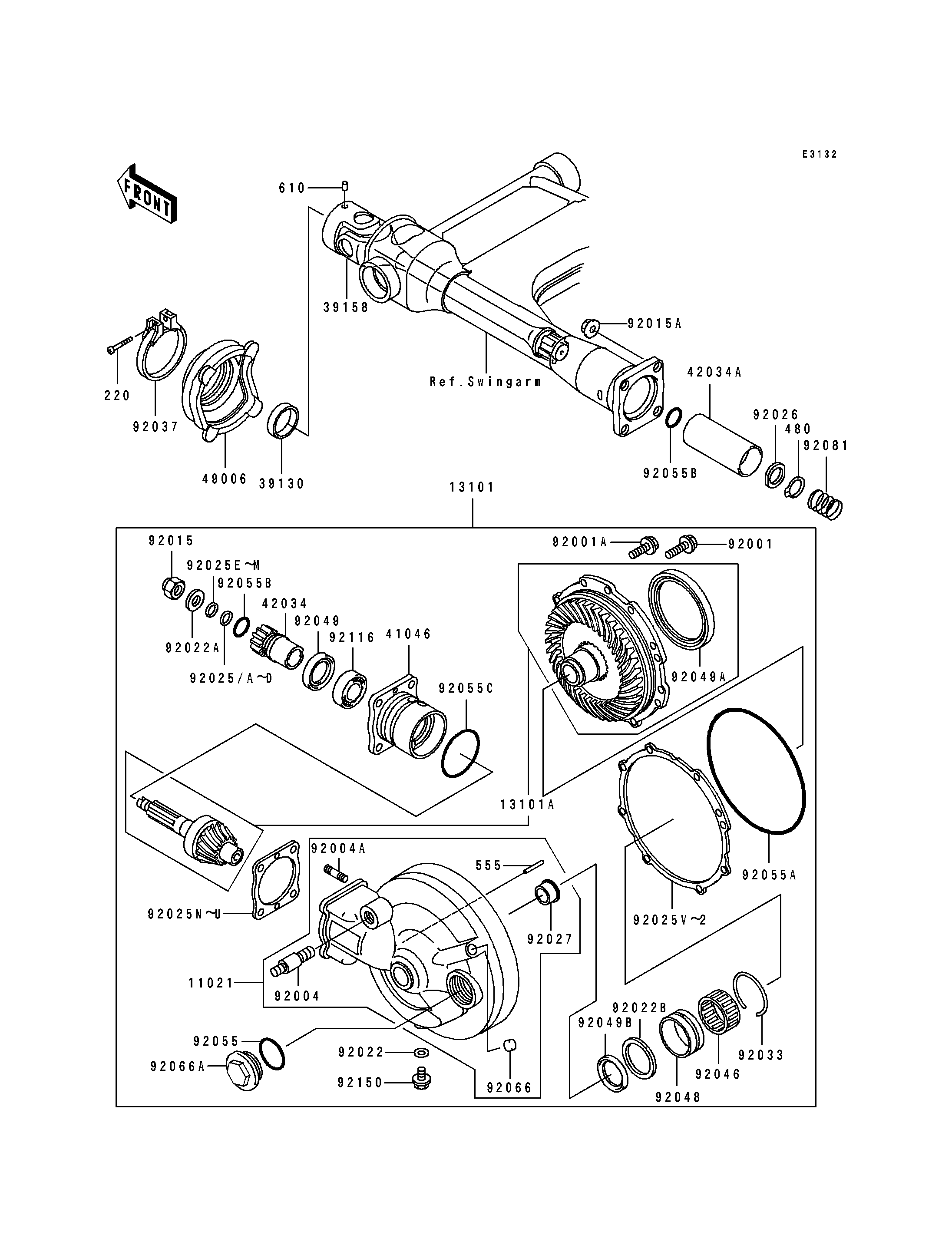

1997 Eliminator 600 - Drive Shaft/Final Gear
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CASE-ASSY,FINAL GEAR | 11021 | 11021-1105 | 1 | ||
GEAR-ASSY,FINAL | 13101 | 13101-1214 | 1 | ||
GEAR-ASSY,FINAL BEVEL | 13101A | 13101-5035 | 1 | ||
SPRING-LEAF | 39130 | 39130-1002 | 1 | ||
SHAFT-ASSY-DRIVE | 39158 | 39158-1060 | 1 | ||
HOUSING-BEARING,FINAL GEAR | 41046 | 41046-1097 | 1 | ||
COUPLING,DRIVE SHAFT,INNER | 42034 | 42034-1030 | 1 | ||
COUPLING,DRIVE SHAFT,OUTER | 42034A | 42034-1031 | 1 | ||
BOOT,PROPELLER SHAFT | 49006 | 49006-1059 | 1 | ||
BOLT,FLANGED,8X28 | 92001 | 92001-1095 | 6 | ||
BOLT,FLANGED,8X25 | 92001A | 92001-1324 | 2 | ||
STUD,RR SHOCKABSORBER | 92004 | 92004-1047 | 1 | ||
STUD,8X30,BLACK | 92004A | 92004-1126 | 4 | ||
NUT,12MM | 92015 | 92015-1182 | 1 | ||
NUT,8MM | 92015A | 92015-1936 | 4 | ||
WASHER,8.2X16X1 | 92022 | 92022-1086 | 1 | ||
WASHER,12.3X25X3.2 | 92022A | 92022-1293 | 1 | ||
WASHER,39X49.5X1 | 92022B | 92022-1294 | 1 | ||
SHIM,12.5X17X1.30 | 92025 | 92025-1282 | AR | ||
SHIM,12.5X17X1.32 | 92025A | 92025-1283 | AR | ||
SHIM,12.5X17X1.34 | 92025B | 92025-1284 | AR | ||
SHIM,12.5X17X1.36 | 92025C | 92025-1285 | AR | ||
SHIM,12.5X17X1.38 | 92025D | 92025-1286 | AR | ||
SHIM,12.5X17X0.1 | 92025E | 92025-1287 | AR | ||
SHIM,12.5X17X0.2 | 92025F | 92025-1288 | AR | ||
SHIM,12.5X17X0.3 | 92025G | 92025-1289 | AR | ||
SHIM,12.5X17X0.5 | 92025H | 92025-1290 | AR | ||
SHIM,12.5X17X0.6 | 92025I | 92025-1291 | AR | ||
SHIM,12.5X17X0.7 | 92025J | 92025-1292 | AR | ||
SHIM,12.5X17X0.8 | 92025K | 92025-1293 | AR | ||
SHIM,12.5X17X0.9 | 92025L | 92025-1294 | AR | ||
SHIM,12.5X17X1.0 | 92025M | 92025-1295 | AR | ||
SHIM,T=0.15 | 92025N | 92025-1312 | AR | ||
SHIM,T=0.5 | 92025O | 92025-1313 | AR | ||
SHIM,T=0.6 | 92025P | 92025-1314 | AR | ||
SHIM,T=0.7 | 92025Q | 92025-1315 | AR | ||
SHIM,T=0.8 | 92025R | 92025-1316 | AR | ||
SHIM,T=0.9 | 92025S | 92025-1317 | AR | ||
SHIM,T=1.0 | 92025T | 92025-1318 | AR | ||
SHIM,T=1.2 | 92025U | 92025-1319 | AR | ||
SHIM,T=0.15 | 92025V | 92025-1336 | AR | ||
SHIM,T=0.5 | 92025W | 92025-1337 | AR | ||
SHIM,T=0.6 | 92025X | 92025-1338 | AR | ||
SHIM,T=0.7 | 92025Y | 92025-1339 | AR | ||
SHIM,T=0.8 | 92025Z | 92025-1340 | AR | ||
SHIM,T=0.9 | 920250 | 92025-1341 | AR | ||
SHIM,T=1.0 | 920251 | 92025-1342 | AR | ||
SHIM,T=1.2 | 920252 | 92025-1343 | AR | ||
SPACER,DRIVE SHAFT | 92026 | 92026-1106 | 1 | ||
COLLAR | 92027 | 92027-1412 | 1 | ||
RING-SNAP,52MM | 92033 | 92033-1074 | 1 | ||
CLAMP,BOOT FITTING | 92037 | 92037-1112 | 1 | ||
BEARING-NEEDLE,KTV384620E01 C3 | 92046 | 92046-1057 | 1 | ||
RACE,ORT465021E01 | 92048 | 92048-1019 | 1 | ||
SEAL-OIL,SC28438 | 92049 | 92049-1084 | 1 | ||
SEAL-OIL,SC759510 | 92049A | 92049-1085 | 1 | ||
SEAL-OIL,SC32435.5 | 92049B | 92049-1155 | 1 | ||
RING-O,36MM | 92055 | 92055-1005 | 1 | ||
RING-O,ID=150.4 | 92055A | 92055-1039 | 1 | ||
RING-O,27MM | 92055B | 92055-1119 | 2 | ||
RING-O,55MM | 92055C | 92055-1120 | 1 | ||
PLUG | 92066 | 92066-1110 | 1 | ||
PLUG,OIL FILTER CAP | 92066A | 92066-1402 | 1 | ||
SPRING,DRIVE SHAFT | 92081 | 92081-1427 | 1 | ||
BEARING-ROLLER,4T32004X | 92116 | 92116-1010 | 1 | ||
BOLT,8X12 | 92150 | 92150-1780 | 1 | ||
SCREW-PAN-CROS | 220 | 220B0430 | 1 | ||
CIRCLIP-TYPE-C,20MM | 480 | 480J2000 | 1 | ||
PIN-SPRING | 555 | 555A0428 | 1 | ||
ROLLER,4X6 | 610 | 610A0406 | 1 |
CASE-ASSY,FINAL GEAR | |
REF # | 11021 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR-ASSY,FINAL | |
REF # | 13101 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR-ASSY,FINAL BEVEL | |
REF # | 13101A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING-LEAF | |
REF # | 39130 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT-ASSY-DRIVE | |
REF # | 39158 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOUSING-BEARING,FINAL GEAR | |
REF # | 41046 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COUPLING,DRIVE SHAFT,INNER | |
REF # | 42034 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COUPLING,DRIVE SHAFT,OUTER | |
REF # | 42034A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOOT,PROPELLER SHAFT | |
REF # | 49006 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,8X28 | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,8X25 | |
REF # | 92001A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
STUD,RR SHOCKABSORBER | |
REF # | 92004 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STUD,8X30,BLACK | |
REF # | 92004A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT,12MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,8MM | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER,8.2X16X1 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,12.3X25X3.2 | |
REF # | 92022A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,39X49.5X1 | |
REF # | 92022B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHIM,12.5X17X1.30 | |
REF # | 92025 |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,12.5X17X1.32 | |
REF # | 92025A |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,12.5X17X1.34 | |
REF # | 92025B |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,12.5X17X1.36 | |
REF # | 92025C |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,12.5X17X1.38 | |
REF # | 92025D |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,12.5X17X0.1 | |
REF # | 92025E |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,12.5X17X0.2 | |
REF # | 92025F |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,12.5X17X0.3 | |
REF # | 92025G |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,12.5X17X0.5 | |
REF # | 92025H |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,12.5X17X0.6 | |
REF # | 92025I |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,12.5X17X0.7 | |
REF # | 92025J |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,12.5X17X0.8 | |
REF # | 92025K |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,12.5X17X0.9 | |
REF # | 92025L |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,12.5X17X1.0 | |
REF # | 92025M |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=0.15 | |
REF # | 92025N |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=0.5 | |
REF # | 92025O |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=0.6 | |
REF # | 92025P |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=0.7 | |
REF # | 92025Q |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=0.8 | |
REF # | 92025R |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=0.9 | |
REF # | 92025S |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=1.0 | |
REF # | 92025T |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=1.2 | |
REF # | 92025U |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=0.15 | |
REF # | 92025V |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=0.5 | |
REF # | 92025W |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=0.6 | |
REF # | 92025X |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=0.7 | |
REF # | 92025Y |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=0.8 | |
REF # | 92025Z |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=0.9 | |
REF # | 920250 |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=1.0 | |
REF # | 920251 |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=1.2 | |
REF # | 920252 |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SPACER,DRIVE SHAFT | |
REF # | 92026 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92027 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-SNAP,52MM | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,BOOT FITTING | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-NEEDLE,KTV384620E01 C3 | |
REF # | 92046 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RACE,ORT465021E01 | |
REF # | 92048 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,SC28438 | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,SC759510 | |
REF # | 92049A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,SC32435.5 | |
REF # | 92049B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O,36MM | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O,ID=150.4 | |
REF # | 92055A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O,27MM | |
REF # | 92055B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-O,55MM | |
REF # | 92055C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLUG | |
REF # | 92066 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLUG,OIL FILTER CAP | |
REF # | 92066A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,DRIVE SHAFT | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-ROLLER,4T32004X | |
REF # | 92116 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,8X12 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW-PAN-CROS | |
REF # | 220 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CIRCLIP-TYPE-C,20MM | |
REF # | 480 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN-SPRING | |
REF # | 555 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROLLER,4X6 | |
REF # | 610 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
