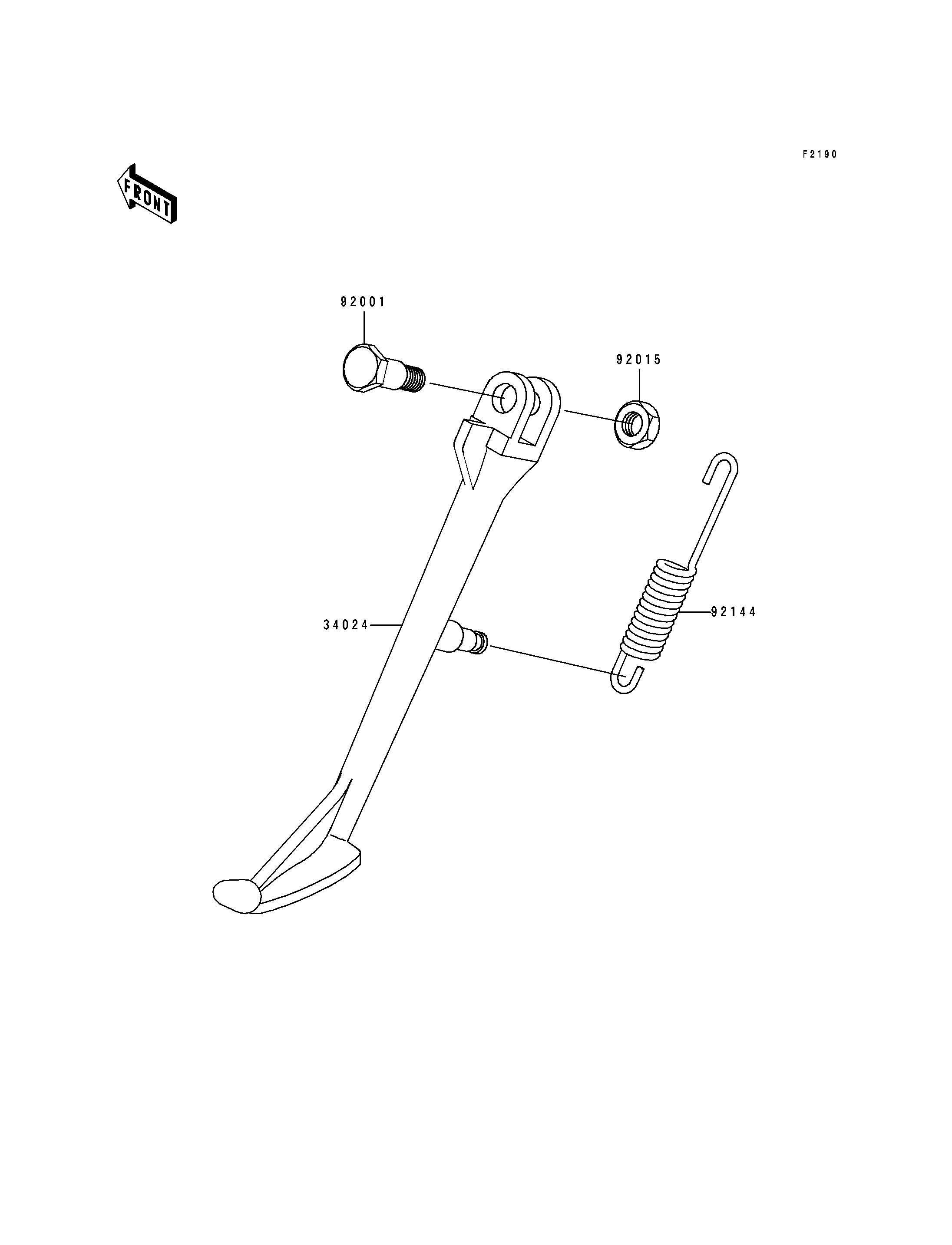

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STAND-SIDE,BLACK 34024 34024-1213-10 1
BOLT,SIDE STAND,BLACK 92001 92001-1543 1
NUT,LOCK,10MM,BLACK 92015 92015-1188 1
SPRING,SIDE STAND 92144 92144-1008 1
