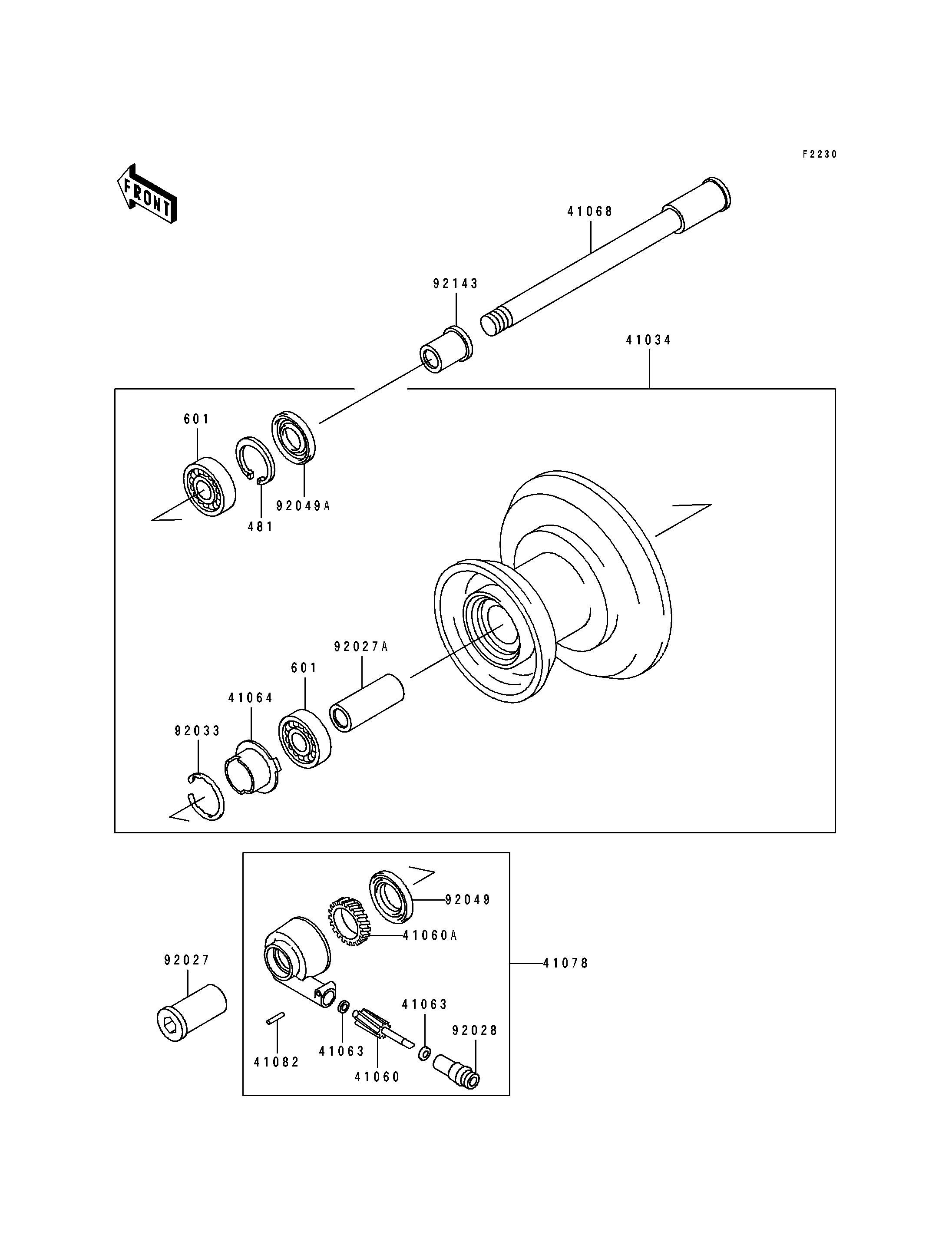

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DRUM-ASSY,FRONT BRAKE 41034 41034-1251 1
GEAR-METER SCREW,9T 41060 41060-1123 1
GEAR-METER SCREW,25T 41060A 41060-1151 1
WASHER,5.1X9X0.4 41063 41063-001 2
RECEIVER-SPEEDOMETER 41064 41064-1006 1
AXLE,FR 41068 41068-1175 1
CASE-ASSY-METER GEAR 41078 41078-1102 1
PIN,SPRING 41082 41082-001 1
COLLAR,FR AXLE,L=36.5 92027 92027-1726 1
COLLAR,L=70 92027A 92027-1866 1
BUSHING,SPEEDOMETER 92028 92028-1066 1
RING-SNAP,42MM 92033 92033-1041 1
SEAL-OIL,BJN30427-C3 92049 92049-1057 1
SEAL-OIL,MH20354.5 92049A 92049-1176 1
COLLAR,FR AXLE,L=24 92143 92143-1187 1
CIRCLIP-TYPE-C,35MM 481 481J3500 1
BEARING-BALL,#6202UG 601 601B6202UG 2
