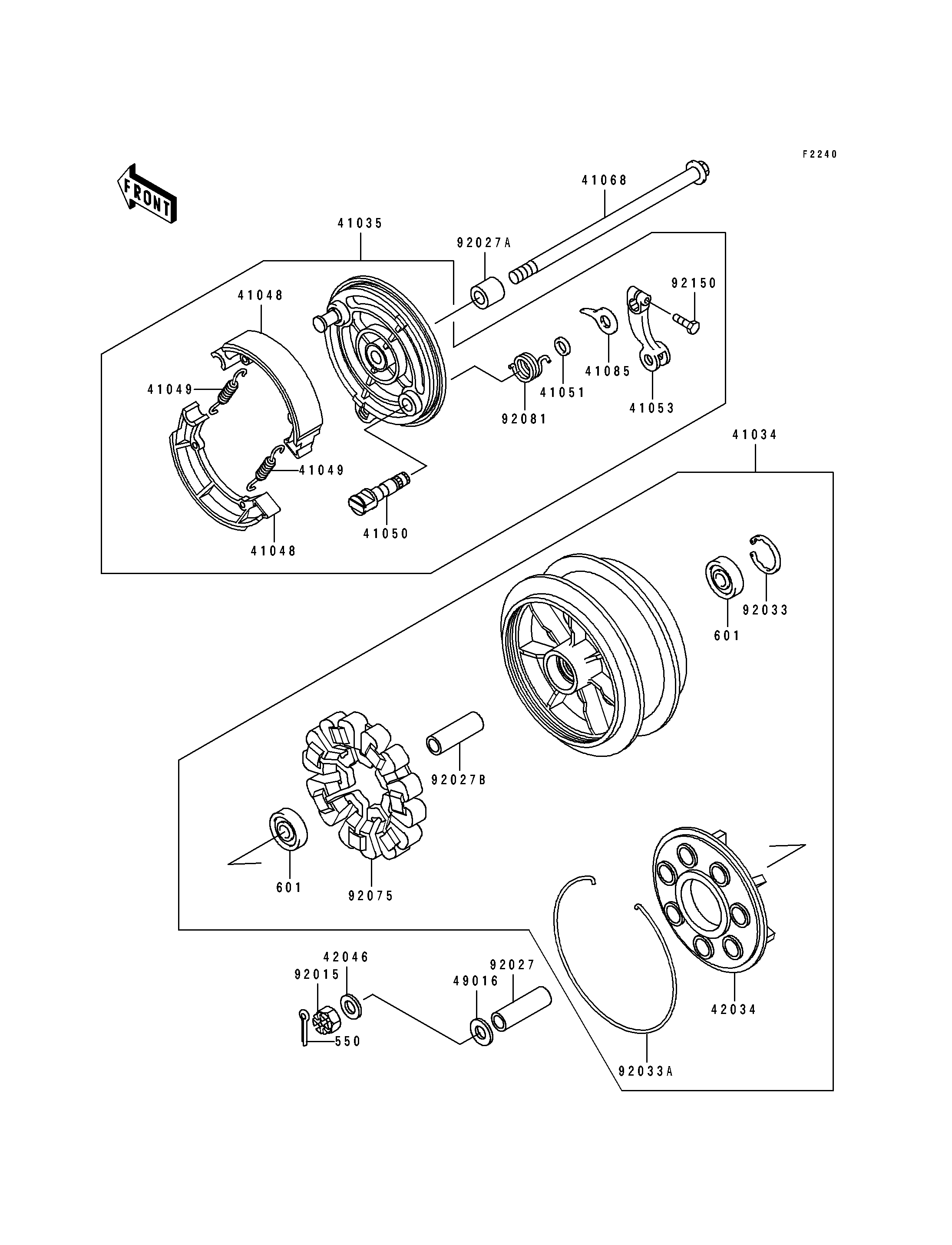

1997 Eliminator 600 - Rear Wheel/Chain
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
DRUM-ASSY,REAR BRAKE | 41034 | 41034-1239 | 1 | ||
PANEL-ASSY-BRAKE,RR | 41035 | 41035-1465 | 1 | ||
SHOE-BRAKE | 41048 | 41048-1070 | 2 | ||
SPRING,BRAKE SHOE | 41049 | 41049-012 | 2 | ||
CAM-BRAKE | 41050 | 41050-017 | 1 | ||
SEAL,BRAKE CAM | 41051 | 41051-003 | 1 | ||
LEVER-BRAKE CAM | 41053 | 41053-1072 | 1 | ||
AXLE,RR | 41068 | 41068-1223 | 1 | ||
INDICATOR | 41085 | 41085-1054 | 1 | ||
COUPLING,RR HUB | 42034 | 42034-1029 | 1 | ||
WASHER,17.3X32X3.2 | 42046 | 42046-009 | 1 | ||
COVER-SEAL,RR AXLE | 49016 | 49016-1038 | 1 | ||
NUT,CASTLE,16MM | 92015 | 92015-1951 | 1 | ||
COLLAR,17.2X25X79 | 92027 | 92027-1415 | 1 | ||
COLLAR,AXLE,RR,RH,L=28.5 | 92027A | 92027-1550 | 1 | ||
COLLAR,17.2X25X74 | 92027B | 92027-1867 | 1 | ||
RING-SNAP,47MM | 92033 | 92033-1042 | 1 | ||
RING-SNAP,194MM | 92033A | 92033-1075 | 1 | ||
DAMPER,RR HUB SHOCK | 92075 | 92075-1372 | 1 | ||
SPRING,BRAKE CAM LEVER RETURN | 92081 | 92081-1814 | 1 | ||
BOLT,8X27 | 92150 | 92150-1797 | 1 | ||
PIN-COTTER,4.0X35 | 550 | 550D4035 | 1 | ||
BEARING-BALL,#6303UUC3 | 601 | 601B6303UU | 2 |
