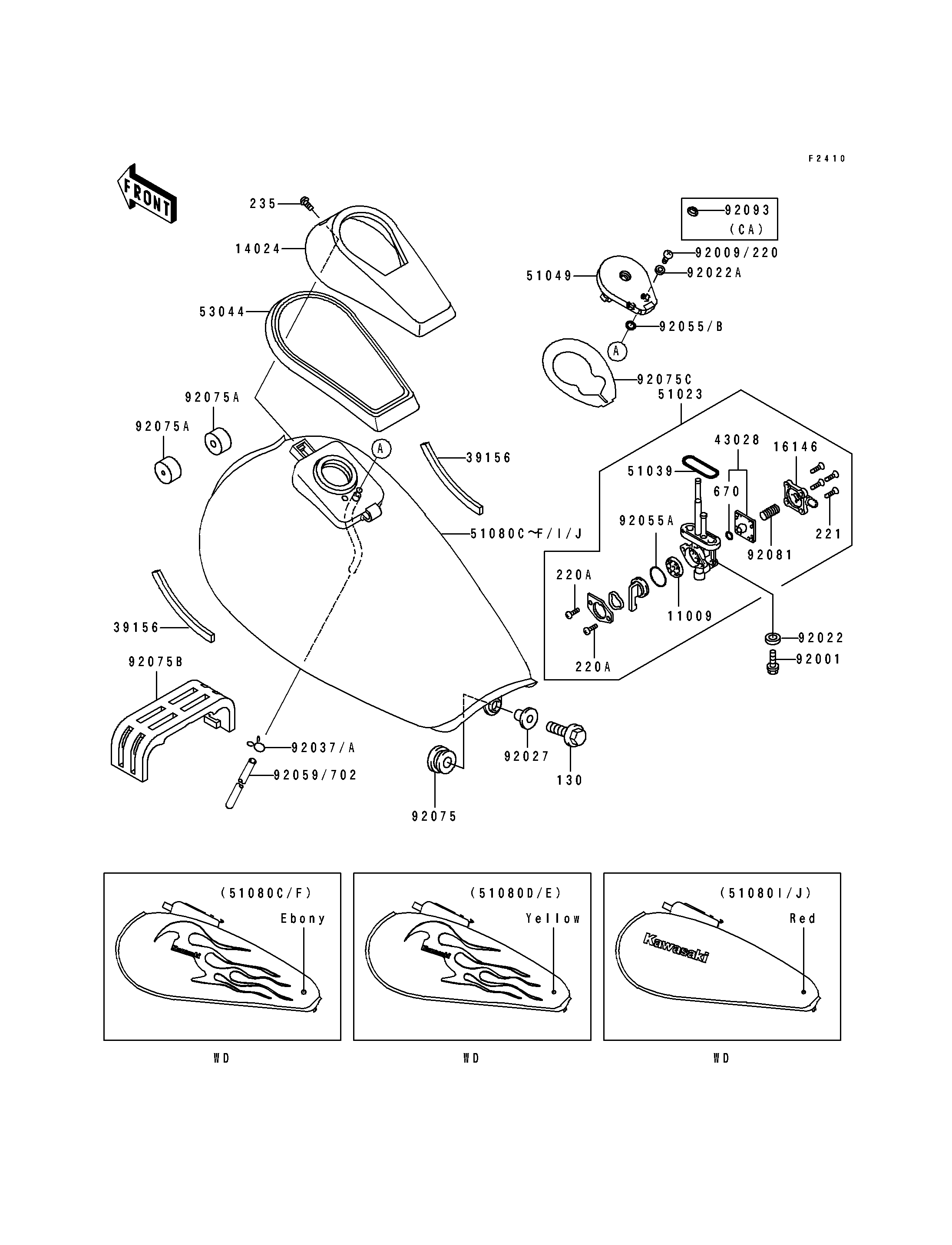

1997 Eliminator 600 - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,TAP VALVE 11009 11009-1188 1
COVER,FUEL TANK CAP,EBONY 14024 14024-1522-H8 1
COVER-ASSY,TAP DIAPHRAGM 16146 16146-1010 1
PAD,FUEL TANK 39156 39156-1425 2
DIAPHRAGM,TAP 43028 43028-1021 1
TAP-ASSY,FUEL 51023 51023-1157 1
RING,TAP FLANGED 51039 51039-003 1
CAP-TANK,FUEL 51049 51049-1088 1
TANK-COMP-FUEL,F.RED 51080I 51080-5330-B1 1
TANK-COMP-FUEL,F.RED 51080J 51080-5331-B1 1
TRIM,FUEL TANK CAP COVER 53044 53044-1197 1
BOLT,6X20 92001 92001-1091 2
SCREW,5X10 92009 92009-1760 2
WASHER,6.2X11X1.5 92022 92022-183 2
WASHER,5.1X10X1.0 92022A 92022-1977 2
COLLAR,L=14.1 92027 92027-1920 1
CLAMP,TUBE 92037 92037-010 1
CLAMP,TUBE 92037A 92037-147 1
RING-O 92055 92055-1023 2
RING-O,TAP LEVER 92055A 92055-1085 1
RING-O,ID=9 92055B 92055-1552 2
TUBE,5X10X770,RED 92059 92059-1731 1
DAMPER 92075 92075-1057 1
DAMPER,FUEL TANK 92075A 92075-125 2
DAMPER,FUEL TANK,CNT 92075B 92075-1848 1
DAMPER,FUEL TANK CAP 92075C 92075-1970 1
SPRING,TAP DIAPHRAGM 92081 92081-1240 1
SEAL,FUEL TANK CAP 92093 92093-1030 1
BOLT-FLANGED,6X25 130 130B0625 1
SCREW-PAN-CROS 220 220D0510 2
SCREW-PAN-CROS,3X8 220A 220E0308 2
SCREW-CSK-CROS,4X14 221 221B0414 4
SCREW-PAN-WP-CROS 235 235C0510 1
O RING,4MM 670 670B1504 1
TUBE-RUBBER,6X9X750 702 702A06750 1
