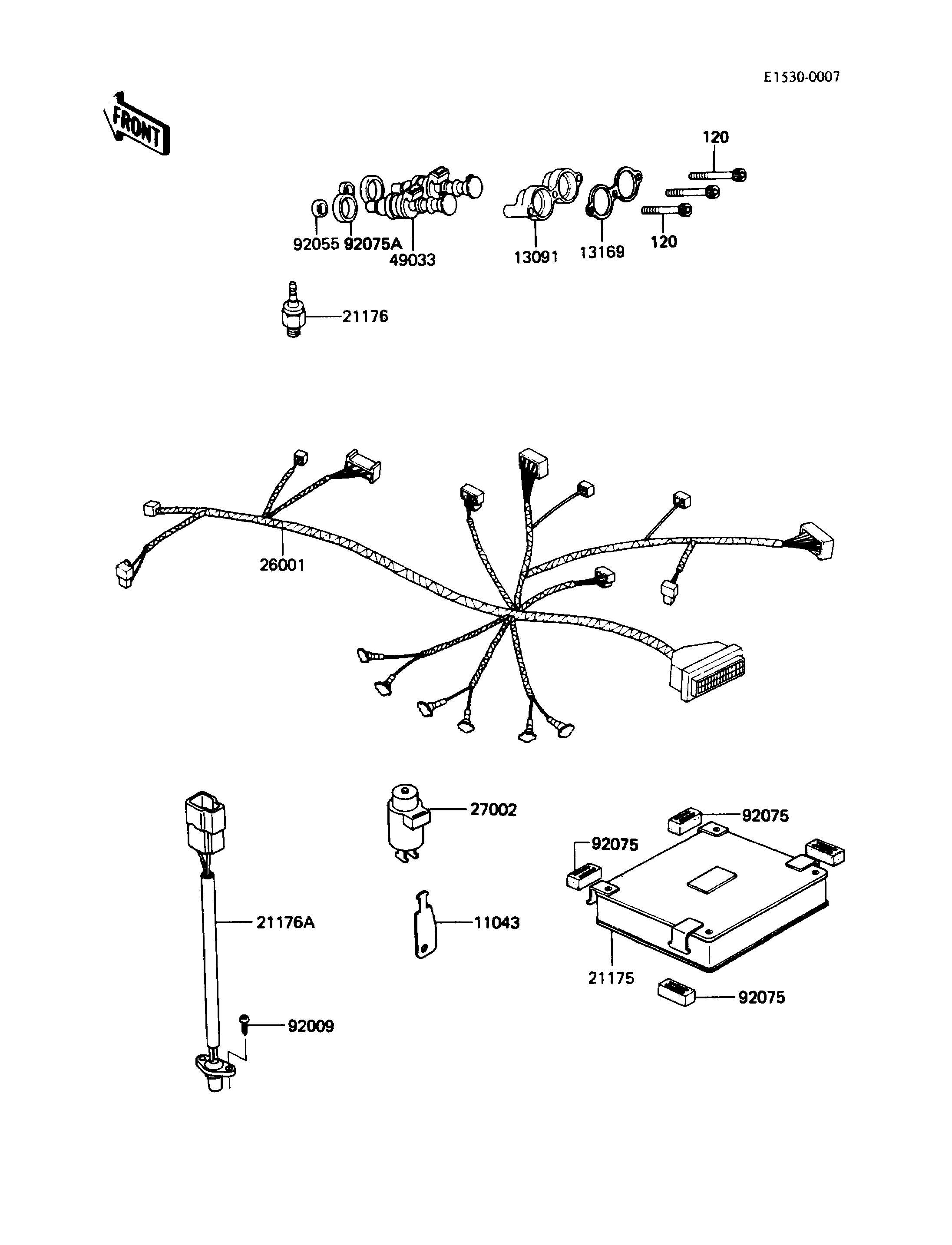

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-B,DFI PUMP RELAY 11043 11043-1318 1
HOLDER,INJECTION NOZZLE 13091 13091-1184 3
PLATE,INJECTION NOZZLE 13169 13169-1605 3
CONTROL UNIT-ELECTRONIC,FUEL 21175 21175-1008 1
SENSOR-TEMPERATURE 21176 21176-1002 1
SENSOR,AIR-TEMPERATURE 21176A 21176-1003 1
HARNESS,D.F.I 26001 26001-1567 1
RELAY-ASSY 27002 27002-1051 1
NOZZLE-INJECTION 49033 49033-1002 6
SCREW,TAPPING,3X12 92009 92009-1028 2
RING-O,FUEL INJECT 92055 92055-1082 6
DAMPER,ELECTRONIC CONTROL UNIT 92075 92075-1312 4
DAMPER,FUEL INJECT 92075A 92075-1617 6
BOLT-SOCKET 120 120S0540 9
