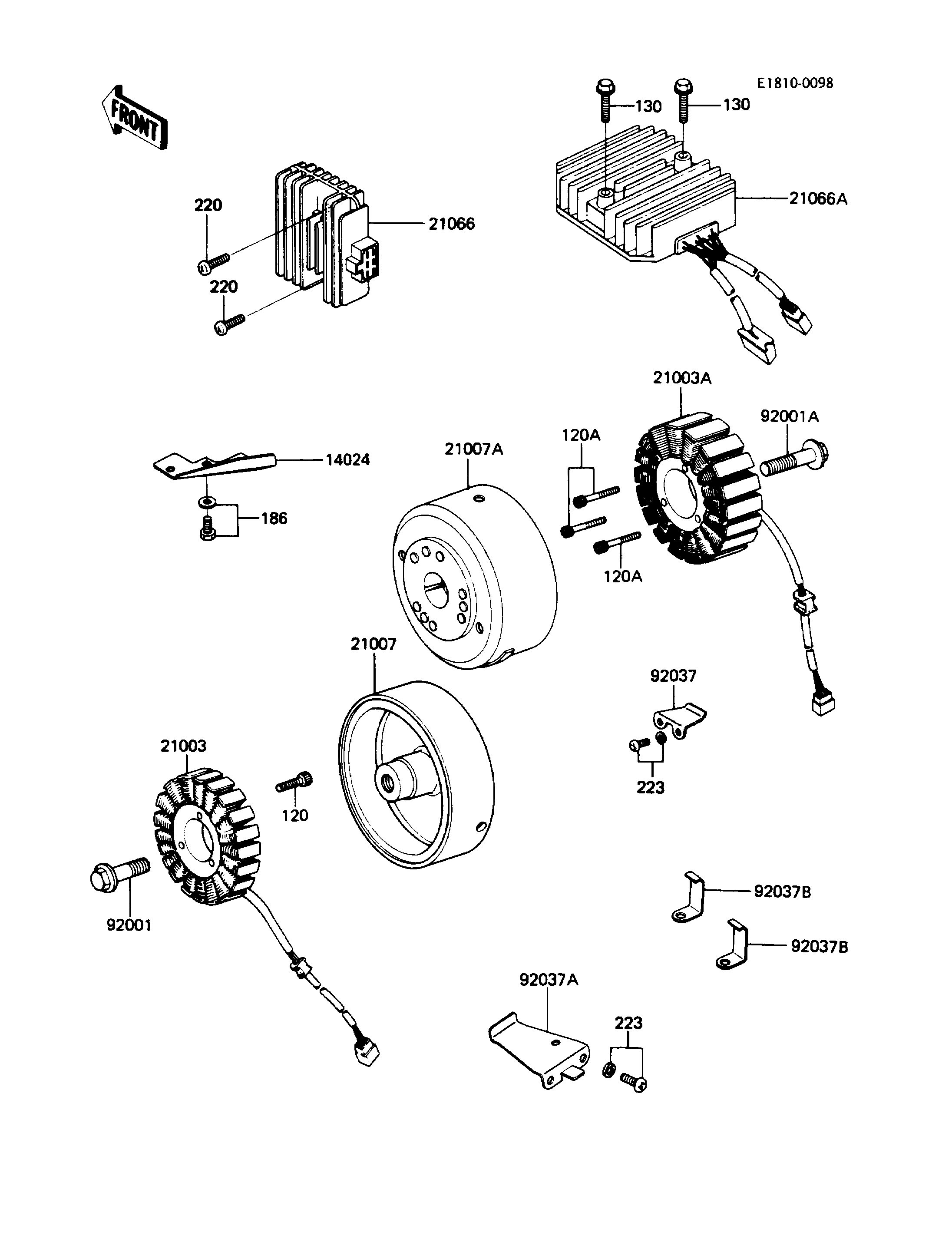

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,GENERATOR LEAD 14024 14025-1391 1
STATOR,LH 21003 21003-1064 1
STATOR,RH 21003A 21003-1104 1
ROTOR,LH 21007 21007-1051 1
ROTOR,RH 21007A 21007-1073 1
REGULATOR-VOLTAGE 21066 21066-1038 1
REGULATOR-VOLTAGE 21066A 21066-1051 1
BOLT,FLANGED,12X40 92001 92001-1012 1
BOLT,FLANGED,12X40 92001A 92001-1146 1
CLAMP,GENERATOR LEAD 92037 92037-1287 1
CLAMP,LEAD WIRE 92037A 92037-1343 1
CLAMP,LEAD WIRE 92037B 92037-1345 2
BOLT-SOCKET,5X30 120 120P0530 3
BOLT-SOCKET,6X35 120A 120P0635 3
BOLT-FLANGED,5X35 130 130B0535 2
BOLT-UPSET-WP 186 186D0610 2
SCREW-PAN-CROS,6X20,WHITE 220 220B0620 2
SCREW-PAN-WS-CROS 223 223B0510 4
