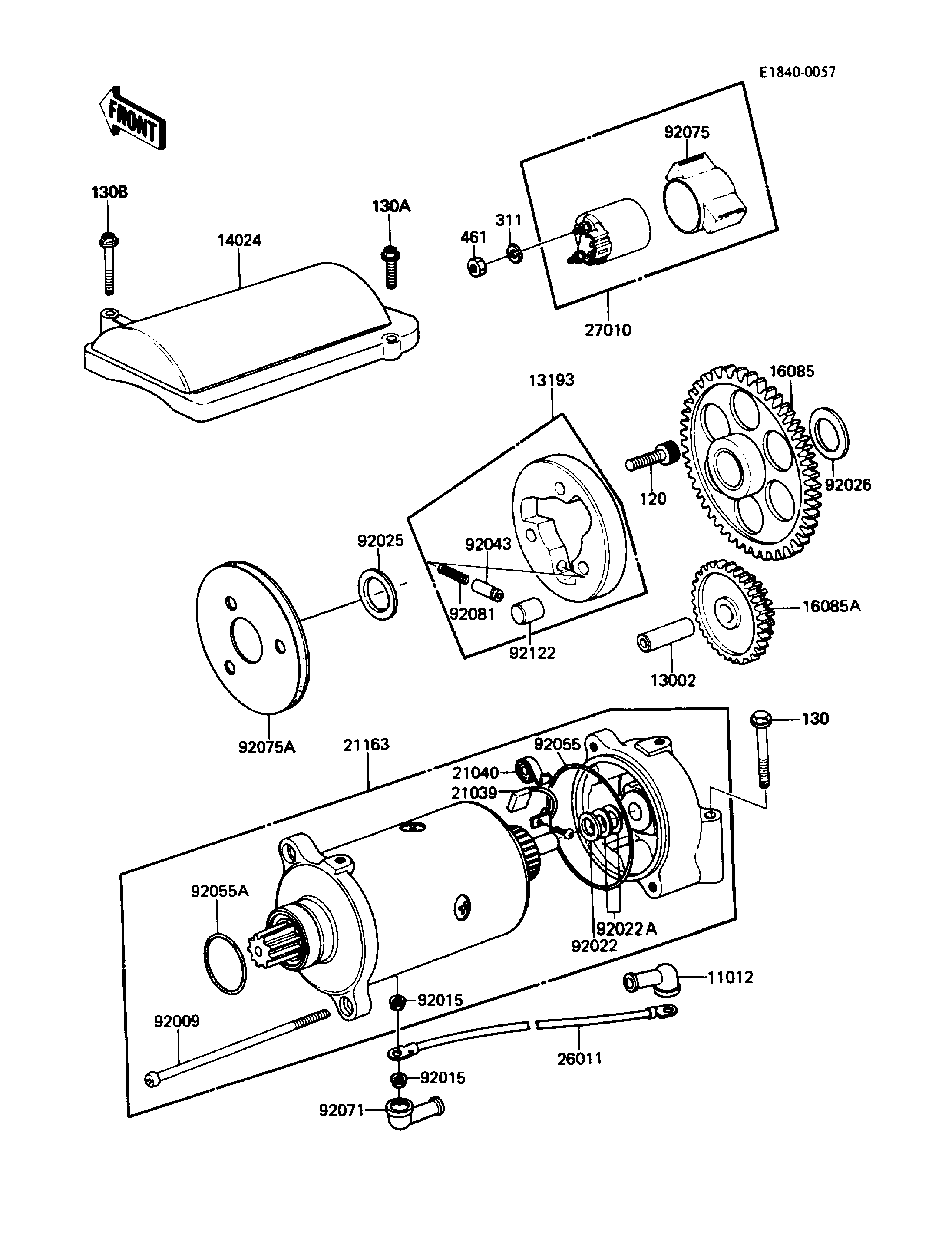

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP,TERMINAL | 11012 | 11012-1354 | 1 | ||
PIN-PISTON | 13002 | 13002-019 | 1 | ||
CLUTCH-ASSY-ONEWAY | 13193 | 13193-1012 | 1 | ||
COVER,STARTER MOTOR | 14024 | 14025-1752 | 1 | ||
GEAR,STARTER CLUTCH,66T | 16085 | 16085-1040 | 1 | ||
GEAR,STARTER REDUCTION,65TX16T | 16085A | 16085-1041 | 1 | ||
BRUSH,CARBON | 21039 | 21039-003 | 2 | ||
SPRING-BRUSH | 21040 | 21040-003 | 2 | ||
STARTER-ELECTRIC | 21163 | 21163-1059 | 1 | ||
WIRE-LEAD,STARTER MOTOR | 26011 | 26011-1263 | 1 | ||
SWITCH,MAGNETIC | 27010 | 27010-1098 | 1 | ||
SCREW,PAN HEAD,5X110 | 92009 | 21015-005 | 2 | ||
NUT,FLANGED,6MM | 92015 | 92015-1195 | 2 | ||
WASHER,THRUST,T=1.6 | 92022 | 21025-010 | 1 | ||
WASHER,9.1X18X0.2 | 92022A | 21025-011 | AR | ||
SHIM,25.3X36X0.30 | 92025 | 92025-1019 | 1 | ||
SPACER,25.0X34X2.3 | 92026 | 92026-1059 | 1 | ||
PIN | 92043 | 92043-087 | 3 | ||
RING-O,STARTER MOTOR | 92055 | 21027-003 | 2 | ||
RING-O,STARTER MOTOR,25MM | 92055A | 21027-004 | 1 | ||
GROMMET,STARTER TERMINAL | 92071 | 21017-017 | 1 | ||
DAMPER,MAGNETIC SWITCH | 92075 | 21064-002 | 1 | ||
DAMPER | 92075A | 92075-1390 | 1 | ||
SPRING | 92081 | 92081-110 | 3 | ||
ROLLER,15X13 | 92122 | 92122-004 | 3 | ||
BOLT-SOCKET,8X25 | 120 | 120P0825 | 3 | ||
BOLT-FLANGED,6X55 | 130 | 130G0655 | 2 | ||
BOLT-FLANGED | 130A | 130N0625 | 1 | ||
BOLT-FLANGED | 130B | 130N0640 | 1 | ||
NUT-HEX,6MM | 311 | 311B0600 | 2 | ||
WASHER-SPRING,6MM | 461 | 461F0600 | 2 |
