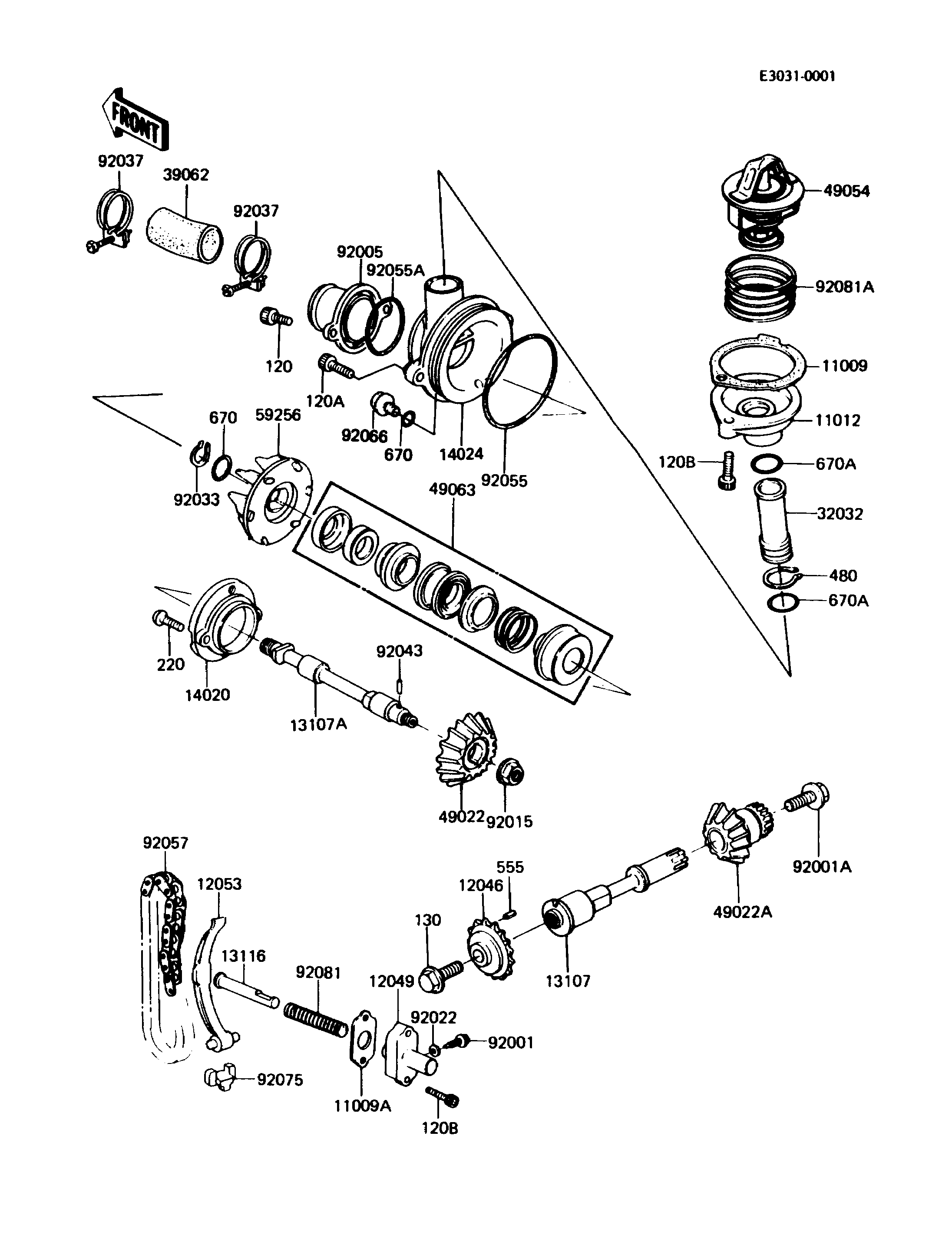

1987 Voyager - Water Pump

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,THERMOSTAT CAP 11009 11009-1087 1
GASKET,TIMING CHAIN TENSIONER 11009A 11009-1099 1
CAP,THERMOSTAT 11012 11012-1054 1
SPROCKET,TIMING CHAIN 12046 12046-1015 1
TENSIONER,TIMING CHAIN 12049 12049-1007 1
GUIDE-CHAIN,TIMING 12053 12053-1027 1
SHAFT,WATER PUMP DRIVE 13107 13107-1009 1
SHAFT,WATER PUMP 13107A 13107-1011 1
ROD-PUSH,TENSIONER 13116 13116-1014 1
RETAINER,MECHANICAL SEAL 14020 14020-1004 1
COVER,WATER PUMP 14024 14025-1864 1
PIPE,WATER BYPASS 32032 32032-1184 1
HOSE-COOLING,31X39X85 39062 39062-1020 1
GEAR-BEVEL,WATER PUMP 49022 49022-1006 1
GEAR-BEVEL,WATER PUMP 49022A 49022-1015 1
THERMOSTAT 49054 49054-1001 1
SEAL-MECHANICAL 49063 49063-1001 1
IMPELLER,WATER PUMP 59256 59256-1001 1
BOLT,TENSIONER ADJUST 92001 92001-1155 1
BOLT,FLANGED,8X17 92001A 92001-1371 1
FITTING,SUCTION 92005 92005-1011 1
NUT,FLANGED,8MM 92015 92015-1014 1
WASHER,6.1X12X1 92022 92022-077 1
RING-SNAP,11MM 92033 92033-1024 1
CLAMP,HOSE 92037 92037-1177 2
PIN,DOWEL,4X15.8 92043 92042-014 1
RING-O,67MM 92055 92055-1032 1
RING-O,OR2037 92055A 92055-1033 1
CHAIN,TIMING,BF25HX72L 92057 92057-1019 1
PLUG,DRAIN,8X10 92066 92066-1026 1
DAMPER,TIMING CHAIN GUIDE 92075 92075-1187 1
SPRING,TENSIONER 92081 92081-1102 1
SPRING,THERMOSTAT 92081A 92081-1104 1
BOLT-SOCKET 120 120Z0616 2
BOLT-SOCKET 120A 120Z0620 2
BOLT-SOCKET 120B 120Z0625 4
BOLT-FLANGED,8X20 130 130G0820 1
SCREW-PAN-CROS 220 220R0516 2
CIRCLIP-TYPE-C,20MM 480 480J2000 1
PIN-SPRING,4X8 555 555A0408 1
O RING,8MM 670 670B1508 2
O RING,16MM 670A 670B2016 2
