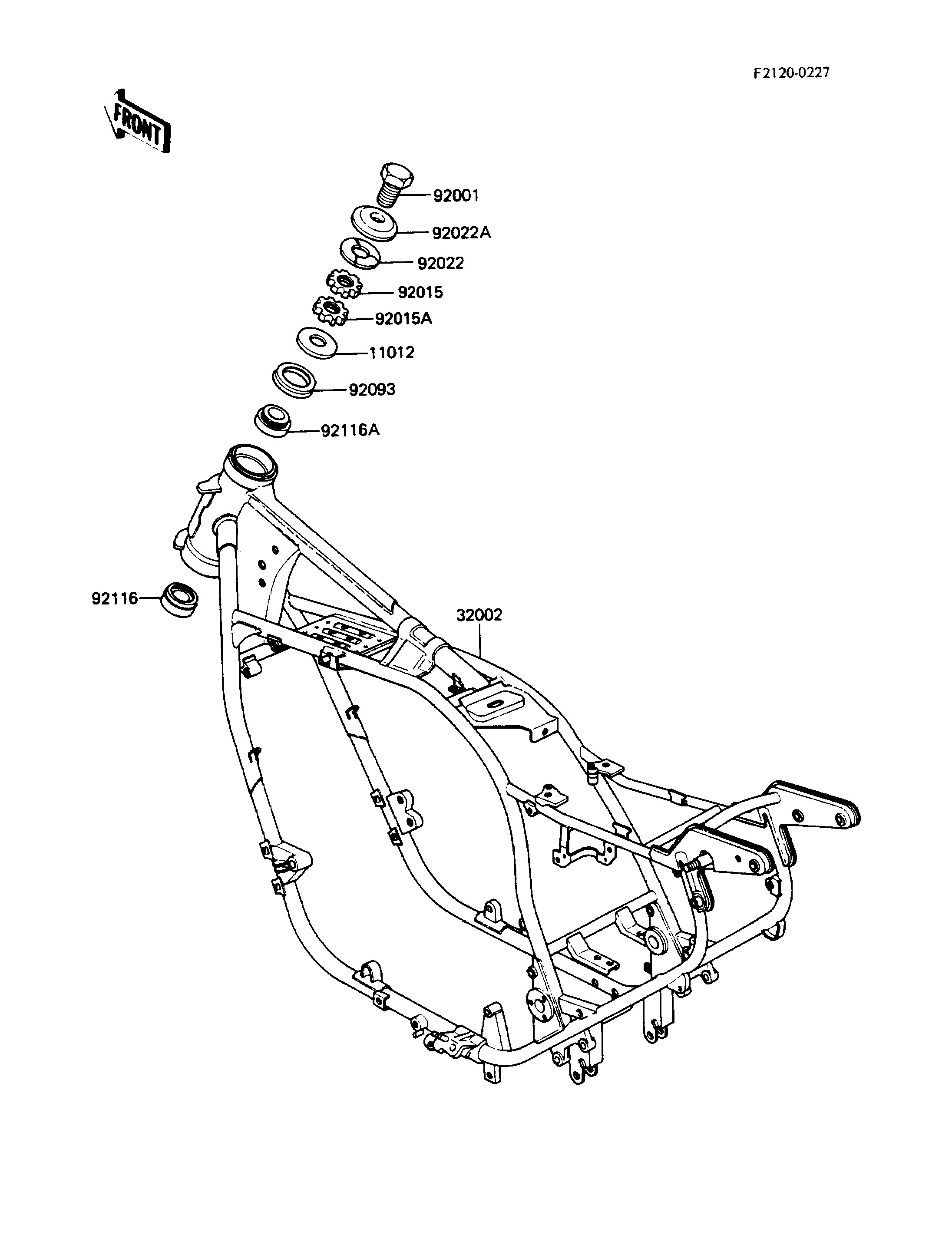

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,STEERING 11012 11012-1206 1
FRAME-COMP 32002 32002-1585 1
BOLT,16X25.5 92001 92007-031 1
NUT,28MM,T=6 92015 92015-1417 1
NUT,28MM,T=8.5 92015A 92015-1418 1
WASHER,WAVE 92022 46100-003 1
WASHER,16X41X4 92022A 92022-230 1
SEAL,STEERING 92093 92093-1070 1
BEARING-ROLLER,LWR,32006JR RS 92116 92116-1008 1
BEARING-ROLLER,HR320/28XJ 92116A 92116-1009 1
