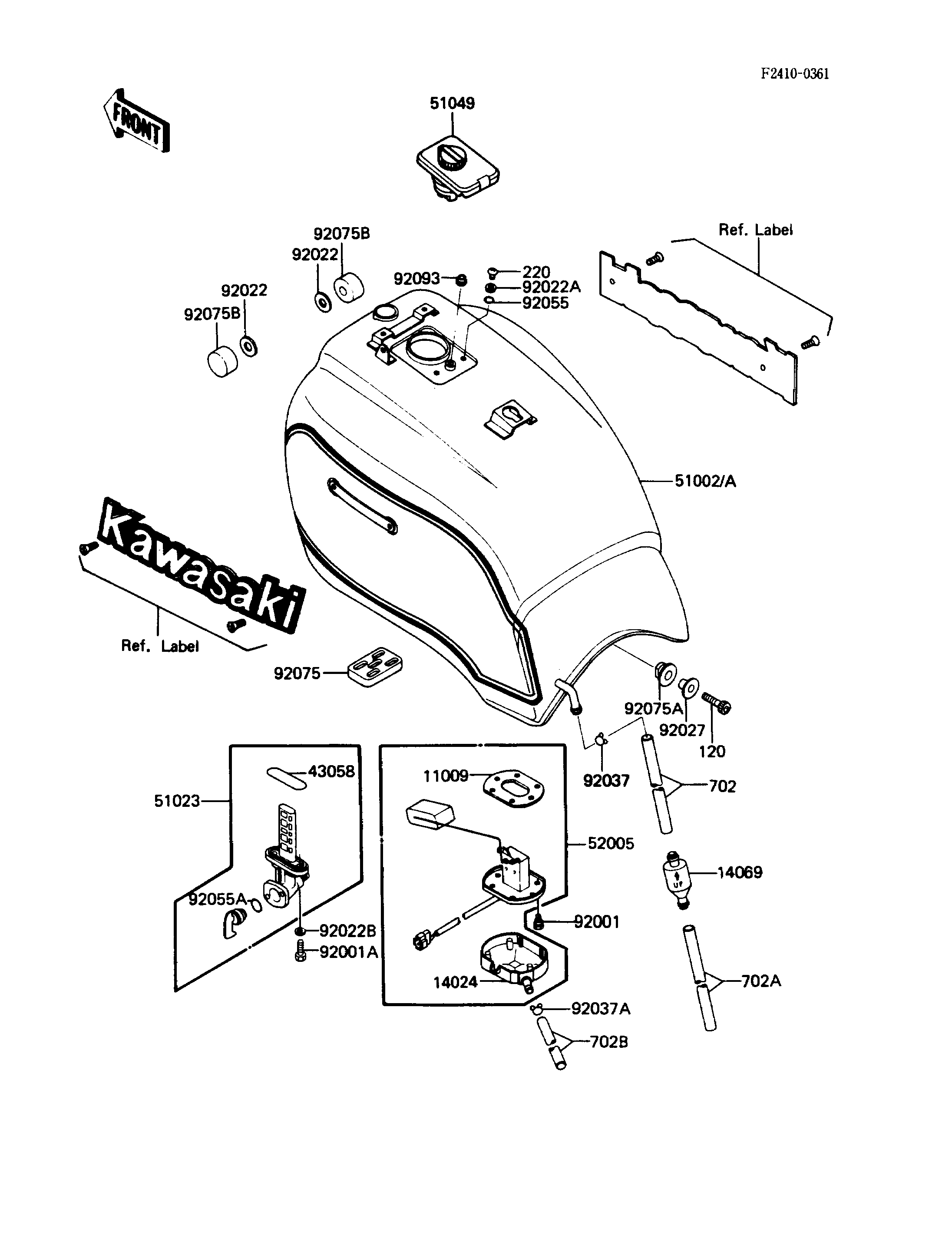

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,FUEL GAUGE | 11009 | 11009-1037 | 1 | ||
| COVER,FUEL GAUGE | 14024 | 14025-1400 | 1 | ||
| BREATHER,FUEL TANK | 14069 | 14069-1004 | 1 | US | |
| RING,TAP FLANGED | 43058 | 51039-010 | 1 | ||
| TANK-COMP-FUEL,RED/GRAYSTONE | 51002 | 51002-5160-T1 | 1 | US | |
| TANK-COMP-FUEL,RED/GRAYSTONE | 51002A | 51002-5164-T1 | 1 | CA | |
| TAP-ASSY | 51023 | 51023-1054 | 1 | ||
| CAP-TANK,FUEL | 51049 | 51049-1059 | 1 | ||
| GAUGE,FUEL | 52005 | 52005-1053 | 1 | ||
| BOLT,FUEL GAUGE | 92001 | 92001-1069 | 6 | ||
| BOLT,6X20 | 92001A | 92001-1091 | 2 | ||
| WASHER,10.5X26X2.3 | 92022 | 92022-044 | 2 | ||
| WASHER,5.3X10X0.8 | 92022A | 92022-1038 | 2 | ||
| WASHER,6.2X11X1.5 | 92022B | 92022-183 | 2 | ||
| COLLAR,L=14 | 92027 | 92027-1134 | 1 | ||
| CLAMP,TUBE | 92037 | 92037-010 | 1 | US | |
| CLAMP,TUBE | 92037A | 92037-147 | 1 | ||
| RING-O | 92055 | 92055-1023 | 2 | ||
| RING-O | 92055A | 92055-1036 | 1 | ||
| DAMPER,FUEL TANK,RR | 92075 | 92075-1114 | 1 | ||
| DAMPER,FUEL TANK | 92075A | 92075-1116 | 1 | ||
| DAMPER,FUEL TANK | 92075B | 92075-125 | 2 | ||
| SEAL,FUEL TANK CAP | 92093 | 92093-1030 | 1 | ||
| BOLT-SOCKET,8X30 | 120 | 120P0830 | 1 | ||
| SCREW-PAN-CROS | 220 | 220B0510 | 2 | ||
| TUBE-RUBBER,7X10X120 | 702 | 702A07120 | 1 | US | |
| TUBE-RUBBER,7X10X400 | 702A | 702A07400 | 1 | US | |
| TUBE-RUBBER,7X10X780 | 702B | 702A07780 | 1 |
| GASKET,FUEL GAUGE | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,FUEL GAUGE | |
| REF # | 14024 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BREATHER,FUEL TANK | |
| REF # | 14069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| RING,TAP FLANGED | |
| REF # | 43058 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TANK-COMP-FUEL,RED/GRAYSTONE | |
| REF # | 51002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| TANK-COMP-FUEL,RED/GRAYSTONE | |
| REF # | 51002A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TAP-ASSY | |
| REF # | 51023 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-TANK,FUEL | |
| REF # | 51049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GAUGE,FUEL | |
| REF # | 52005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FUEL GAUGE | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X20 | |
| REF # | 92001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,10.5X26X2.3 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,5.3X10X0.8 | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.2X11X1.5 | |
| REF # | 92022B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,L=14 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,TUBE | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| CLAMP,TUBE | |
| REF # | 92037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-O | |
| REF # | 92055A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,FUEL TANK,RR | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,FUEL TANK | |
| REF # | 92075A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,FUEL TANK | |
| REF # | 92075B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SEAL,FUEL TANK CAP | |
| REF # | 92093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-SOCKET,8X30 | |
| REF # | 120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| TUBE-RUBBER,7X10X120 | |
| REF # | 702 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| TUBE-RUBBER,7X10X400 | |
| REF # | 702A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| TUBE-RUBBER,7X10X780 | |
| REF # | 702B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
