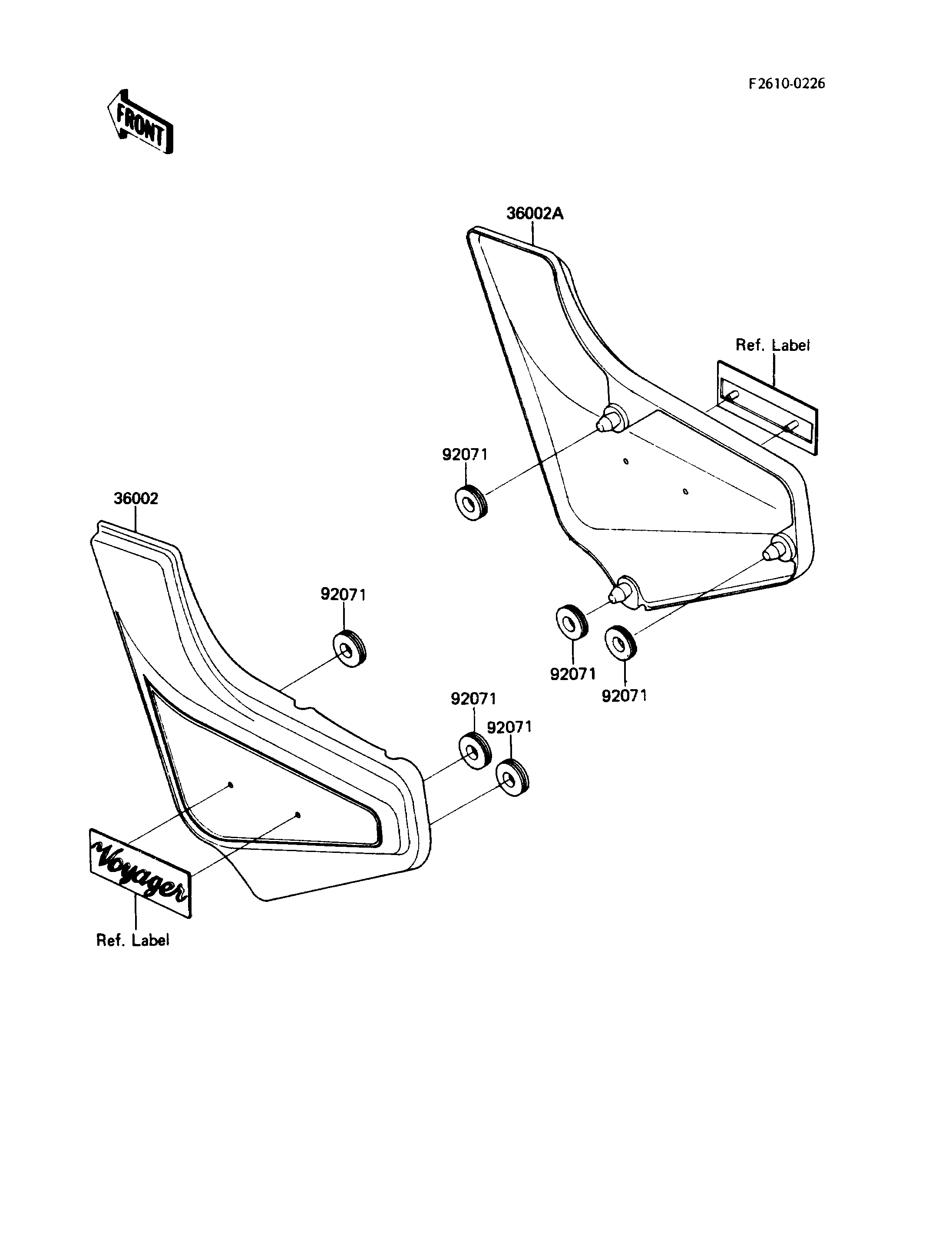

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-SIDE,LH,L.V.RED 36002 36002-5153-P5 1
COVER-SIDE,RH,L.V.RED 36002A 36002-5154-P5 1
GROMMET 92071 92071-056 6
