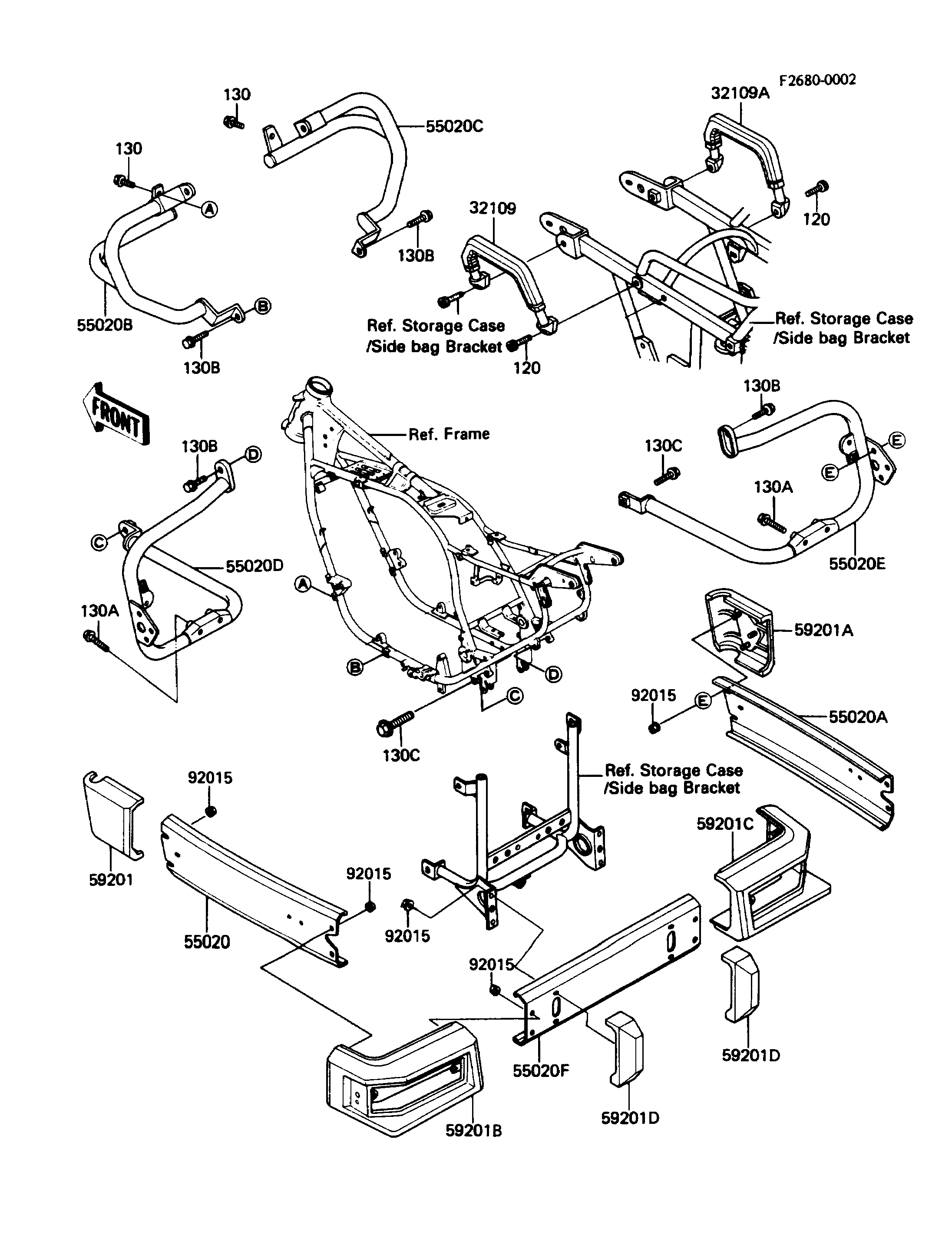

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GRIP-FRAME,LH 32109 32109-1044 1
GRIP-FRAME,RH 32109A 32109-1045 1
GUARD,SIDE BAG,LH 55020 55020-1105 1
GUARD,SIDE BAG,RH 55020A 55020-1106 1
GUARD,ENGINE,LH 55020B 55020-1110 1
GUARD,ENGINE,RH 55020C 55020-1111 1
GUARD,LH 55020D 55020-1155 1
GUARD,RH 55020E 55020-1156 1
GUARD,RR,CNT 55020F 55020-1159 1
BUMPER,FR,LH 59201 59201-1001 1
BUMPER,FR,RH 59201A 59201-1002 1
BUMPER,RR,LH 59201B 59201-1003 1
BUMPER,RR,RH 59201C 59201-1004 1
BUMPER,RR,CNT 59201D 59201-1005 2
NUT,FLANGED,6MM 92015 92015-1367 18
BOLT-SOCKET,8X14 120 120P0814 2
BOLT-FLANGED,8X16 130 130G0816 2
BOLT-FLANGED,8X45 130A 130G0845 4
BOLT-FLANGED,10X20 130B 130G1020 4
BOLT-FLANGED,10X35 130C 130G1035 2
