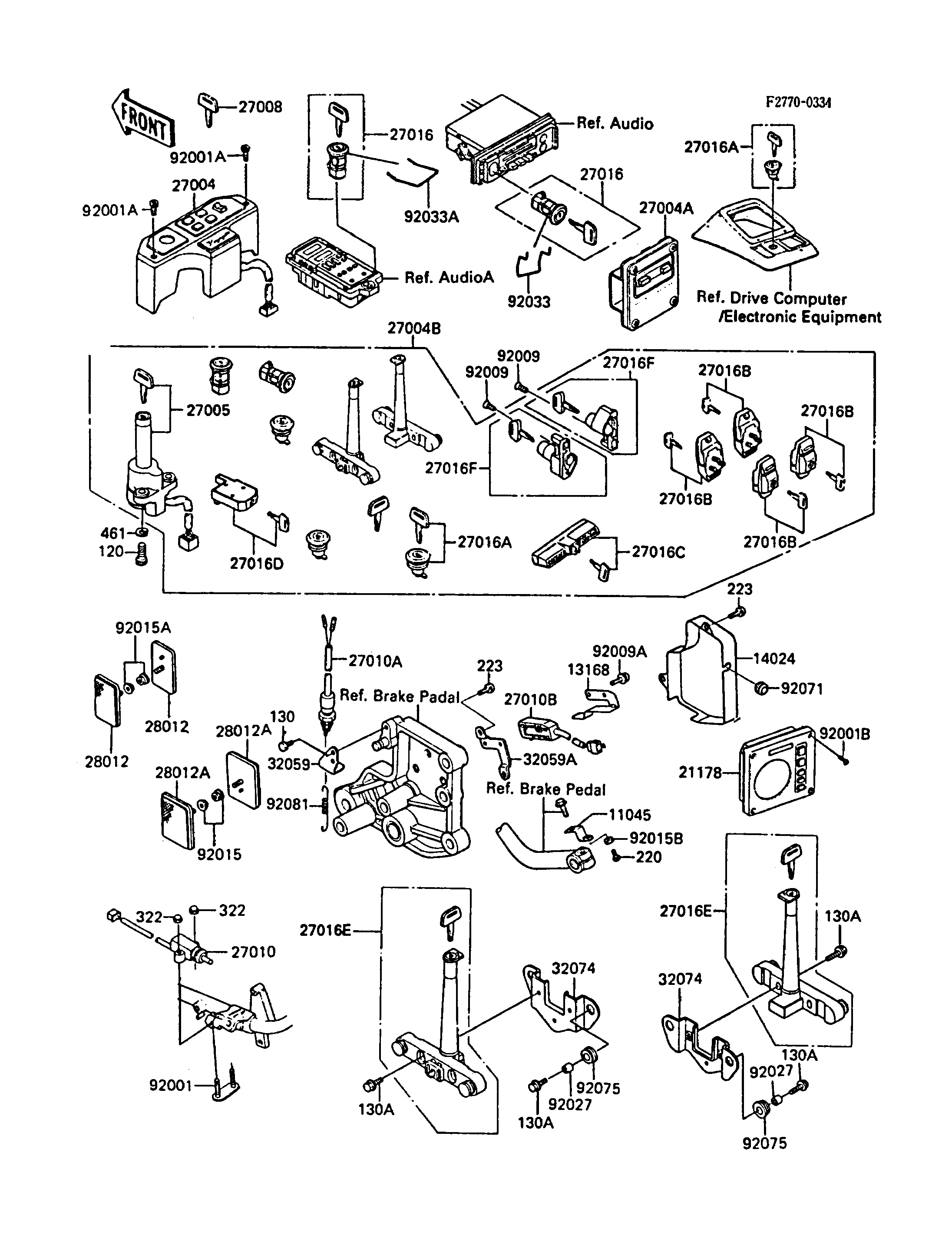

1987 Voyager - Ignition Switch/Locks/Reflectors

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,CRUISE CANCEL SWITCH 11045 11045-1982 1
LEVER,CRUISE CANCEL SWITCH 13168 13168-1364 1
COVER,CRUISE CANCEL SWITCH 14024 14024-1572 1
CONTROL-SWITCH 21178 21178-1001 1
SWITCH-ASSY,IGNITION BOX 27004 27004-1012 1
SWITCH-ASSY,CRUISE CONTROL 27004A 27004-1058 1
SWITCH-ASSY 27004B 27004-5214 1
SWITCH-ASSY-IGNITION 27005 27005-5034 1
KEY-LOCK,BLANK 27008 27008-1103 1 (OPTION)
SWITCH,SIDE STAND 27010 27010-1151 1
SWITCH,BRAKE LAMP 27010A 27010-1181 1
SWITCH,CRUISE CANCEL 27010B 27010-1237 1
LOCK-ASSY,RADIO CONTROLER 27016 27016-5061 2
LOCK-ASSY 27016A 27016-5062 2
LOCK-ASSY,SIDE BAG 27016B 27016-5063 4
LOCK-ASSY,TRUNK 27016C 27016-5064 1
LOCK-ASSY,TRUNK 27016D 27016-5065 1
LOCK-ASSY,SIDE BAG 27016E 27016-5066 2
LOCK-ASSY,HELMET 27016F 27016-5067 2
REFLECTOR-REFLEX,FR 28012 28012-1009 2
REFLECTOR-REFLEX,RR 28012A 28012-1055 2
BRACKET-SWITCH 32059 32059-1027 1
BRACKET-SWITCH,CRUISE CANCEL 32059A 32059-1088 1
BRACKET-LOCK,SIDE BAG 32074 32074-1102 2
BOLT,SIDE STAND SWITCH 92001 92001-1961 1
BOLT,SOCKET,5X80 92001A 92001-1978 2
BOLT,SOCKET,4X16 92001B 92001-1996 4
SCREW,5X12 92009 92009-1401 2
SCREW,4X16 92009A 92009-1500 2
NUT,FLANGED,6MM 92015 92015-1193 2
NUT,FLANGED,5MM 92015A 92015-1259 2
NUT,4MM 92015B 92015-1676 1
COLLAR,L=11.1 92027 92027-194 4
RING-SNAP,RADIO CONTROLER LOCK 92033 92033-1097 1
RING-SNAP,RADIO CONTROLER LOCK 92033A 92033-1098 1
GROMMET,10MM 92071 92071-019 1
DAMPER 92075 92075-277 4
SPRING,BRAKE SWITCH 92081 92081-1565 1
BOLT-SOCKET 120 120T0822 2
BOLT-FLANGED 130 130D0610 1
BOLT-FLANGED 130A 130D0620 8
SCREW-PAN-CROS 220 220B0420 1
SCREW-PAN-WS-CROS 223 223C0510 4
NUT-CAP 322 322C0500 2
WASHER-SPRING 461 461L0800 2
