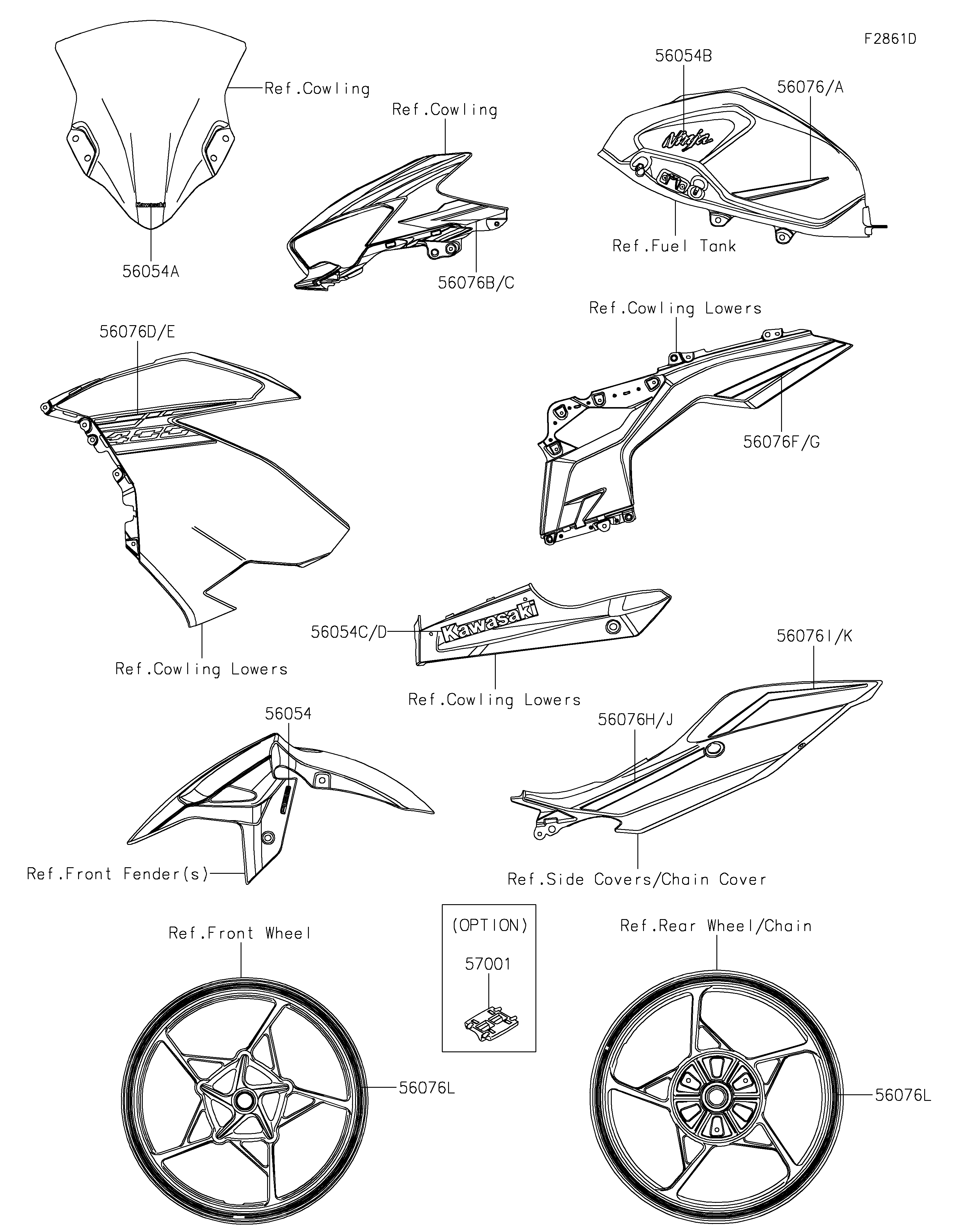

2021 NINJA® 400 ABS - Decals(Gray)(GMFBN/GMFBL)
56054
56054A
56054B
56054C
56054D
56076
56076A
56076B
56076C
56076D
56076E
56076F
56076G
56076H
56076I
56076J
56076K
56076L
56076L
57001
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,FR FENDER,ABS | 56054 | 56054-1412 | 2 | ||
| MARK,WINDSHIELD,KAWASAKI | 56054A | 56054-2261 | 1 | ||
| MARK,FUEL TANK,NINJA | 56054B | 56054-2825 | 2 | ||
| MARK,LWR COWL.,LH,KAWASAKI | 56054C | 56054-2830 | 1 | ||
| MARK,LWR COWL.,RH,KAWASAKI | 56054D | 56054-2831 | 1 | ||
| PATTERN,FUEL TANK,LH | 56076 | 56076-1797 | 1 | ||
| PATTERN,FUEL TANK,RH | 56076A | 56076-1798 | 1 | ||
| PATTERN,UPP COWL.,LH | 56076B | 56076-1799 | 1 | ||
| PATTERN,UPP COWL.,RH | 56076C | 56076-1800 | 1 | ||
| PATTERN,SIDE COWL.,LH | 56076D | 56076-1801 | 1 | ||
| PATTERN,SIDE COWL.,RH | 56076E | 56076-1802 | 1 | ||
| PATTERN,SIDE COWL.,LH,LWR | 56076F | 56076-1803 | 1 | ||
| PATTERN,SIDE COWL.,RH,LWR | 56076G | 56076-1804 | 1 | ||
| PATTERN,TAIL COVER,LH,FR | 56076H | 56076-1805 | 1 | ||
| PATTERN,TAIL COVER,LH,RR | 56076I | 56076-1806 | 1 | ||
| PATTERN,TAIL COVER,RH,FR | 56076J | 56076-1807 | 1 | ||
| PATTERN,TAIL COVER,RH,RR | 56076K | 56076-1808 | 1 | ||
| PATTERN,WHEEL,GREEN,4X1353 | 56076L | 56076-2175 | 4 | ||
| RIM STRIPE APPLICATOR | 57001 | 57001-1752 | AR | (OPTION) |
| MARK,FR FENDER,ABS | |
| REF # | 56054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,WINDSHIELD,KAWASAKI | |
| REF # | 56054A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,FUEL TANK,NINJA | |
| REF # | 56054B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,LWR COWL.,LH,KAWASAKI | |
| REF # | 56054C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,LWR COWL.,RH,KAWASAKI | |
| REF # | 56054D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,LH | |
| REF # | 56076 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,RH | |
| REF # | 56076A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWL.,LH | |
| REF # | 56076B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWL.,RH | |
| REF # | 56076C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,LH | |
| REF # | 56076D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,RH | |
| REF # | 56076E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,LH,LWR | |
| REF # | 56076F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,RH,LWR | |
| REF # | 56076G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TAIL COVER,LH,FR | |
| REF # | 56076H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TAIL COVER,LH,RR | |
| REF # | 56076I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TAIL COVER,RH,FR | |
| REF # | 56076J |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TAIL COVER,RH,RR | |
| REF # | 56076K |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,WHEEL,GREEN,4X1353 | |
| REF # | 56076L |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| RIM STRIPE APPLICATOR | |
| REF # | 57001 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | (OPTION) |
