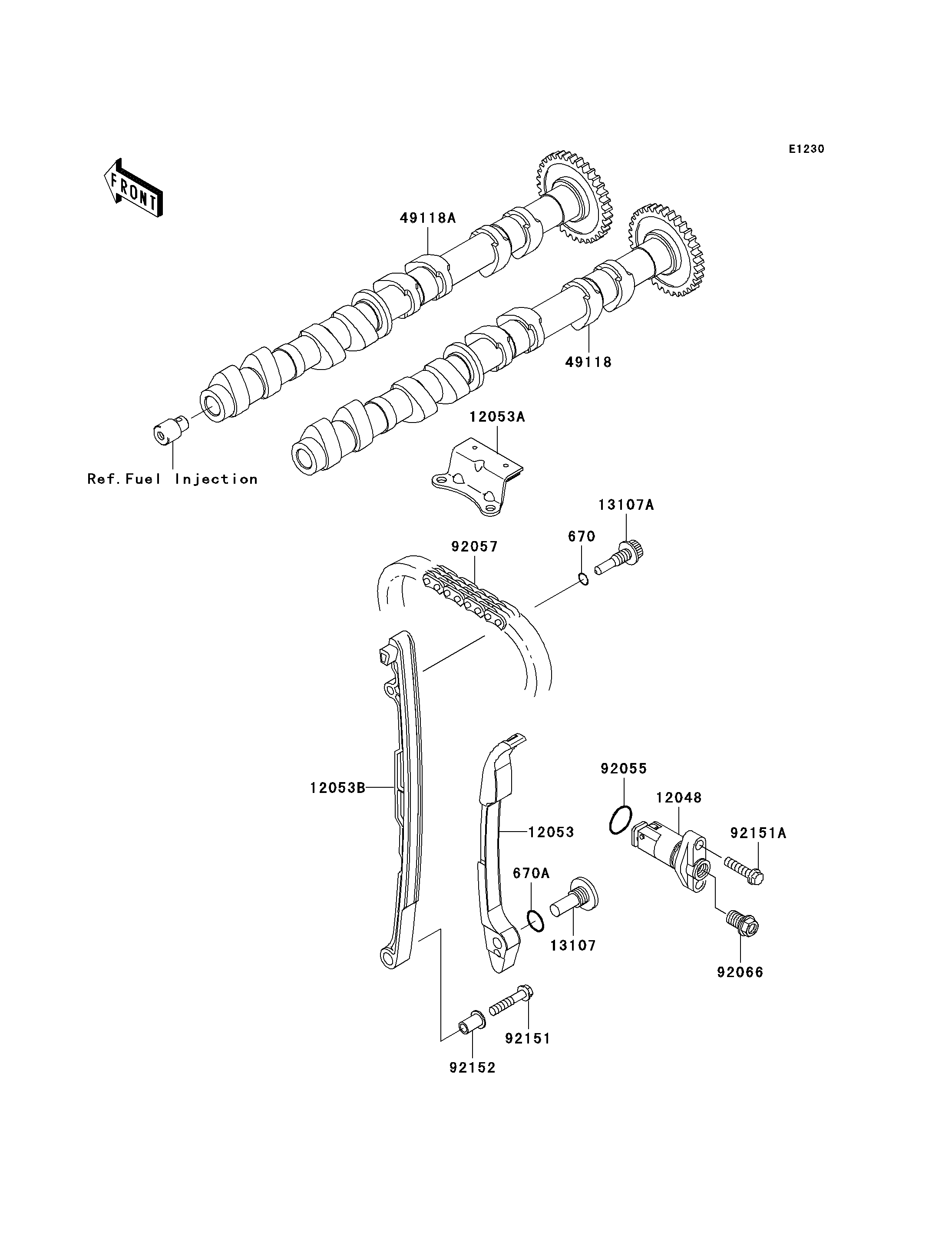

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
O RING,9MM 670 670D1509 1
O RING,14MM 670A 670D2014 1
TENSIONER-ASSY 12048 12048-0003 1
GUIDE-CHAIN,RR 12053 12053-1399 1
GUIDE-CHAIN,UPP 12053A 12053-1473 1
GUIDE-CHAIN,FR 12053B 12053-1478 1
SHAFT 13107 13107-1376 1
SHAFT,CHAIN GUIDE,FR 13107A 13107-1416 1
CAMSHAFT-COMP,INTAKE 49118 49118-1224 1
CAMSHAFT-COMP,EXHAUST 49118A 49118-1225 1
RING-O,18.8X1.9 92055 92055-086 1
CHAIN,CAM,92RH2015-126M 92057 92057-1453 1
PLUG 92066 92066-3780 1
BOLT,6X30 92151 92151-1134 1
BOLT,6X25 92151A 92151-1930 2
COLLAR 92152 92152-1167 1
