Parts Diagrams |
600
13127
13128
13144
13260
13260A
13260B
13260C
13262
13262A
13262B
13262C
13262D
13262E
13262F
92022
92022A
92028
92028A
92028B
92028C
92028C
92033
92033
92033A
92033A
92033A
92033B
92033B
92033B
92045
92045
92046
92046A
92046A
92139
92139
92152
92200
92200A
92200A
92200B
92200B
92200C
92200C
92200C
92200D
92200E
92200F
92210

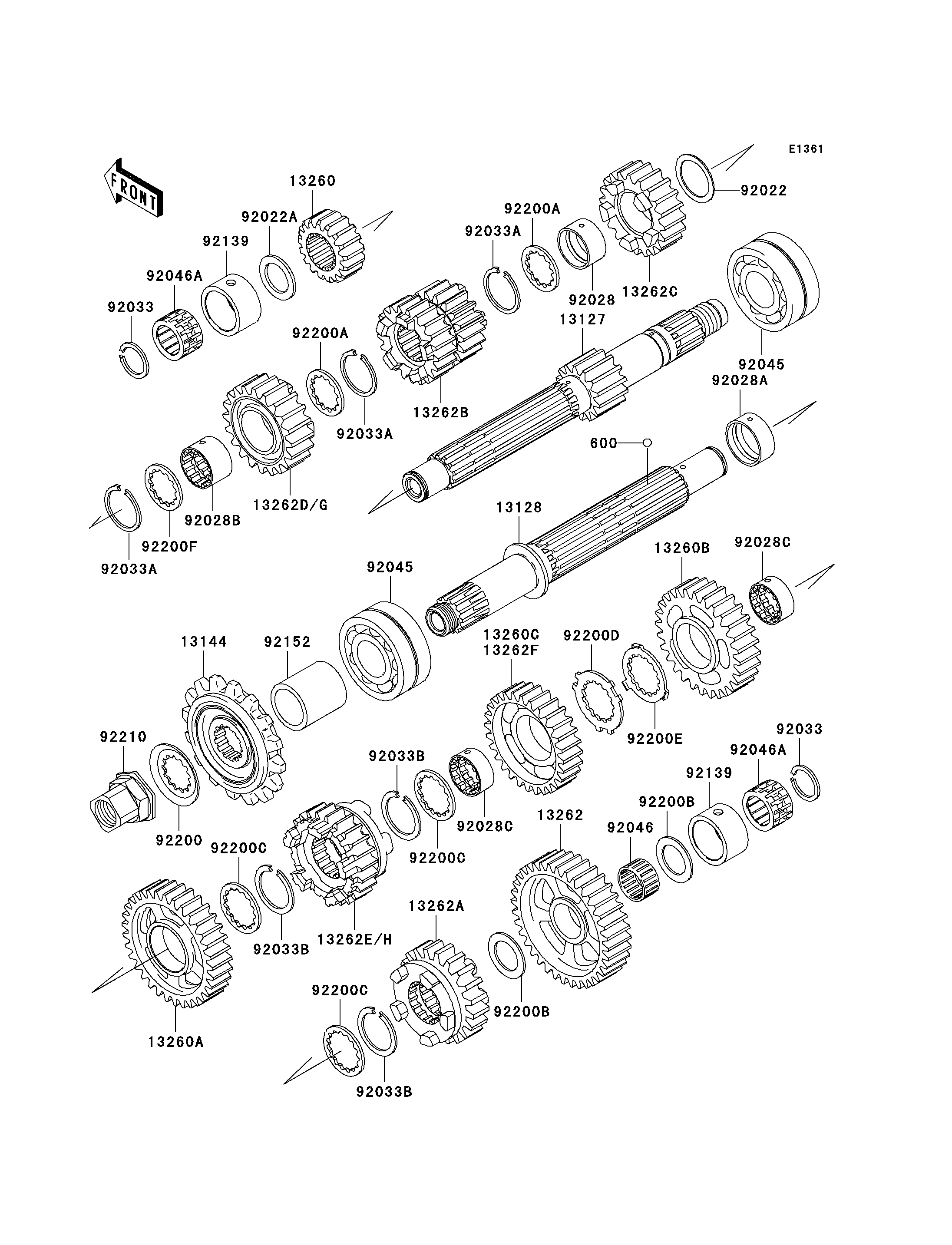

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BALL-STEEL,5/32" | 600 | 600A0500 | 3 | ||
SHAFT-TRANSMISSION INPUT | 13127 | 13127-0007 | 1 | ||
SHAFT-TRANSMISSION OUTPUT | 13128 | 13128-1260 | 1 | ||
SPROCKET-OUTPUT,16T | 13144 | 13144-1320 | 1 | ||
GEAR,INPUT 2ND,17T | 13260 | 13260-1681 | 1 | ||
GEAR,OUTPUT 2ND,33T | 13260A | 13260-1686 | 1 | ||
GEAR,OUTPUT 3RD,28T | 13260B | 13260-1880 | 1 | ||
GEAR,OUTPUT 4TH,28T | 13260C | 13260-1881 | 1 | ( - ZRT00AE001735) | |
GEAR,OUTPUT LOW,36T | 13262 | 13262-0029 | 1 | ||
GEAR,OUTPUT 5TH,24T | 13262A | 13262-0030 | 1 | ||
GEAR,INPUT 3RD&4TH,18T&21T | 13262B | 13262-0031 | 1 | ||
GEAR,INPUT 5TH,20T | 13262C | 13262-0062 | 1 | ||
GEAR,INPUT TOP,21T | 13262D | 13262-0074 | 1 | ||
GEAR,OUTPUT TOP,23T | 13262E | 13262-0076 | 1 | ||
GEAR,OUTPUT 4TH,28T | 13262F | 13262-0077 | 1 | (ZRT00AE001736 - ) | |
WASHER,25.3X33X1 | 92022 | 92022-1109 | 1 | ||
WASHER,20.5X30X1,STEEL | 92022A | 92022-112 | 1 | ||
BUSHING,INPUT 5TH GEAR | 92028 | 92028-1735 | 1 | ||
BUSHING,OUTPUT,2ND | 92028A | 92028-1739 | 1 | ||
BUSHING,INPUT TOP GEAR | 92028B | 92028-1915 | 1 | ||
BUSHING,OUTPUT,3RD&4TH | 92028C | 92028-1968 | 2 | ||
RING-SNAP,20MM | 92033 | 92033-015 | 2 | ||
RING-SNAP,24MM | 92033A | 92033-026 | 3 | ||
RING-SNAP,T=1.5 | 92033B | 92033-1249 | 3 | ||
BEARING-BALL,DAC2557NSSH | 92045 | 92045-0003 | 2 | ||
BEARING-NEEDLE,K20X24X13 | 92046 | 92046-1219 | 1 | ||
BEARING-NEEDLE,PK20X27X17X3 | 92046A | 92046-1303 | 2 | ||
BUSHING,27X34X18.6 | 92139 | 92139-1090 | 2 | ||
COLLAR,SPROCKET | 92152 | 92152-1466 | 1 | ||
WASHER | 92200 | 92200-1065 | 1 | ||
WASHER,25.2X31.0X1.5 | 92200A | 92200-1239 | 2 | ||
WASHER,20.5X31X1.5 | 92200B | 92200-1375 | 2 | ||
WASHER,T=2.0 | 92200C | 92200-1457 | 3 | ||
WASHER,OUTPUT 4TH | 92200D | 92200-1522 | 1 | ||
WASHER,OUTPUT 3RD | 92200E | 92200-1523 | 1 | ||
WASHER,INPUT | 92200F | 92200-1524 | 1 | ||
NUT,SPROCKET | 92210 | 92210-1098 | 1 |
