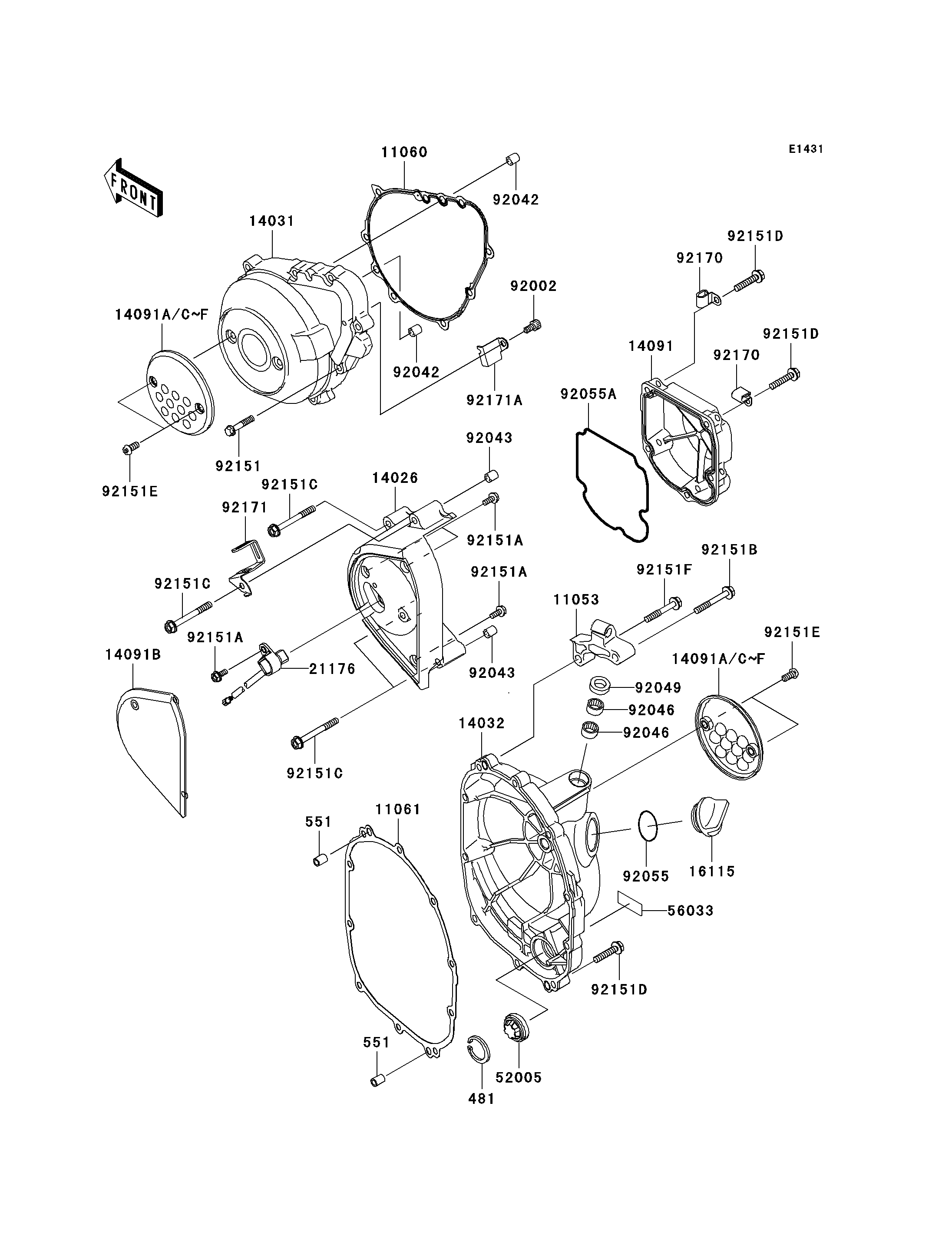

2003 Z1000 - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
481
551
551
11053
11060
11061
14026
14031
14032
14091
14091A
14091A
14091B
14091E
14091E
16115
21176
52005
56033
92002
92042
92042
92043
92043
92046
92046
92049
92055
92055A
92151
92151A
92151A
92151A
92151B
92151C
92151C
92151C
92151D
92151D
92151D
92151E
92151E
92151F
92170
92170
92171
92171A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP-TYPE-C,30MM 481 481J3000 1
PIN-DOWEL,8X14 551 551A0814 2
BRACKET,CLUTH CABLE 11053 11053-1069 1
GASKET,GENERATOR COVER 11060 11060-1854 1
GASKET,CLUTCH COVER 11061 11061-1166 1
COVER-CHAIN 14026 14026-1293 1
COVER-GENERATOR 14031 14031-1403 1
COVER-CLUTCH 14032 14032-1542 1
COVER,PULSE 14091 14091-0083 1
COVER,GENERATOR&CLUTCH,BLACK 14091A 14091-0214 2 (OPTION)
COVER,RELEASE 14091B 14091-1529 1
COVER,GENERATOR&CLUTCH,F.RED 14091E 14091-1530-6L 2
CAP-OIL FILLER 16115 16115-1009 1
SENSOR,SPEED 21176 21176-1076 1
GAUGE 52005 52005-1120 1
LABEL-MANUAL,OIL CAPACITY 56033 56033-0022 1
BOLT,SOCKET,6X12 92002 92002-1796 1
PIN,DOWEL,6.3X8X14 92042 92042-007 2
PIN,8X16 92043 92043-1322 2
BEARING-NEEDLE,HK1210 92046 92046-1010 2
SEAL-OIL,CLUTCH RELEASE 92049 92049-1475 1
RING-O,31.7X2.4 92055 92055-049 1
RING-O,PULSE COVER 92055A 92055-1570 1
BOLT,6X30 92151 92151-1134 8
BOLT,5X12 92151A 92151-1305 4
BOLT,6X45 92151B 92151-1521 1
BOLT,6X55 92151C 92151-1540 4
BOLT,6X30 92151D 92151-1547 13
BOLT,SOCKET,6X14 92151E 92151-1554 4
BOLT,6X40 92151F 92151-1583 1
CLAMP 92170 92170-1577 2
CLAMP 92171 92171-0067 1
CLAMP 92171A 92171-1566 1
COVER,GENERATOR&CLUTCH,L.GREEN 14091F 14091-1530-6W 2 CN
