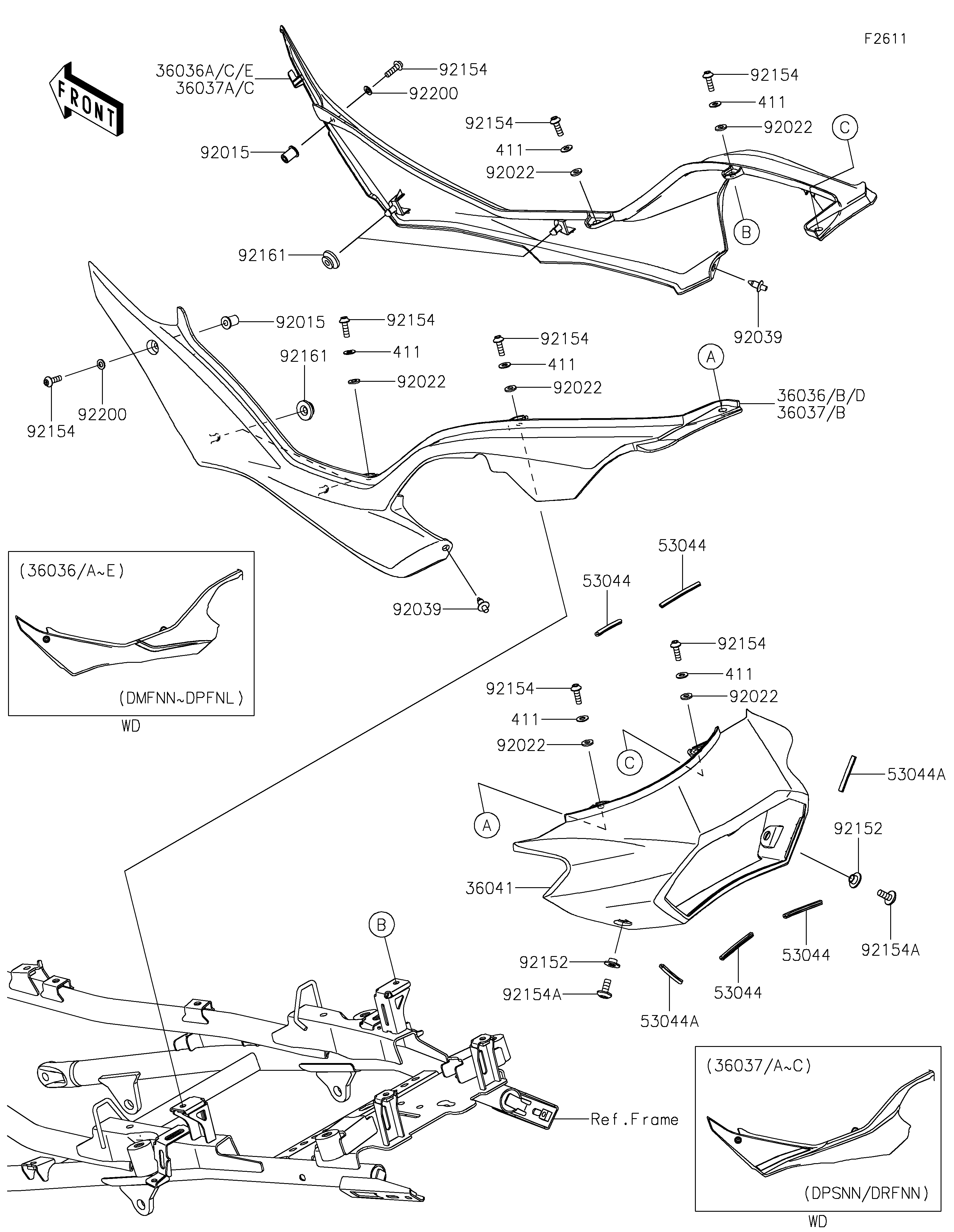

2022 Versys® 1000 SE LT+ - Side Covers

DOWNLOAD PDF
SELECT A NEW PART
36036B
36036C
36036D
36036E
36041
53044
53044
53044
53044
53044A
53044A
92015
92015
92022
92022
92022
92022
92022
92022
92039
92039
92152
92152
92154
92154
92154
92154
92154
92154
92154
92154
92154A
92154A
92161
92161
92200
92200
411
411
411
411
411
411
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-SIDE,LH,H.M.D.BLK+GRAY 36036B 36036-5305-J15 1
COVER-SIDE,RH,H.M.D.BLK+GRAY 36036C 36036-5306-J15 1
COVER-SIDE,LH,M.G.GRAY+BLK 36036D 36036-5389-J16 1
COVER-SIDE,RH,M.G.GRAY+BLK 36036E 36036-5390-J16 1
COVER-TAIL 36041 36041-0048 1
TRIM,48MM 53044 53044-0643 4
TRIM,38MM 53044A 53044-0660 2
NUT,WELL,5MM 92015 92015-1757 2
WASHER,NYLON,5.3X11.5X1.5 92022 92022-1521 6
RIVET 92039 92039-0068 2
COLLAR 92152 92152-0718 2
BOLT,SOCKET,5X16 92154 92154-0209 8
BOLT,SOCKET,6X14 92154A 92154-0907 2
DAMPER 92161 92161-1531 4
WASHER,5.2X10X1.0 92200 92200-1820 2
WASHER-PLAIN,5MM 411 411AA0500 6
