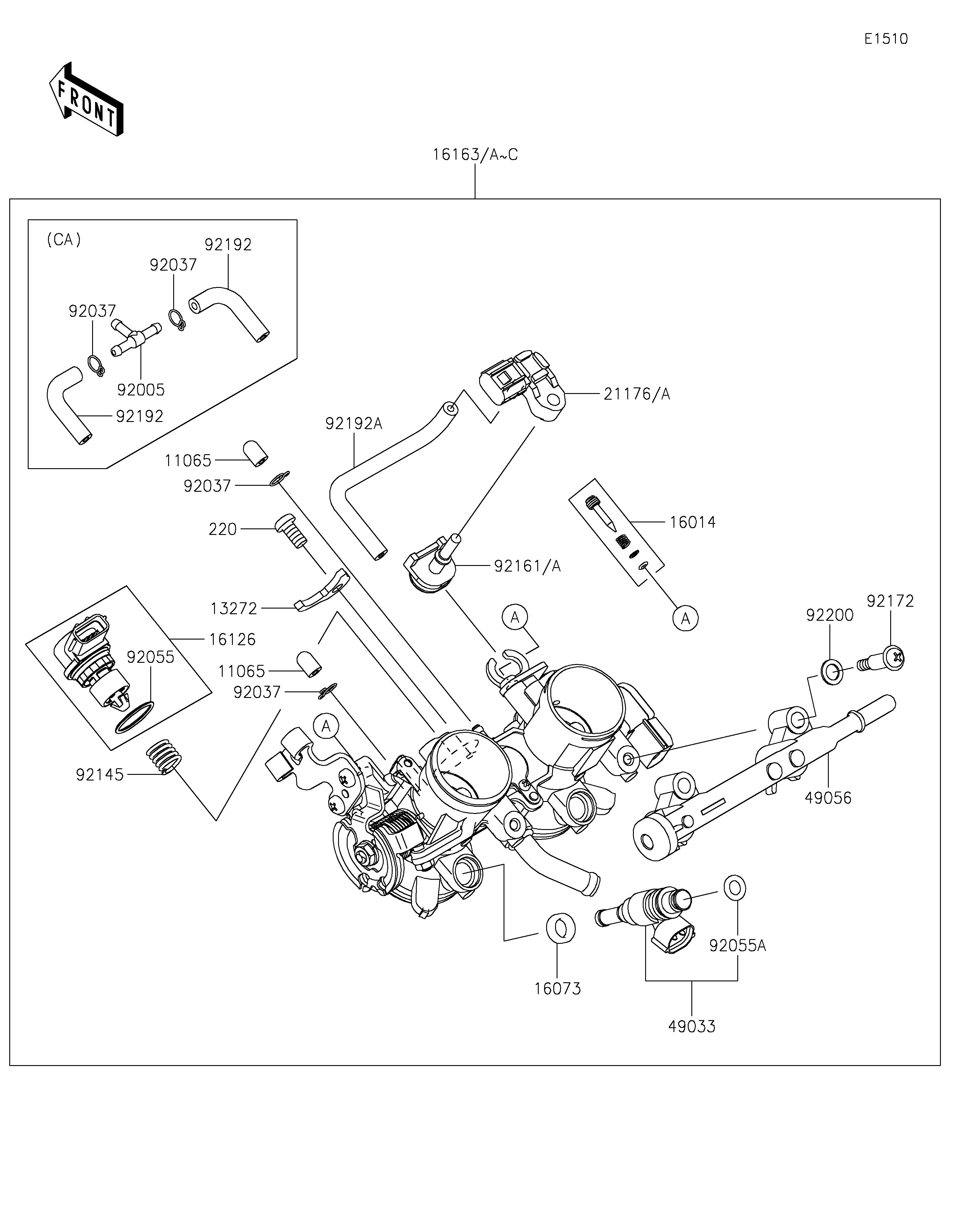

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11065
11065
13272
16014
16073
16126
16163
16163A
21176
49033
49056
92005
92037
92037
92037
92037
92055
92055A
92145
92161
92172
92192
92192
92192A
92200
220
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP | 11065 | 11065-0072 | 2 | US | |
| PLATE | 13272 | 13272-2558 | 1 | ||
| SCREW-PILOT AIR | 16014 | 16014-0022 | 2 | ||
| INSULATOR | 16073 | 16073-0866 | 2 | ||
| VALVE,ISC | 16126 | 16126-0748 | 1 | ||
| THROTTLE-ASSY | 16163 | 16163-0922 | 1 | CA | |
| THROTTLE-ASSY | 16163A | 16163-0927 | 1 | US | |
| SENSOR,PRESSURE | 21176 | 21176-0111 | 1 | ||
| NOZZLE-INJECTION | 49033 | 49033-0047 | 2 | ||
| PIPE-INJECTION | 49056 | 49056-0050 | 1 | ||
| FITTING | 92005 | 92005-1380 | 1 | CA | |
| CLAMP,TUBE | 92037 | 92037-1124 | 4 | CA | |
| RING-O | 92055 | 92055-0907 | 1 | ||
| RING-O,REGULATOR-FUEL | 92055A | 92055-2187 | 2 | ||
| SPRING | 92145 | 92145-1826 | 1 | ||
| DAMPER | 92161 | 92161-0673 | 1 | ||
| SCREW | 92172 | 92172-1257 | 2 | ||
| TUBE,3.5X7.5X55 | 92192 | 92192-1349 | 2 | CA | |
| TUBE | 92192A | 92192-1906 | 1 | ||
| WASHER | 92200 | 92200-3807 | 2 | ||
| SCREW-PAN-CROS,6X12 | 220 | 220AA0612 | 1 | ||
| CLAMP,TUBE | 92037 | 92037-1124 | 2 | US |
