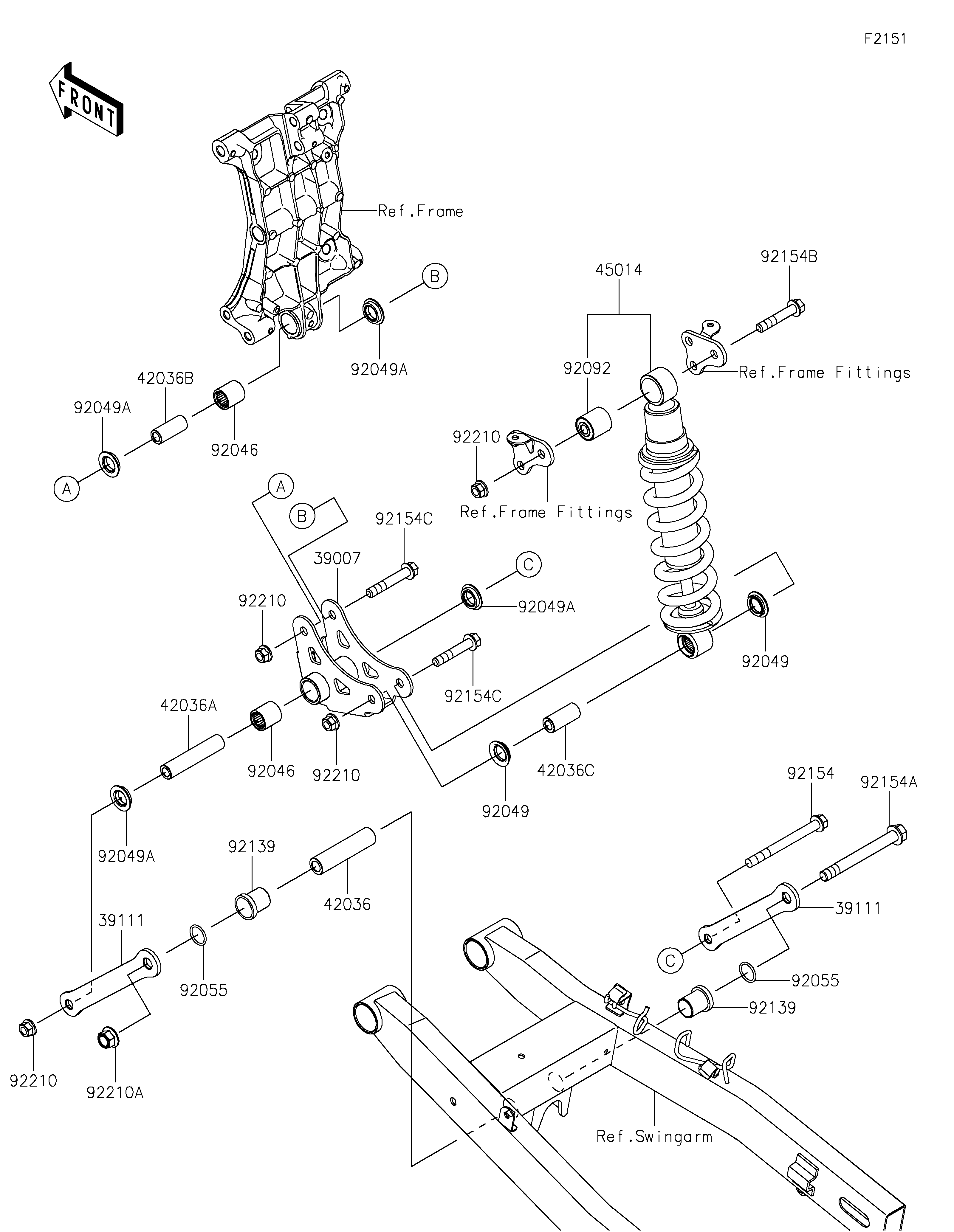

2022 NINJA® 400 - Suspension/Shock Absorber

DOWNLOAD PDF
SELECT A NEW PART
39007
39111
39111
42036
42036A
42036B
42036C
45014
92046
92046
92049
92049
92049A
92049A
92049A
92049A
92055
92055
92092
92139
92139
92154
92154A
92154B
92154C
92154C
92210
92210
92210
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ARM-SUSP 39007 39007-0438 1
ROD-TIE 39111 39111-0363 2
SLEEVE,12.1X20X83 42036 42036-0807 1
SLEEVE,10.1X17X83 42036A 42036-0808 1
SLEEVE,10.1X17X40.5 42036B 42036-0809 1
SLEEVE,10.1X18X40.5 42036C 42036-0810 1
SHOCKABSORBER,BLACK+BLK 45014 45014-0605-37S 1
BEARING-NEEDLE,SFYZM172425 92046 92046-1273 2
SEAL-OIL 92049 92049-0133 2
SEAL-OIL,MHA17245.7F 92049A 92049-1223 4
RING-O,19.8X2.2 92055 92055-1215 2
BUSHING-RUBBER 92092 92092-1058 1
BUSHING,20X23X29 92139 92139-0890 2
BOLT,FLANGED,10X105 92154 92154-2810 1
BOLT,FLANGED,12X110 92154A 92154-2811 1
BOLT,FLANGED,10X54 92154B 92154-2813 1
BOLT,FLANGED,10X60 92154C 92154-3771 2
NUT,LOCK,FLANGED,10MM 92210 92210-1139 4
NUT,LOCK,FLANGED,12MM 92210A 92210-1150 1
