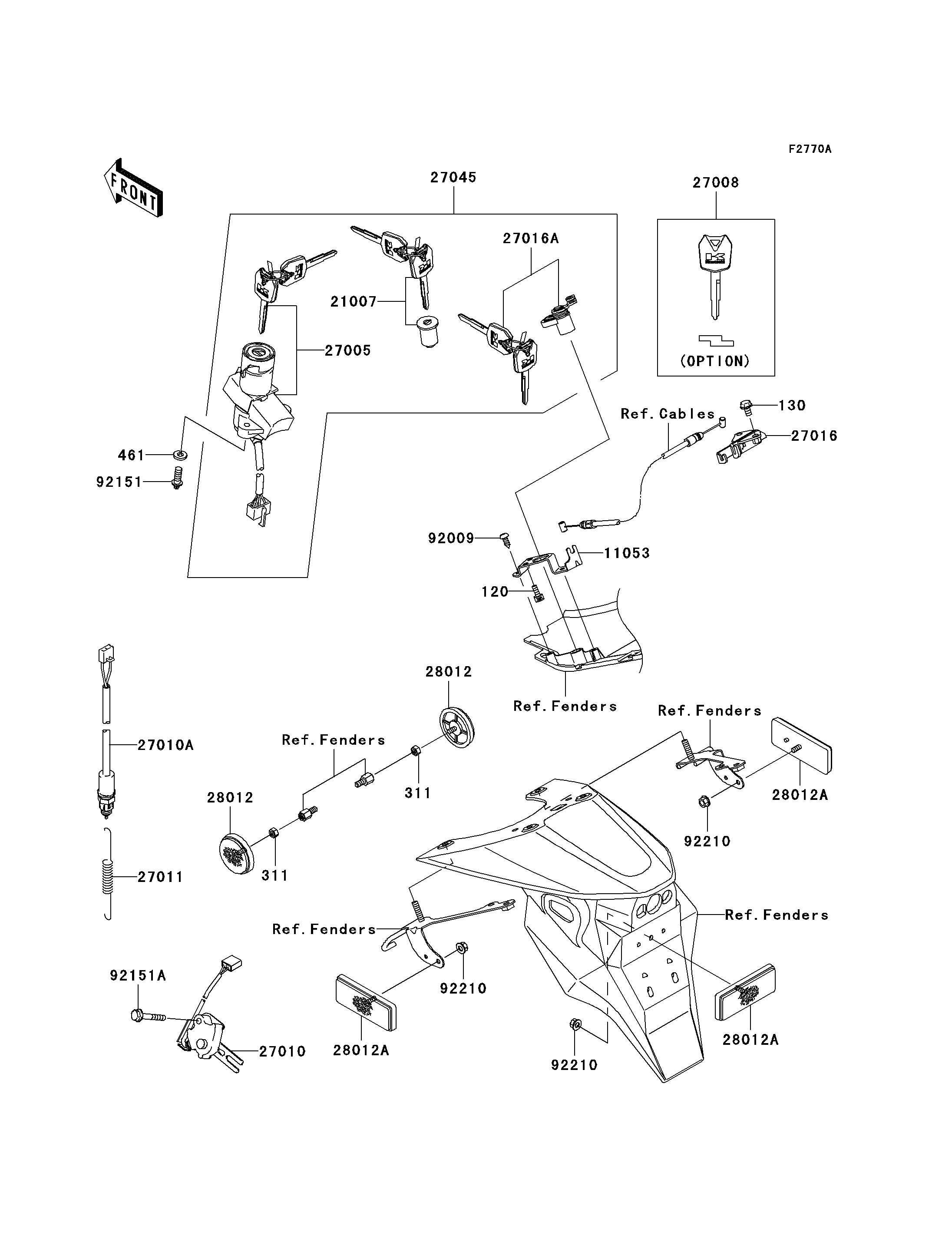

2005 Z1000 - Ignition Switch/Locks/Reflectors(A3)

DOWNLOAD PDF
SELECT A NEW PART
120
130
311
311
461
11053
21007
27005
27008
27010
27010A
27011
27016
27016A
27045
28012
28012
28012A
28012A
28012A
92009
92151
92151A
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET 120 120S0512 2
BOLT-FLANGED 130 130J0612 2
NUT-HEX 311 311L0500 2
WASHER-SPRING 461 461L0600 2
BRACKET,SEAT LOCK 11053 11053-1146 1
ROTOR,LOCK,TANK CAP 21007 21007-5057 1
SWITCH-ASSY-IGNITION 27005 27005-5130 1
KEY-LOCK,BLANK 27008 27008-0030 1 (OPTION)
SWITCH,SIDE STAND 27010 27010-1470 1
SWITCH,REAR BRAKE 27010A 27010-1479 1
SPRING,BRAKE LAMP SWITCH 27011 27011-021 1
LOCK-ASSY,SEAT STRIKER 27016 27016-1115 1
LOCK-ASSY,SEAT 27016A 27016-5322 1
SWITCH-ASSY 27045 27045-5288 1
REFLECTOR-REFLEX,FR 28012 28012-016 2
REFLECTOR-REFLEX 28012A 28012-1077 3
SCREW,TAPPING,5X12,BLACK 92009 92009-1138 2
BOLT,TORX,6X16 92151 92151-1911 2
BOLT,6X35 92151A 92151-1982 1
NUT,FLANGED,5MM 92210 92210-0007 3
