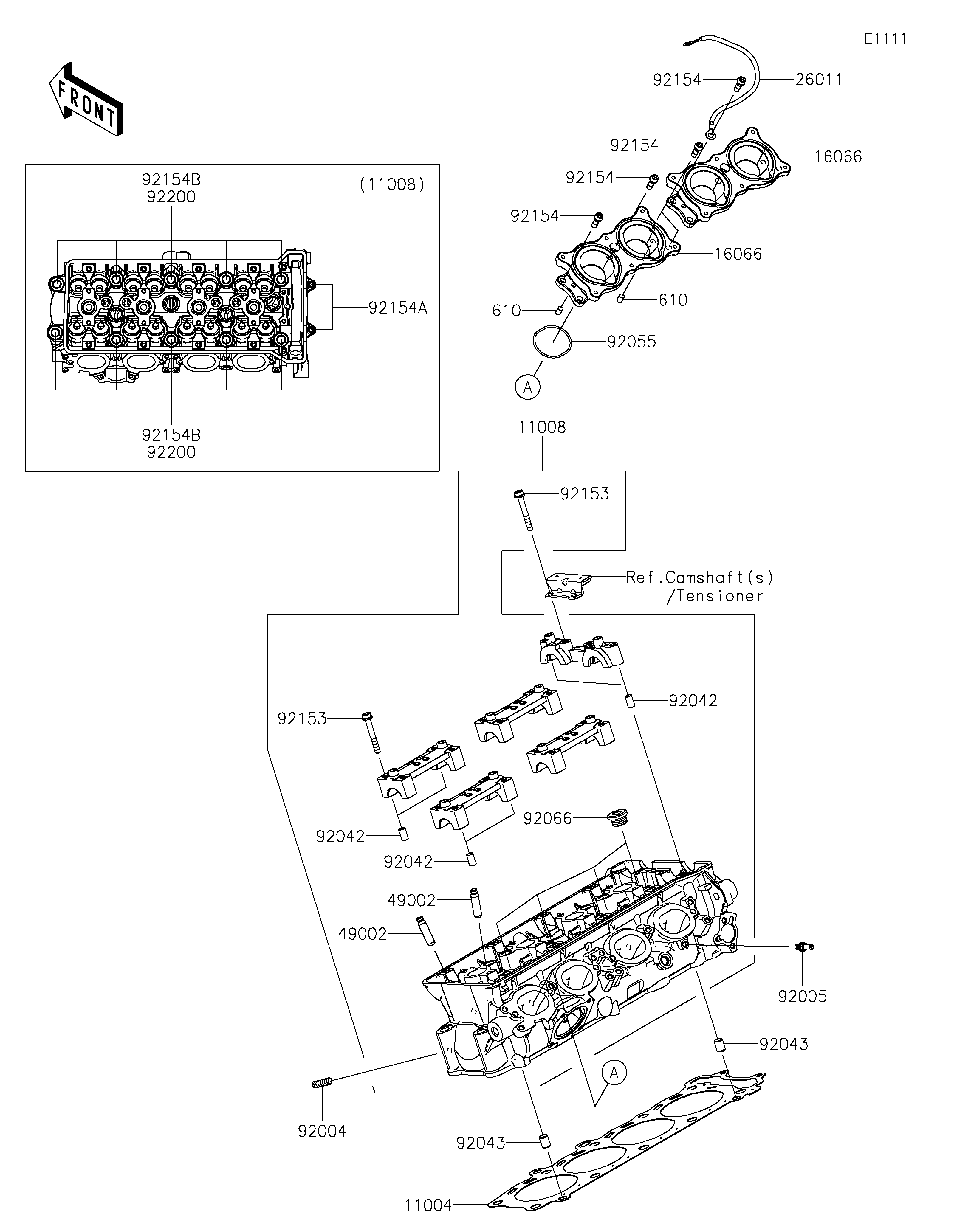

2022 NINJA H2® SX SE - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
11004
11008
16066
16066
26011
49002
49002
92004
92005
92042
92042
92042
92043
92043
92055
92066
92153
92153
92154
92154
92154
92154
92154A
92154B
92154B
92200
92200
610
610
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET-HEAD 11004 11004-0754 1
HEAD-COMP-CYLINDER 11008 11008-0980 1
HOLDER-THROTTLE BODY 16066 16066-0009 2
WIRE-LEAD 26011 26011-1982 1
GUIDE-VALVE 49002 49002-0009 16
STUD,8X18 92004 92004-0049 8
FITTING 92005 92005-0826 1
PIN,DOWEL,6.3X8X14 92042 92042-007 10
PIN,8.2X10X14 92043 92043-1264 2
RING-O,43.7X1.9 92055 92055-1401 4
PLUG,18X10 92066 92066-0832 4
BOLT,SOCKET,6X45 92153 92153-0656 20
BOLT,SOCKET,6X18 92154 92154-1455 10
BOLT,SOCKET,6X25 92154A 92154-1457 2
BOLT,11X103 92154B 92154-1819 10
WASHER,11.2X18.2X1.8 92200 92200-0940 10
ROLLER,6X10 610 610A0610 4
