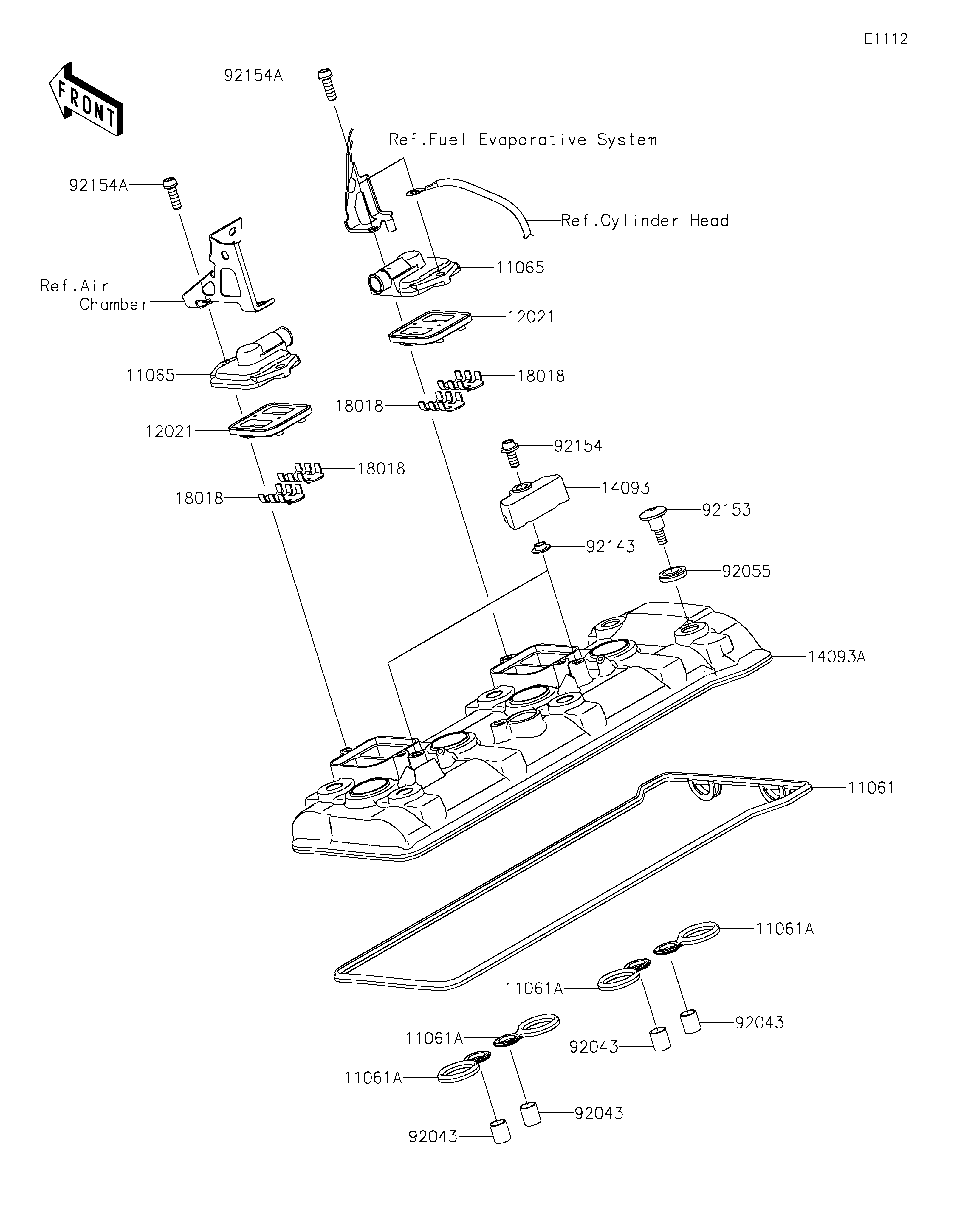

2022 NINJA H2® SX SE - Cylinder Head Cover
11061
11061A
11061A
11061A
11061A
11065
11065
12021
12021
14093
14093A
18018
18018
18018
18018
92043
92043
92043
92043
92055
92143
92153
92154
92154A
92154A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,HEAD COVER | 11061 | 11061-0979 | 1 | ||
| GASKET,PLUG HOLE | 11061A | 11061-1185 | 4 | ||
| CAP | 11065 | 11065-0360 | 2 | ||
| VALVE-ASSY-REED | 12021 | 12021-0021 | 2 | ||
| COVER | 14093 | 14093-0291 | 2 | ||
| COVER,CYLINDER HEAD | 14093A | 14093-0582 | 1 | ||
| PLATE-HEAT GUARD | 18018 | 18018-0640 | 4 | ||
| PIN,10.1X12X14 | 92043 | 92043-4009 | 4 | ||
| RING-O | 92055 | 92055-0820 | 6 | ||
| COLLAR | 92143 | 92143-1331 | 2 | ||
| BOLT,SOCKET,6X22.5 | 92153 | 92153-1779 | 6 | ||
| BOLT,SOCKET,6X14 | 92154 | 92154-1460 | 2 | ||
| BOLT,SOCKET,6X18 | 92154A | 92154-1498 | 4 |
| GASKET,HEAD COVER | |
| REF # | 11061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,PLUG HOLE | |
| REF # | 11061A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CAP | |
| REF # | 11065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| VALVE-ASSY-REED | |
| REF # | 12021 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COVER | |
| REF # | 14093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COVER,CYLINDER HEAD | |
| REF # | 14093A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE-HEAT GUARD | |
| REF # | 18018 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PIN,10.1X12X14 | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| RING-O | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X22.5 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X14 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X18 | |
| REF # | 92154A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
