Parts Diagrams

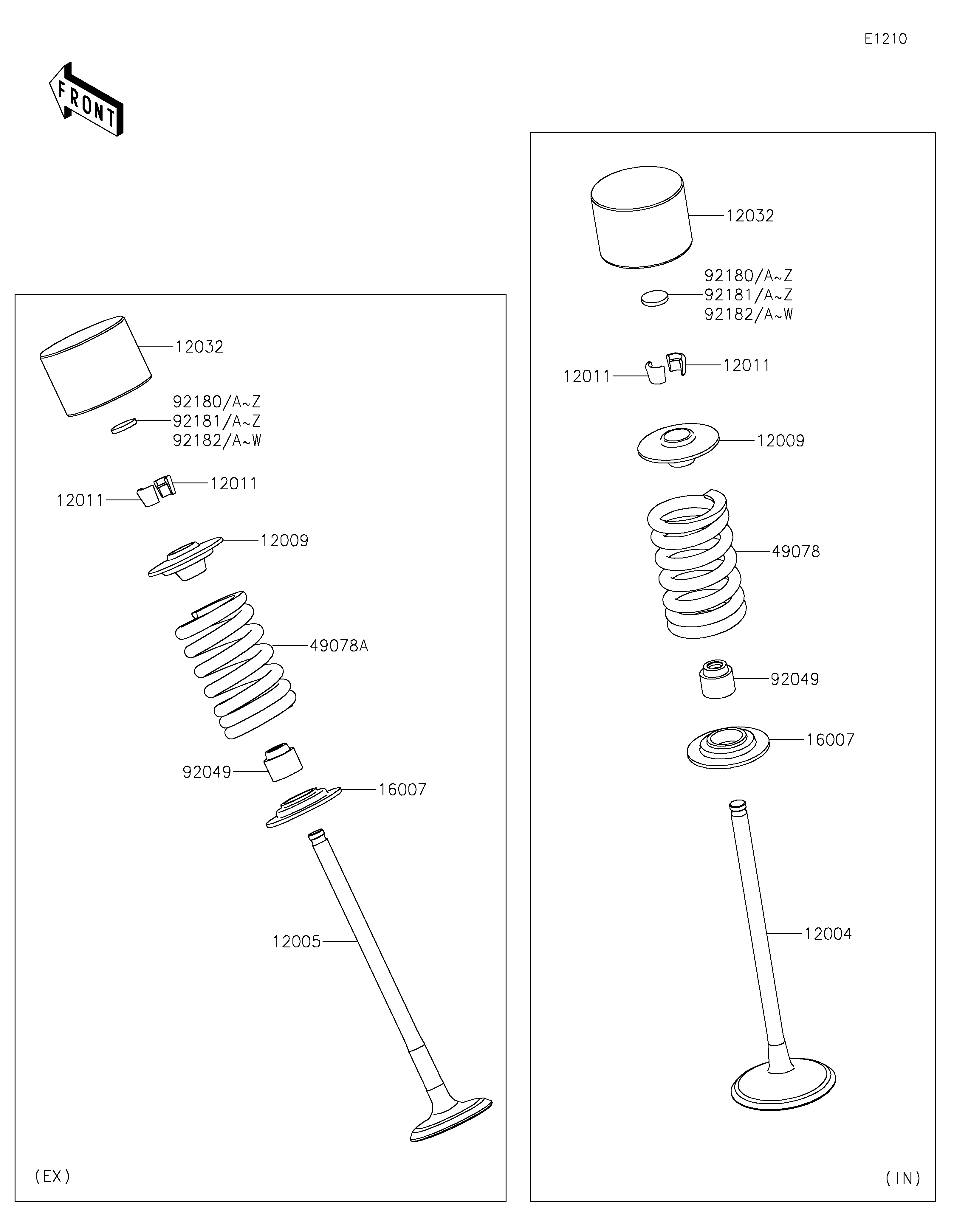

2022 NINJA H2® SX SE - Valve(s)

DOWNLOAD PDF

SELECT A NEW PART

DOWNLOAD PDF SELECT A NEW PART

12004

12005

12009

12011

12032

16007

49078

49078A

92049

92180

92180A

92180B

92180C

92180D

92180E

92180F

92180G

92180H

92180I

92180J

92180K

92180L

92180M

92180N

92180O

92180P

92180Q

92180R

92180S

92180T

92180U

92180V

92180W

92180X

92180Y

92180Z

92181

92181A

92181B

92181C

92181D

92181E

92181F

92181G

92181H

92181I

92181J

92181K

92181L

92181M

92181N

92181O

92181P

92181Q

92181R

92181S

92181T

92181U

92181V

92181W

92181X

92181Y

92181Z

92182

92182A

92182B

92182C

92182D

92182E

92182F

92182G

92182H

92182I

92182J

92182K

92182L

92182M

92182N

92182O

92182P

92182Q

92182R

92182S

92182T

92182U

92182V

92182W

Part Item Information
ITEM NAME	REF #	PART NUMBER	QUANTITY
VALVE-INTAKE	12004	12004-0744	8
VALVE-EXHAUST	12005	12005-0765	8
RETAINER-VALVE SPRING	12009	12009-0031	16
COLLET	12011	12011-1053	32
TAPPET,D26.5	12032	12032-0013	16
SEAT-SPRING	16007	16007-0034	16
SPRING-ENGINE VALVE,INTAKE	49078	49078-0744	8
SPRING-ENGINE VALVE,EXHAUST	49078A	49078-0745	8
SEAL-OIL,VSB 4.3 7.5 5.3 8.3	92049	92049-1349	16
SHIM,T=1.300	92180	92180-0108	AR
SHIM,T=1.325	92180A	92180-0109	AR
SHIM,T=1.350	92180B	92180-0110	AR
SHIM,T=1.375	92180C	92180-0865	AR
SHIM,T=1.388	92180D	92180-0866	AR
SHIM,T=1.400	92180E	92180-0867	AR
SHIM,T=1.413	92180F	92180-0868	AR
SHIM,T=1.425	92180G	92180-0869	AR
SHIM,T=1.438	92180H	92180-0870	AR
SHIM,T=1.450	92180I	92180-0871	AR
SHIM,T=1.463	92180J	92180-0872	AR
SHIM,T=1.475	92180K	92180-0873	AR
SHIM,T=1.488	92180L	92180-0874	AR
SHIM,T=1.500	92180M	92180-0875	AR
SHIM,T=1.513	92180N	92180-0876	AR
SHIM,T=1.525	92180O	92180-0877	AR
SHIM,T=1.538	92180P	92180-0878	AR
SHIM,T=1.550	92180Q	92180-0879	AR
SHIM,T=1.563	92180R	92180-0880	AR
SHIM,T=1.575	92180S	92180-0881	AR
SHIM,T=1.588	92180T	92180-0882	AR
SHIM,T=1.600	92180U	92180-0883	AR
SHIM,T=1.613	92180V	92180-0884	AR
SHIM,T=1.625	92180W	92180-0885	AR
SHIM,T=1.638	92180X	92180-0886	AR
SHIM,T=1.650	92180Y	92180-0887	AR
SHIM,T=1.663	92180Z	92180-0888	AR
SHIM,T=1.675	92181	92180-0889	AR
SHIM,T=1.688	92181A	92180-0890	AR
SHIM,T=1.700	92181B	92180-0891	AR
SHIM,T=1.713	92181C	92180-0892	AR
SHIM,T=1.725	92181D	92180-0893	AR
SHIM,T=1.738	92181E	92180-0894	AR
SHIM,T=1.750	92181F	92180-0895	AR
SHIM,T=1.763	92181G	92180-0896	AR
SHIM,T=1.775	92181H	92180-0897	AR
SHIM,T=1.788	92181I	92180-0898	AR
SHIM,T=1.800	92181J	92180-0899	16
SHIM,T=1.813	92181K	92180-0900	AR
SHIM,T=1.825	92181L	92180-0901	AR
SHIM,T=1.838	92181M	92180-0902	AR
SHIM,T=1.850	92181N	92180-0903	AR
SHIM,T=1.863	92181O	92180-0904	AR
SHIM,T=1.875	92181P	92180-0905	AR
SHIM,T=1.888	92181Q	92180-0906	AR
SHIM,T=1.900	92181R	92180-0907	AR
SHIM,T=1.913	92181S	92180-0908	AR
SHIM,T=1.925	92181T	92180-0909	AR
SHIM,T=1.938	92181U	92180-0910	AR
SHIM,T=1.950	92181V	92180-0911	AR
SHIM,T=1.963	92181W	92180-0912	AR
SHIM,T=1.975	92181X	92180-0913	AR
SHIM,T=1.988	92181Y	92180-0914	AR
SHIM,T=2.000	92181Z	92180-0915	AR
SHIM,T=2.013	92182	92180-0916	AR
SHIM,T=2.025	92182A	92180-0917	AR
SHIM,T=2.038	92182B	92180-0918	AR
SHIM,T=2.050	92182C	92180-0919	AR
SHIM,T=2.063	92182D	92180-0920	AR
SHIM,T=2.075	92182E	92180-0921	AR
SHIM,T=2.088	92182F	92180-0922	AR
SHIM,T=2.100	92182G	92180-0923	AR
SHIM,T=2.113	92182H	92180-0924	AR
SHIM,T=2.125	92182I	92180-0925	AR
SHIM,T=2.138	92182J	92180-0926	AR
SHIM,T=2.150	92182K	92180-0927	AR
SHIM,T=2.163	92182L	92180-0928	AR
SHIM,T=2.175	92182M	92180-0929	AR
SHIM,T=2.188	92182N	92180-0930	AR
SHIM,T=2.200	92182O	92180-0931	AR
SHIM,T=2.213	92182P	92180-0932	AR
SHIM,T=2.225	92182Q	92180-0933	AR
SHIM,T=2.238	92182R	92180-0934	AR
SHIM,T=2.250	92182S	92180-0935	AR
SHIM,T=2.263	92182T	92180-0936	AR
SHIM,T=2.275	92182U	92180-0937	AR
SHIM,T=2.288	92182V	92180-0938	AR
SHIM,T=2.300	92182W	92180-0939	AR

VALVE-INTAKE
VALVE-INTAKE
REF #	12004
PART NUMBER
QUANTITY	8
DESTINATION
REMARKS

VALVE-EXHAUST
VALVE-EXHAUST
REF #	12005
PART NUMBER
QUANTITY	8
DESTINATION
REMARKS

RETAINER-VALVE SPRING
RETAINER-VALVE SPRING
REF #	12009
PART NUMBER
QUANTITY	16
DESTINATION
REMARKS

COLLET
COLLET
REF #	12011
PART NUMBER
QUANTITY	32
DESTINATION
REMARKS

TAPPET,D26.5
TAPPET,D26.5
REF #	12032
PART NUMBER
QUANTITY	16
DESTINATION
REMARKS

SEAT-SPRING
SEAT-SPRING
REF #	16007
PART NUMBER
QUANTITY	16
DESTINATION
REMARKS

SPRING-ENGINE VALVE,INTAKE
SPRING-ENGINE VALVE,INTAKE
REF #	49078
PART NUMBER
QUANTITY	8
DESTINATION
REMARKS

SPRING-ENGINE VALVE,EXHAUST
SPRING-ENGINE VALVE,EXHAUST
REF #	49078A
PART NUMBER
QUANTITY	8
DESTINATION
REMARKS

SEAL-OIL,VSB 4.3 7.5 5.3 8.3
SEAL-OIL,VSB 4.3 7.5 5.3 8.3
REF #	92049
PART NUMBER
QUANTITY	16
DESTINATION
REMARKS

SHIM,T=1.300
SHIM,T=1.300
REF #	92180
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.325
SHIM,T=1.325
REF #	92180A
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.350
SHIM,T=1.350
REF #	92180B
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.375
SHIM,T=1.375
REF #	92180C
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.388
SHIM,T=1.388
REF #	92180D
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.400
SHIM,T=1.400
REF #	92180E
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.413
SHIM,T=1.413
REF #	92180F
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.425
SHIM,T=1.425
REF #	92180G
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.438
SHIM,T=1.438
REF #	92180H
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.450
SHIM,T=1.450
REF #	92180I
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.463
SHIM,T=1.463
REF #	92180J
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.475
SHIM,T=1.475
REF #	92180K
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.488
SHIM,T=1.488
REF #	92180L
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.500
SHIM,T=1.500
REF #	92180M
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.513
SHIM,T=1.513
REF #	92180N
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.525
SHIM,T=1.525
REF #	92180O
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.538
SHIM,T=1.538
REF #	92180P
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.550
SHIM,T=1.550
REF #	92180Q
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.563
SHIM,T=1.563
REF #	92180R
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.575
SHIM,T=1.575
REF #	92180S
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.588
SHIM,T=1.588
REF #	92180T
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.600
SHIM,T=1.600
REF #	92180U
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.613
SHIM,T=1.613
REF #	92180V
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.625
SHIM,T=1.625
REF #	92180W
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.638
SHIM,T=1.638
REF #	92180X
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.650
SHIM,T=1.650
REF #	92180Y
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.663
SHIM,T=1.663
REF #	92180Z
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.675
SHIM,T=1.675
REF #	92181
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.688
SHIM,T=1.688
REF #	92181A
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.700
SHIM,T=1.700
REF #	92181B
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.713
SHIM,T=1.713
REF #	92181C
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.725
SHIM,T=1.725
REF #	92181D
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.738
SHIM,T=1.738
REF #	92181E
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.750
SHIM,T=1.750
REF #	92181F
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.763
SHIM,T=1.763
REF #	92181G
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.775
SHIM,T=1.775
REF #	92181H
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.788
SHIM,T=1.788
REF #	92181I
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.800
SHIM,T=1.800
REF #	92181J
PART NUMBER
QUANTITY	16
DESTINATION
REMARKS

SHIM,T=1.813
SHIM,T=1.813
REF #	92181K
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.825
SHIM,T=1.825
REF #	92181L
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.838
SHIM,T=1.838
REF #	92181M
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.850
SHIM,T=1.850
REF #	92181N
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.863
SHIM,T=1.863
REF #	92181O
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.875
SHIM,T=1.875
REF #	92181P
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.888
SHIM,T=1.888
REF #	92181Q
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.900
SHIM,T=1.900
REF #	92181R
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.913
SHIM,T=1.913
REF #	92181S
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.925
SHIM,T=1.925
REF #	92181T
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.938
SHIM,T=1.938
REF #	92181U
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.950
SHIM,T=1.950
REF #	92181V
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.963
SHIM,T=1.963
REF #	92181W
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.975
SHIM,T=1.975
REF #	92181X
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=1.988
SHIM,T=1.988
REF #	92181Y
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=2.000
SHIM,T=2.000
REF #	92181Z
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=2.013
SHIM,T=2.013
REF #	92182
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=2.025
SHIM,T=2.025
REF #	92182A
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=2.038
SHIM,T=2.038
REF #	92182B
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=2.050
SHIM,T=2.050
REF #	92182C
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=2.063
SHIM,T=2.063
REF #	92182D
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=2.075
SHIM,T=2.075
REF #	92182E
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=2.088
SHIM,T=2.088
REF #	92182F
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=2.100
SHIM,T=2.100
REF #	92182G
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=2.113
SHIM,T=2.113
REF #	92182H
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=2.125
SHIM,T=2.125
REF #	92182I
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=2.138
SHIM,T=2.138
REF #	92182J
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=2.150
SHIM,T=2.150
REF #	92182K
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=2.163
SHIM,T=2.163
REF #	92182L
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=2.175
SHIM,T=2.175
REF #	92182M
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=2.188
SHIM,T=2.188
REF #	92182N
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=2.200
SHIM,T=2.200
REF #	92182O
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=2.213
SHIM,T=2.213
REF #	92182P
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=2.225
SHIM,T=2.225
REF #	92182Q
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=2.238
SHIM,T=2.238
REF #	92182R
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=2.250
SHIM,T=2.250
REF #	92182S
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=2.263
SHIM,T=2.263
REF #	92182T
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=2.275
SHIM,T=2.275
REF #	92182U
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=2.288
SHIM,T=2.288
REF #	92182V
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

SHIM,T=2.300
SHIM,T=2.300
REF #	92182W
PART NUMBER
QUANTITY	AR
DESTINATION
REMARKS

experience

government & fleet

SHOP

Vehicle Accessories

owner center

RACING

Racing News

Team Green™

Racing Teams

Research Tools

Research

Shop

Finance

Parts Diagrams

OWNER CENTER

OWNER CENTER

Parts Diagrams

2022 NINJA H2® SX SE - Valve(s)
