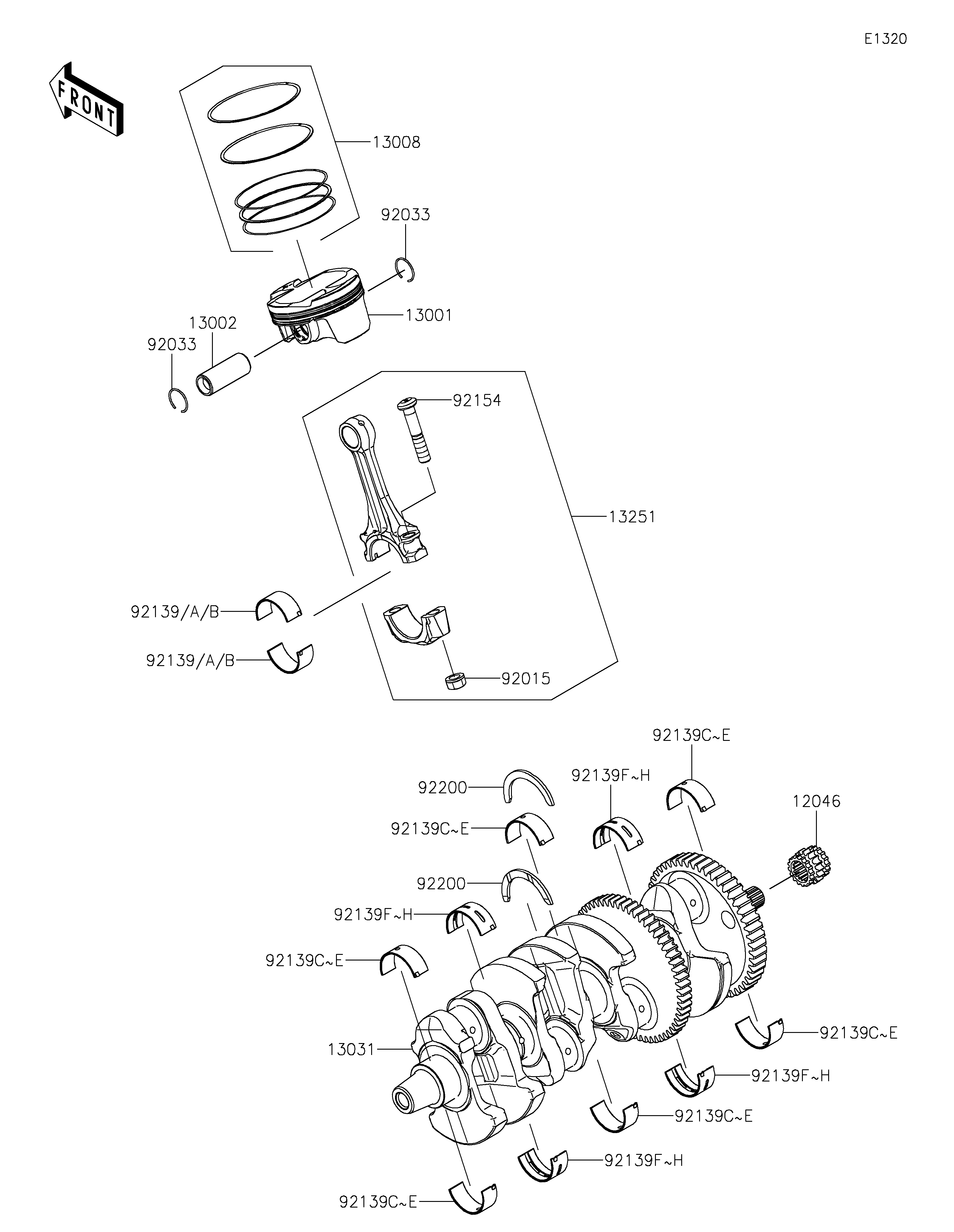

2022 NINJA H2® SX SE - Crankshaft/Piston(s)

DOWNLOAD PDF
SELECT A NEW PART
12046
13001
13002
13008
13031
13251
92015
92033
92033
92139
92139
92139A
92139A
92139B
92139B
92139C
92139C
92139C
92139C
92139C
92139C
92139D
92139D
92139D
92139D
92139D
92139D
92139E
92139E
92139E
92139E
92139E
92139E
92139F
92139F
92139F
92139F
92139G
92139G
92139G
92139G
92139H
92139H
92139H
92139H
92154
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPROCKET,16T 12046 12046-0033 1
PISTON-ENGINE 13001 13001-0794 4
PIN-PISTON 13002 13002-0043 4
RING-SET-PISTON 13008 13008-0578 4
CRANKSHAFT-COMP 13031 13031-0953 1
ROD-ASSY-CONNECTING,I 13251 13251-0740-II 4
NUT,CONNECTING ROD 92015 92015-1559 8
RING-SNAP,20.5X1.2 92033 92033-1099 8
BUSHING,CON-ROD,BLUE 92139 92139-0818 8
BUSHING,CON-ROD,BLACK 92139A 92139-0819 AR
BUSHING,CON-ROD,BROWN 92139B 92139-0820 AR
BUSHING,#1&#3&#5,YELLOW 92139C 92139-0891 6
BUSHING,#1&#3&#5,GREEN 92139D 92139-0892 AR
BUSHING,#1&#3&#5,PINK 92139E 92139-0893 AR
BUSHING,#2&#4,YELLOW 92139F 92139-0894 4
BUSHING,#2&#4,GREEN 92139G 92139-0895 AR
BUSHING,#2&#4,PINK 92139H 92139-0896 AR
BOLT,CON-ROD,9X47.5 92154 92154-3883 8
WASHER,T=2.5 92200 92200-0744 2
