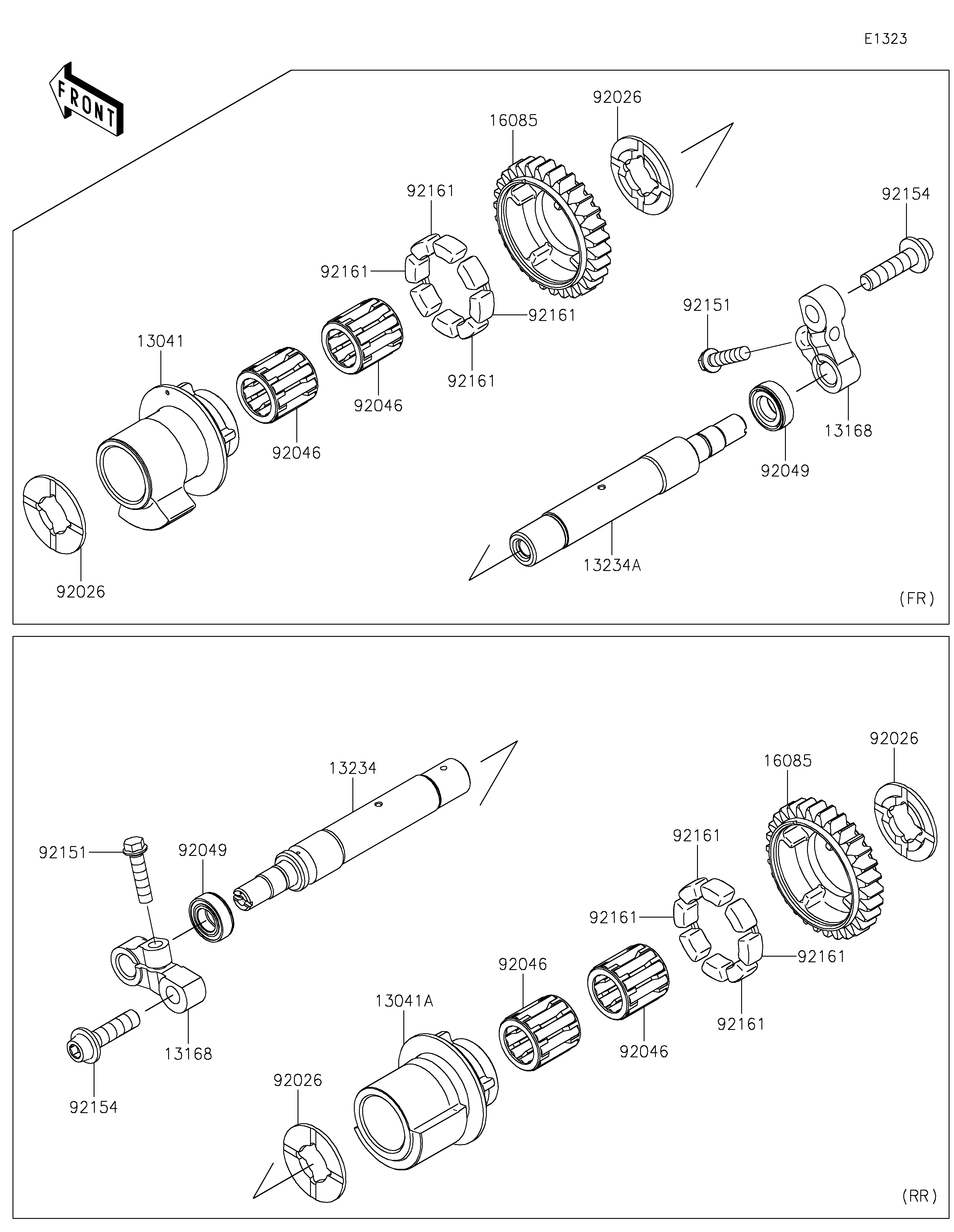

Parts Diagrams |
13041
13041A
13168
13168
13234
13234A
16085
16085
92026
92026
92026
92026
92046
92046
92046
92046
92049
92049
92151
92151
92154
92154
92161
92161
92161
92161
92161
92161
92161
92161
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BALANCER,FR | 13041 | 13041-0043 | 1 | ||
| BALANCER,RR | 13041A | 13041-0045 | 1 | ||
| LEVER,BACKLASH ADJUSTMENT | 13168 | 13168-0831 | 2 | ||
| SHAFT-COMP | 13234 | 13234-0050 | 1 | ||
| SHAFT-COMP | 13234A | 13234-0595 | 1 | ||
| GEAR,30T | 16085 | 16085-0621 | 2 | ||
| SPACER | 92026 | 92026-0730 | 4 | ||
| BEARING-NEEDLE | 92046 | 92046-1266 | 4 | ||
| SEAL-OIL | 92049 | 92049-0720 | 2 | ||
| BOLT,FLANGED-SMALL,6X25 | 92151 | 92151-1930 | 2 | ||
| BOLT,SOCKET,8X30 | 92154 | 92154-1679 | 2 | ||
| DAMPER | 92161 | 92161-1055 | 8 |
