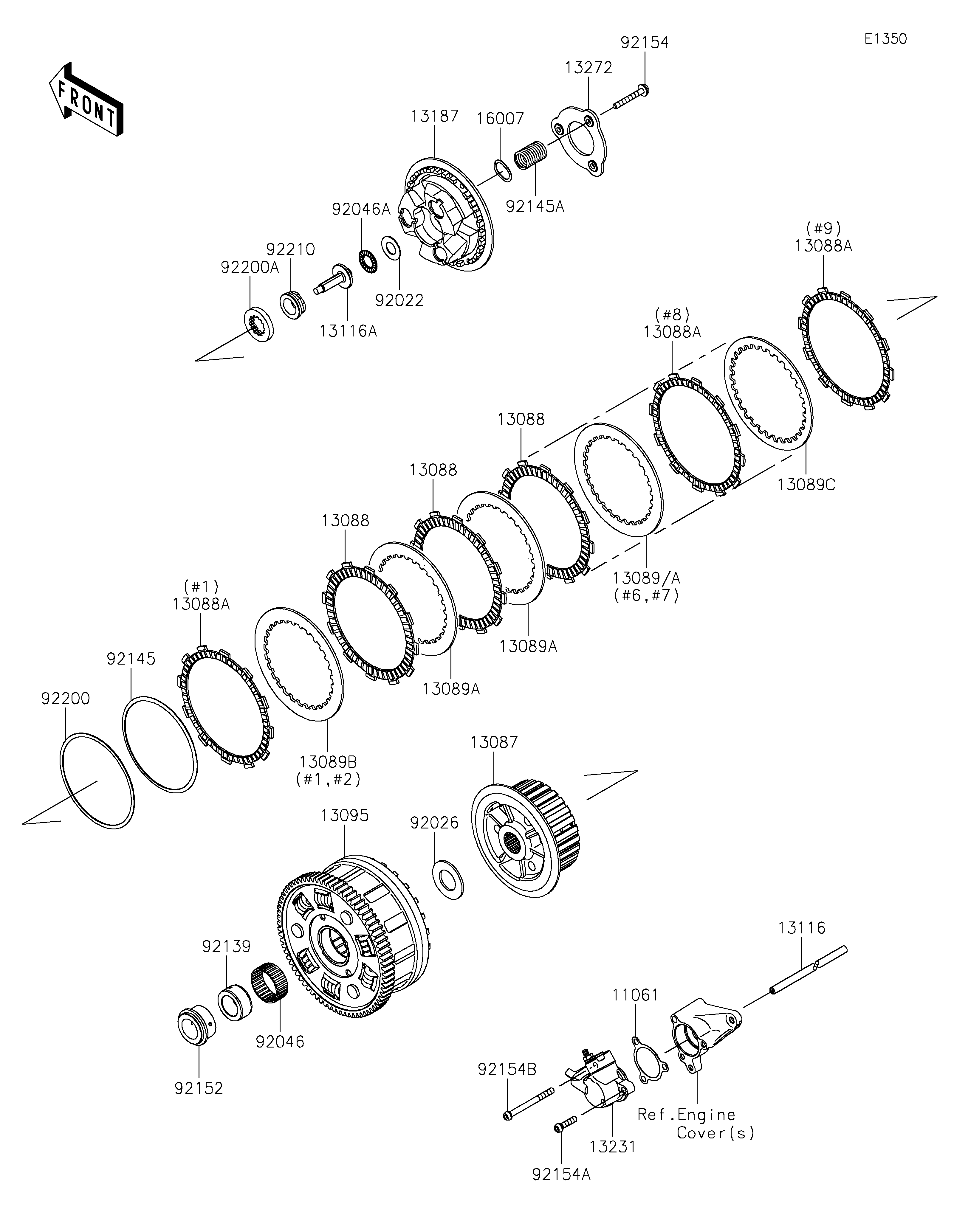

2022 NINJA H2® SX SE - Clutch

DOWNLOAD PDF
SELECT A NEW PART
11061
13087
13088
13088
13088
13088A
13088A
13088A
13089
13089A
13089A
13089A
13089B
13089C
13095
13116
13116A
13187
13231
13272
16007
92022
92026
92046
92046A
92139
92145
92145A
92152
92154
92154A
92154B
92200
92200A
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,CLUTCH RELEASE 11061 11061-1259 1
HUB-CLUTCH 13087 13087-0591 1
PLATE-FRICTION 13088 13088-0575 6
PLATE-FRICTION 13088A 13088-0576 3
PLATE-CLUTCH,T=2.3 13089 13089-0027 AR
PLATE-CLUTCH,T=2.6 13089A 13089-0028 5
PLATE-CLUTCH,T=2.9 13089B 13089-0030 2
PLATE-CLUTCH,T=2.6 13089C 13089-0036 1
HOUSING-COMP-CLUTCH 13095 13095-0602 1
ROD-PUSH 13116 13116-0747 1
ROD-PUSH 13116A 13116-0750 1
PLATE-CLUTCH OPERATING 13187 13187-0034 1
RELEASE-ASSY-CLUTCH 13231 13231-0009 1
PLATE 13272 13272-1303 1
SEAT-SPRING 16007 16007-0736 3
WASHER,15.1X29X1.0 92022 92022-1463 1
SPACER,25.5X47X2.5 92026 92026-022 1
BEARING-NEEDLE 92046 92046-0041 1
BEARING-NEEDLE,AXK1102 92046A 92046-1052 1
BUSHING,25X38X17.3 92139 92139-0304 1
SPRING 92145 92145-1250 1
SPRING 92145A 92145-1700 3
COLLAR 92152 92152-0866 1
BOLT,FLANGED,6X45 92154 92154-1909 3
BOLT,SOCKET,6X25 92154A 92154-2793 2
BOLT,SOCKET,6X70 92154B 92154-2794 1
WASHER,T=1.2 92200 92200-1580 1
WASHER,TOOTHED,38.5X25X6.3 92200A 92200-1833 1
NUT 92210 92210-0397 1
