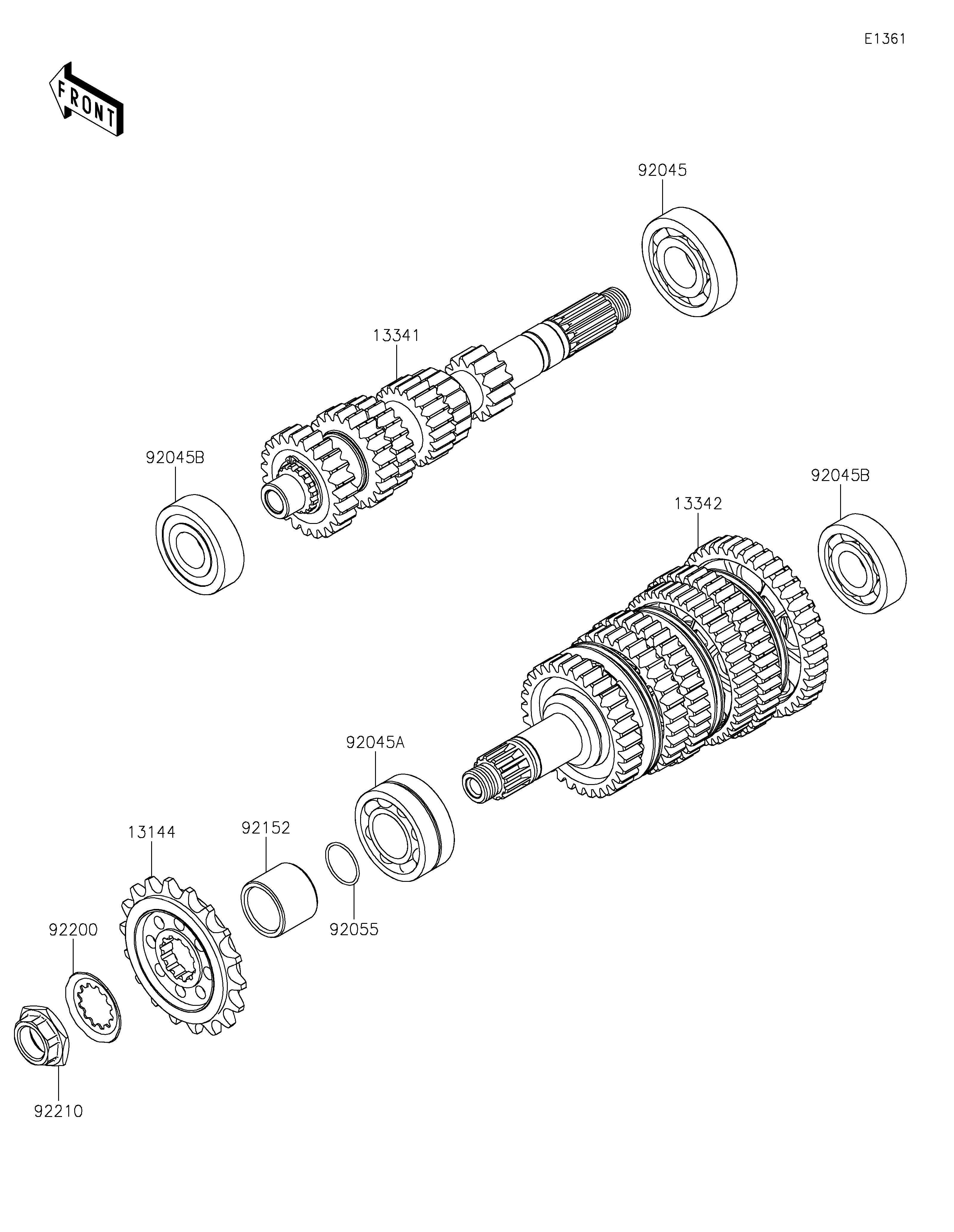

13144
13341
13342
92045
92045A
92045B
92045B
92055
92152
92200
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPROCKET-OUTPUT,18T 13144 13144-0575 1
TRANSMISSION-ASSY INPUT 13341 13341-0693 1
TRANSMISSION-ASSY OUTPUT 13342 13342-0705 1
BEARING-BALL,830045-5SH2 92045 92045-0047 1
BEARING-BALL,DAC2857NSSH6CS9 92045A 92045-0049 1
BEARING-BALL,63/22LU 92045B 92045-0156 2
RING-O,23.5X1.5 92055 92055-0823 1
COLLAR,27.5X35X27.7 92152 92152-1954 1
WASHER,23.9X45X1.0 92200 92200-0260 1
NUT,20MM 92210 92210-0942 1
