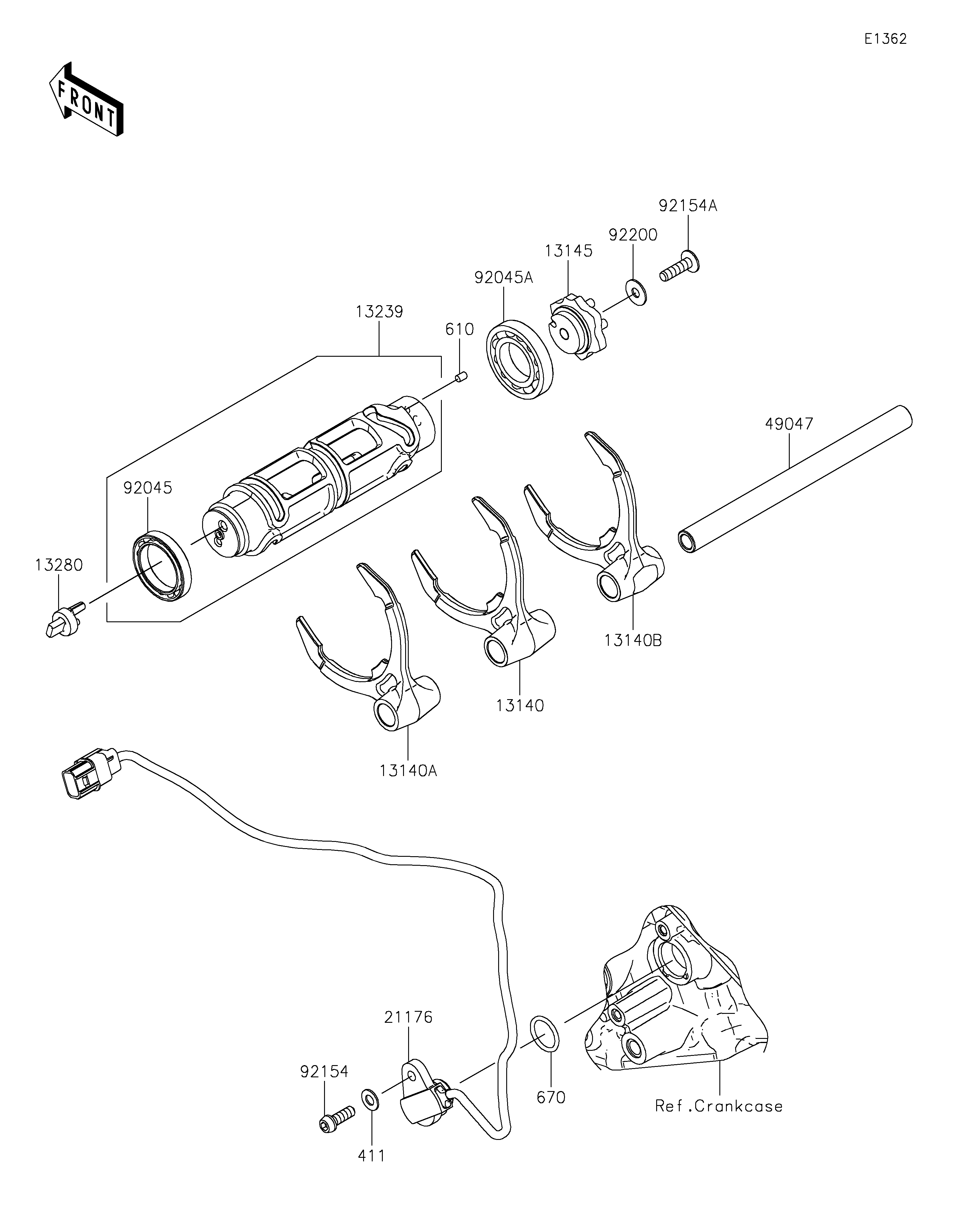

2022 NINJA H2® SX SE - Gear Change Drum/Shift Fork(s)

13140
13140A
13140B
13145
13239
13280
21176
49047
92045
92045A
92154
92154A
92200
411
610
670
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FORK-SHIFT,3RD&4TH 13140 13140-0645 1
FORK-SHIFT,5TH&6TH 13140A 13140-0646 1
FORK-SHIFT,1ST&2ND 13140B 13140-0649 1
CAM-CHANGE DRUM 13145 13145-0572 1
DRUM-ASSY-CHANGE 13239 13239-0605 1
HOLDER 13280 13280-0964 1
SENSOR,GEAR POSITION 21176 21176-0787 1
ROD-SHIFT 49047 49047-0635 1
BEARING-BALL,6806 92045 92045-0826 1
BEARING-BALL,16005 92045A 92045-1045 1
BOLT,SOCKET,6X18 92154 92154-1455 1
BOLT,TORX,6X22 92154A 92154-2903 1
WASHER,6X16X1 92200 92200-2145 1
WASHER-PLAIN,6MM 411 411AA0600 1
ROLLER,4X6 610 610A0406 1
O RING,18MM 670 670D2018 1
