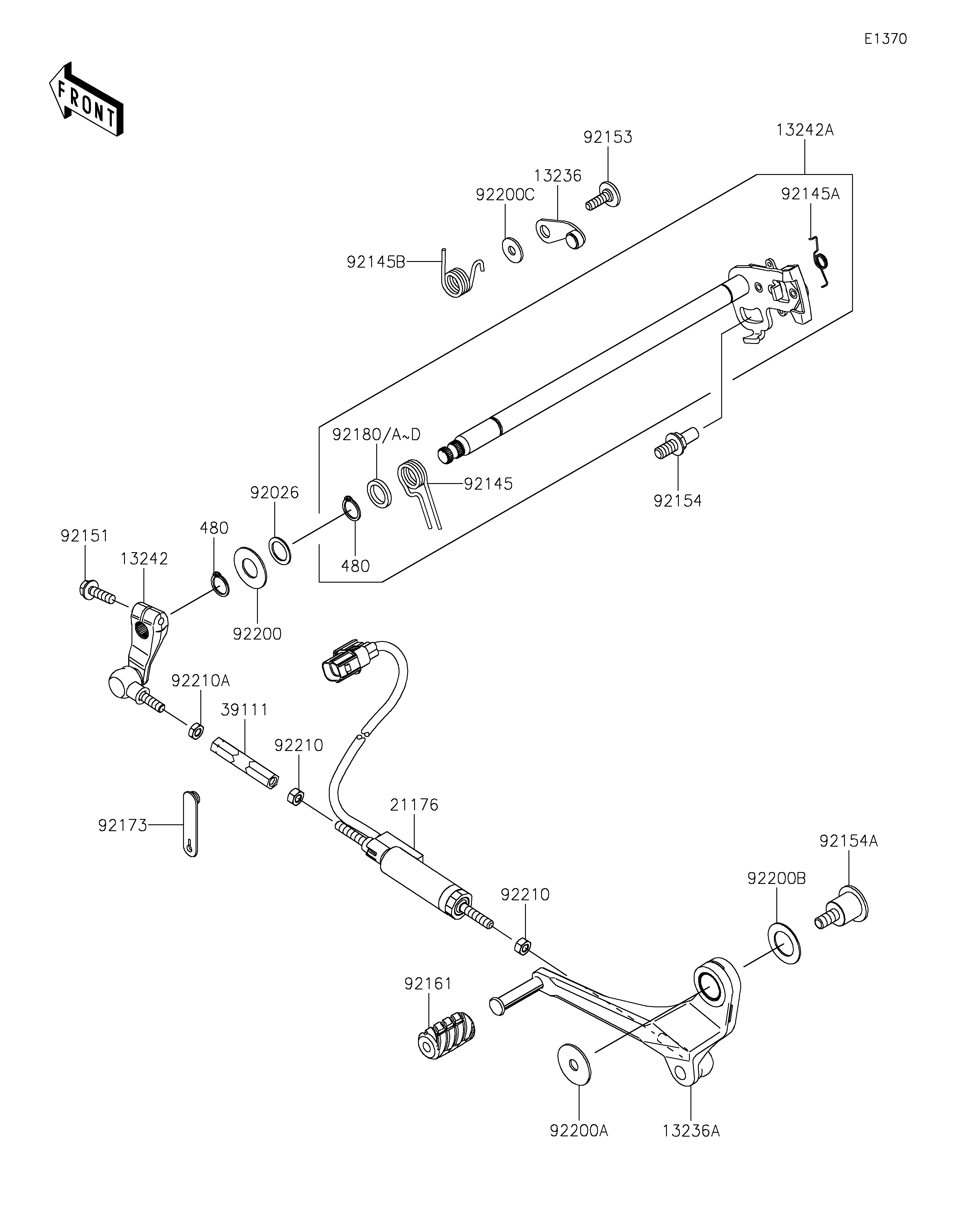

2022 NINJA H2® SX SE - Gear Change Mechanism

DOWNLOAD PDF
SELECT A NEW PART
13236
13236A
13242
13242A
21176
39111
92026
92145
92145A
92145B
92151
92153
92154
92154A
92161
92173
92180
92180A
92180B
92180C
92180D
92200
92200A
92200B
92200C
92210
92210
92210A
480
480
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-COMP,POSITION 13236 13236-0785 1
LEVER-COMP,CHANGE,PEDAL 13236A 13236-0799 1
LEVER-ASSY-CHANGE 13242 13242-0150 1
LEVER-ASSY-CHANGE 13242A 13242-0170 1
SENSOR,QUICK SHIFTER 21176 21176-0865 1
ROD-TIE 39111 39111-0356 1
SPACER,14X20X1.0 92026 92026-1534 1
SPRING,RETURN 92145 92145-0415 1
SPRING 92145A 92145-1663 1
SPRING,POSITION LEVER 92145B 92145-2227 1
BOLT,FLANGED,6X20 92151 92151-1226 1
BOLT,6X20 92153 92153-1505 1
BOLT,RETURN SPRING 92154 92154-1838 1
BOLT 92154A 92154-2822 1
DAMPER 92161 92161-1769 1
CLAMP 92173 92173-2198 1
SHIM,T=2.6 92180 92180-0963 AR
SHIM,T=2.8 92180A 92180-0964 AR
SHIM,T=3.0 92180B 92180-0965 1
SHIM,T=3.2 92180C 92180-0966 AR
SHIM,T=3.4 92180D 92180-0967 AR
WASHER 92200 92200-0265 1
WASHER,8.2X30X1.5 92200A 92200-0810 1
WASHER,18.3X30X1 92200B 92200-0812 1
WASHER,6.5X18X1.6 92200C 92200-0996 1
NUT,6MM 92210 92210-1100 2
NUT,LEFT HANDED,6MM 92210A 92210-1101 1
CIRCLIP-TYPE-C,14MM 480 480J1400 2
